A multifaceted approach utilizing pressure-sensitive adhesive (PSA) tapes is key to preventing thermal runaway in high-performance battery packs, addressing critical challenges in safety.
The demand for high-performance batteries driven by the shift toward electrification has underscored the need for effective thermal management solutions. The higher battery density and faster charging rates can exacerbate factors leading to thermal runaway—an event that poses significant risks to battery safety and effectiveness. As engineers address these challenges, they’re increasingly turning to pressure-sensitive adhesive (PSA) tapes, showcasing their potential in streamlining production and improving performance.
A Primer on Pressure-Sensitive Adhesive Tapes
PSA tapes have a well-established track record across various industries, praised for their versatility, durability, light weight, and thin profile. Their capacity for instant application—whether manually or through automated processes—offers manufacturers precious efficiency. The glue scheme embedded in these tapes can be specifically formulated to achieve desired strength and durability, capable of resisting stressors such as heat and chemicals.
These tapes can also be engineered to fulfill multiple functions; for instance, they can be combined with materials such as mica sheets for thermal insulation or dielectric films for electrical insulation. Such customizability allows engineers to address the intricate requirements of modern battery pack designs, applying them in areas such as cell connection systems, electrical insulation, gasketing, sealing, and notably, thermal management.
Thermal Management Challenges
To enhance battery safety and longevity, engineers must tackle several inherent thermal management challenges, particularly:
1. Promoting Heat Flow with Electrical Isolation
Maximizing heat transfer requires establishing a low-resistance route from battery cells to cooling components like cold plates. However, this must occur without compromising the electrical isolation of high-voltage cells, as arcing could lead to fires. Balancing thermal conductivity and dielectric strength is critical for successful design.
2. Isolating Cells During Thermal Runaway
Modern battery packs leave little room for effective physical barriers between cells, complicating the isolation process of compromised cells. Innovative materials are needed to slow or prevent heat transfer long enough for safety systems to activate, minimizing widespread damage.
3. Managing Vented Gases and Flames
Cell failure often leads to increased internal pressure, causing hot gases and flames to vent. Proper management of these situations is essential to prevent escalation to other cells and avoid catastrophic outcomes. This requirement mandates the use of flame-resistant barriers that facilitate controlled pressure relief while protecting surrounding components.
A Multi-Pronged Approach for Prevention and Mitigation
Addressing these challenges requires a multifaceted thermal management strategy that enhances heat transfer, isolates components, contains runaway situations, and manages vented gases effectively:
1. Enhancing Heat Transfer While Ensuring Electrical Isolation
The Avery Dennison Volt Tough™ tape products exemplify effective solutions, featuring dielectric film carriers and acrylic adhesives ideal for bonding between cells, modules, and cooling elements. Utilizing thinner dielectric PSA tapes compared to traditional thermosetting coatings not only maintains necessary dielectric strength but also significantly enhances thermal transfer efficiency—offering a 66% reduction in conductive thermal resistance, thus facilitating faster heat transfer during high-demand charging scenarios.
2. Creating Effective Barriers to Mitigate Thermal Runaway

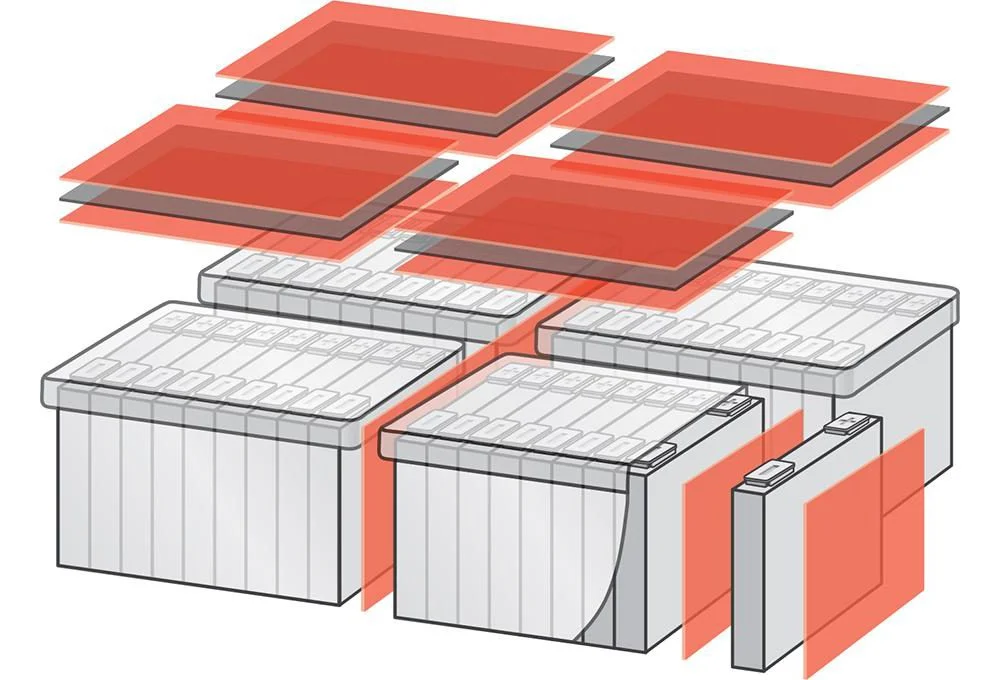

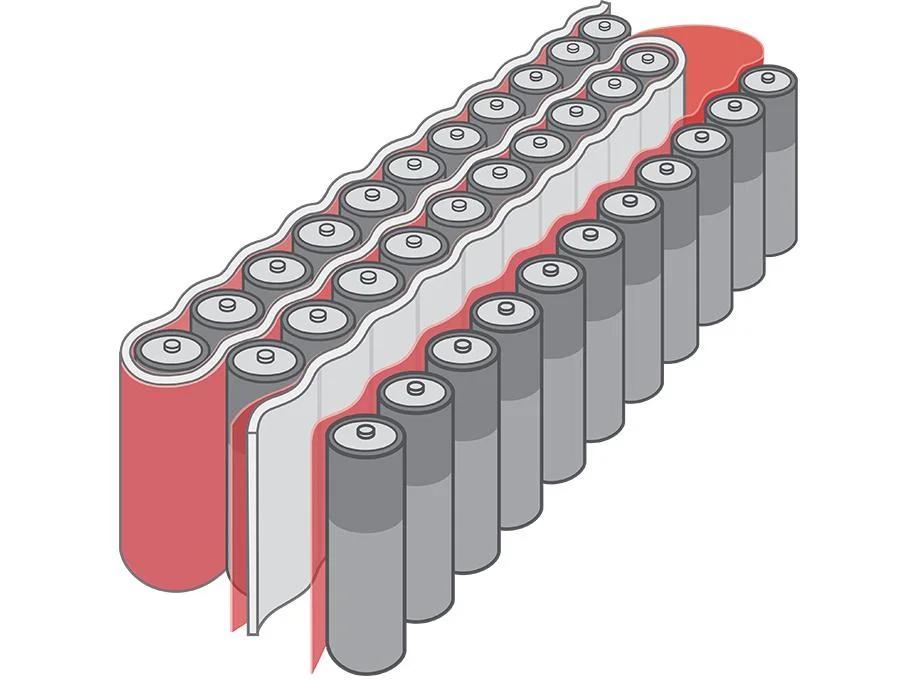

PSA tapes engineered with low thermal conductivity can encapsulate insulative materials such as mica or aerogel, forming a robust barrier that balances insulation and mechanical strength. Specialized adhesive products from Avery Dennison are designed to endure high temperatures and enable fast assembly, further streamlining production without compromising performance.
3. Strategically Managing Vented Gases and Flames

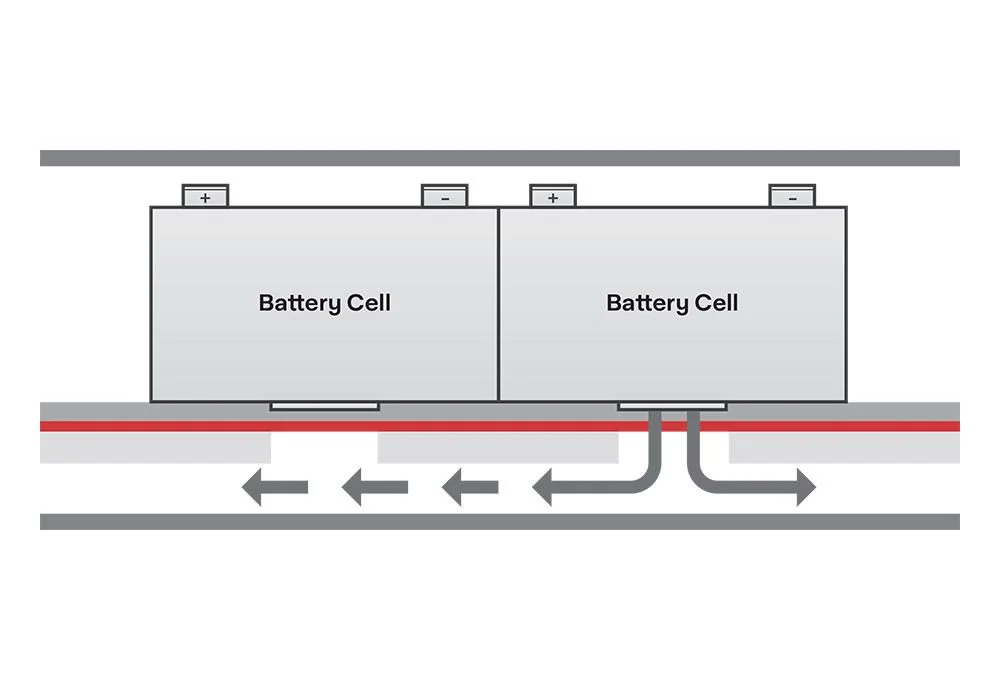

Avery Dennison’s anisotropic venting tapes provide an effective solution for managing cell failure. These tapes are adhered to vent ports, designed with flame-retardant properties and tailored burst responses—allowing gases and flames to escape in a controlled manner while protecting surrounding cells from potential ignition.
Comparative Assessment of Battery Chemistries
It's vital to optimize tape performance based on the thermodynamic behaviors of different battery chemistries. For instance:
- Nickel Manganese Cobalt (NMC): NMC batteries exhibit lower thermal stability and can undergo thermal runaway at more moderate temperatures. Venting challenges include channeling flames and managing high-velocity explosions, with tapes like Avery Dennison ES 3505 facilitating effective heat management.
- Lithium Iron Phosphate (LFP): In contrast, LFP batteries display greater thermal stability and do not release oxygen during failure. Their venting strategies must focus on quickly exhausting combustable gases while using lightweight, pressure-actuated valves to manage the less aggressive ejection of materials.
Partnering with Avery Dennison
Avery Dennison provides an extensive array of PSA tape products complemented by industry expertise aimed at creating bespoke thermal management solutions for battery manufacturers. By addressing the common challenges engineers face, including flammability reduction, dielectric strength improvement, and assembly optimization, Avery Dennison helps to mitigate the inherent risks of battery design.
Conclusion
The prevention and mitigation of thermal runaway involve complex engineering solutions that cannot be addressed with a singular approach. A holistic strategy incorporating customized PSA tapes offers a path forward in enhancing battery safety, efficiency, and longevity, paving the way for the next generation of electric vehicles.
For more information on advanced thermal management strategies and specific solutions tailored to your battery design needs, reach out directly to Max VanRaaphorst or visit Avery Dennison's site.
