In Ernest Hemingway's novel The Sun Also Rises, the path to bankruptcy is described as unfolding “gradually, then suddenly,” a sentiment that resonates with my recent experience of needing to replace the entire wiring harness in my 1978 Datsun 280Z.
The ordeal began innocently with the loss of my turn signals two years ago. At first, I thought it was just a minor issue related to the clock spring in the steering column since the fuse appeared intact. I filed it away in my mental list of repairs to be addressed "someday."
The next year, I lost power to the heater blower motor, and soon the four-way flashers and windshield wipers followed suit. Despite the fuses and relays remaining in seemingly good condition, I passed it off as just wear and tear after decades of service. Since none of these issues hindered my primary use of the car for track driving, they remained on my 'someday' repairs list while I prioritized upgrades like replacing the fuel tank and installing a roll bar.
As many classic car owners know, ignoring small problems usually leads to larger issues down the line. This truth came crashing down in April on my way home from the shop with the roll bar in tow. After 45 minutes of stable highway driving, my Z's straight-six engine began to misfire, and the voltmeter registered zero for the first time. Shortly after, I lost all power, coasting into an empty parking lot.
Following a call to Andrew Grubb, the owner of AGM Performance, we suspected the alternator had failed. However, while waiting for a flatbed truck, I started connecting the dots between my electrical woes and decided to return to the city for a better inspection before potentially swapping out the alternator.
Upon further diagnosis, the true problem became apparent: my entire wiring harness was failing, and I would need to replace it entirely. This shift from a suspected simple fix to a complete overhaul felt daunting.
Why Wiring Harness Replacement is Daunting
The daunting aspect of replacing a wiring harness comes down to labor. In the early days of carbureted vehicles, electrical systems relied on simple circuits for basics like lights and ignition, making repairs less cumbersome. However, today’s cars, with the inclusion of electric fuel pumps, power windows, and other electronic features, present a spiderweb of connections requiring considerable effort to navigate.

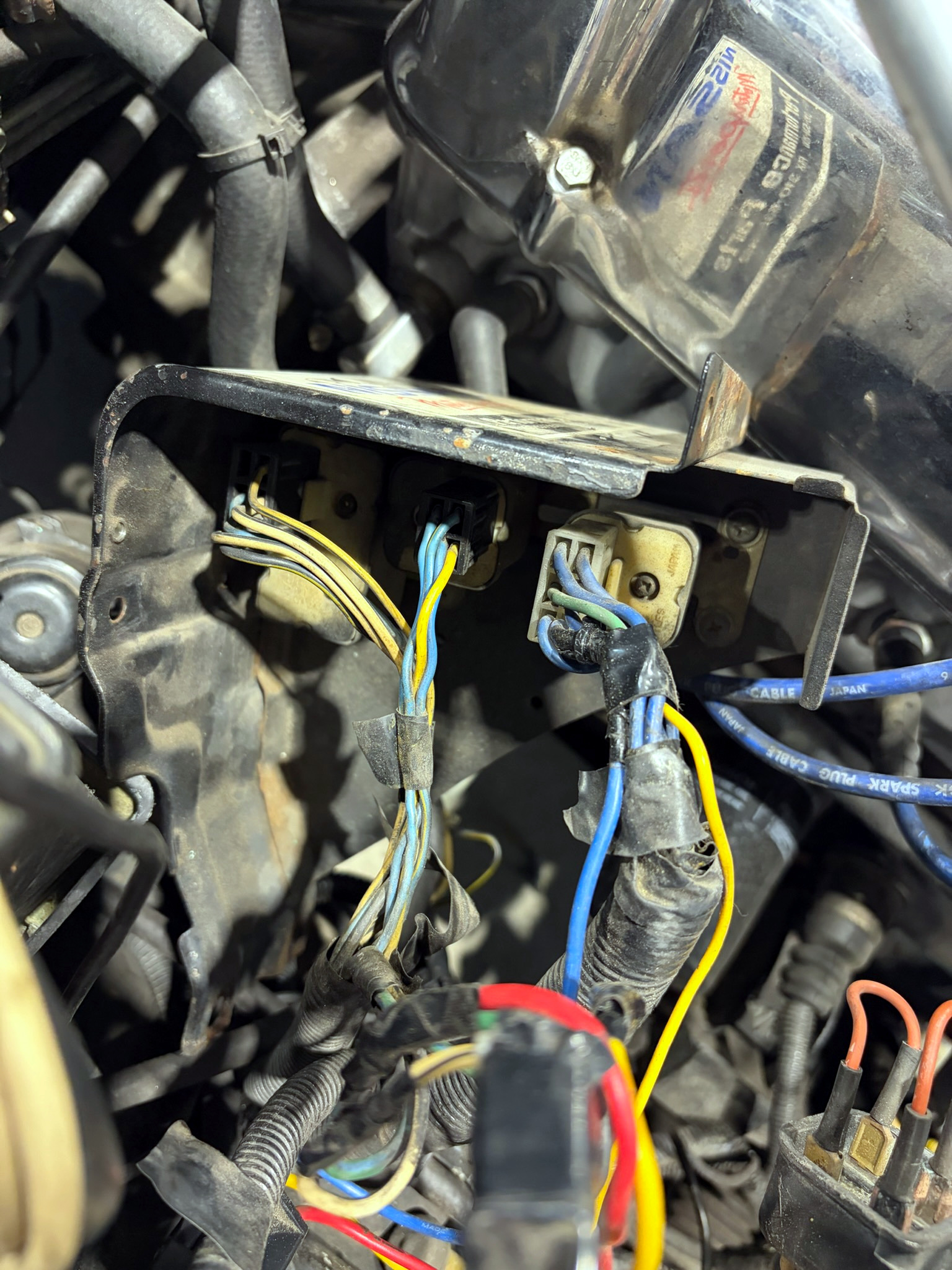

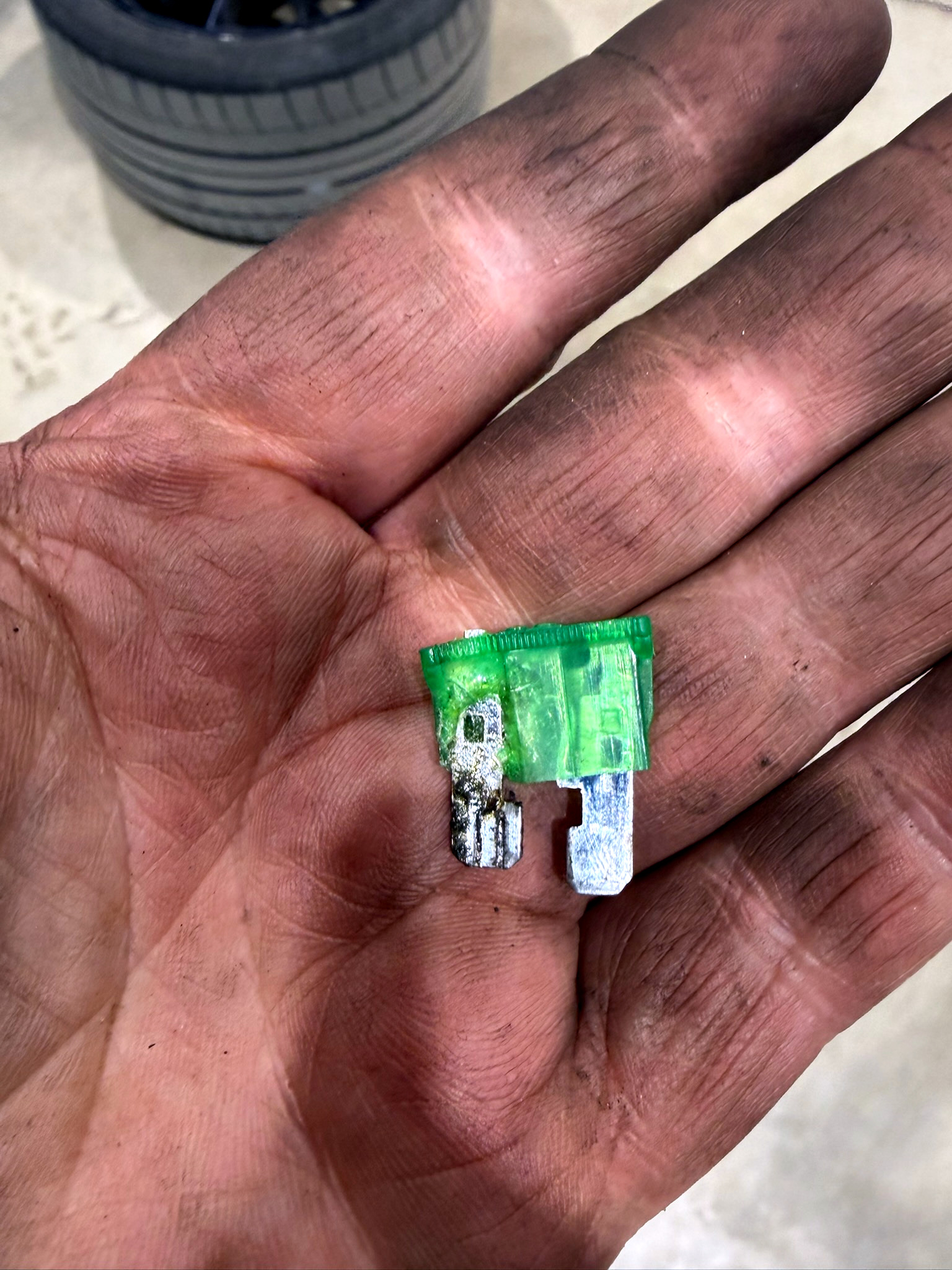

While my Datsun's vintage placed it at a confusing crossroads—having a computer-controlled engine without many modern interior amenities—the process of tracing the faulty connections proved time-consuming. I discovered that what seemed like functional fuses were receiving no power at all, leading to the conclusion that very little electricity was effectively making its way through the harness.
Faced with the overwhelming number of faults, I opted to replace rather than repair the wiring harness; an approach that seemed more practical for the long-term reliability of the vehicle.
Finding a Suitable Replacement
As many classic car owners can relate, sourcing replacement parts can be a significant challenge. In my case, no factory or aftermarket wiring harness for my specific Datsun model was available, a common issue for classic car enthusiasts. This lack of availability left me with limited options: I could search for components from other models, look for used parts, or fabricate a new harness entirely.
Given that modifying another model's harness would involve a complicated detective effort, I ruled that out quickly. Searching for a used harness didn’t seem ideal either, since the oldest secondhand options were nearly 50 years old and likely susceptible to similar deterioration as my original.

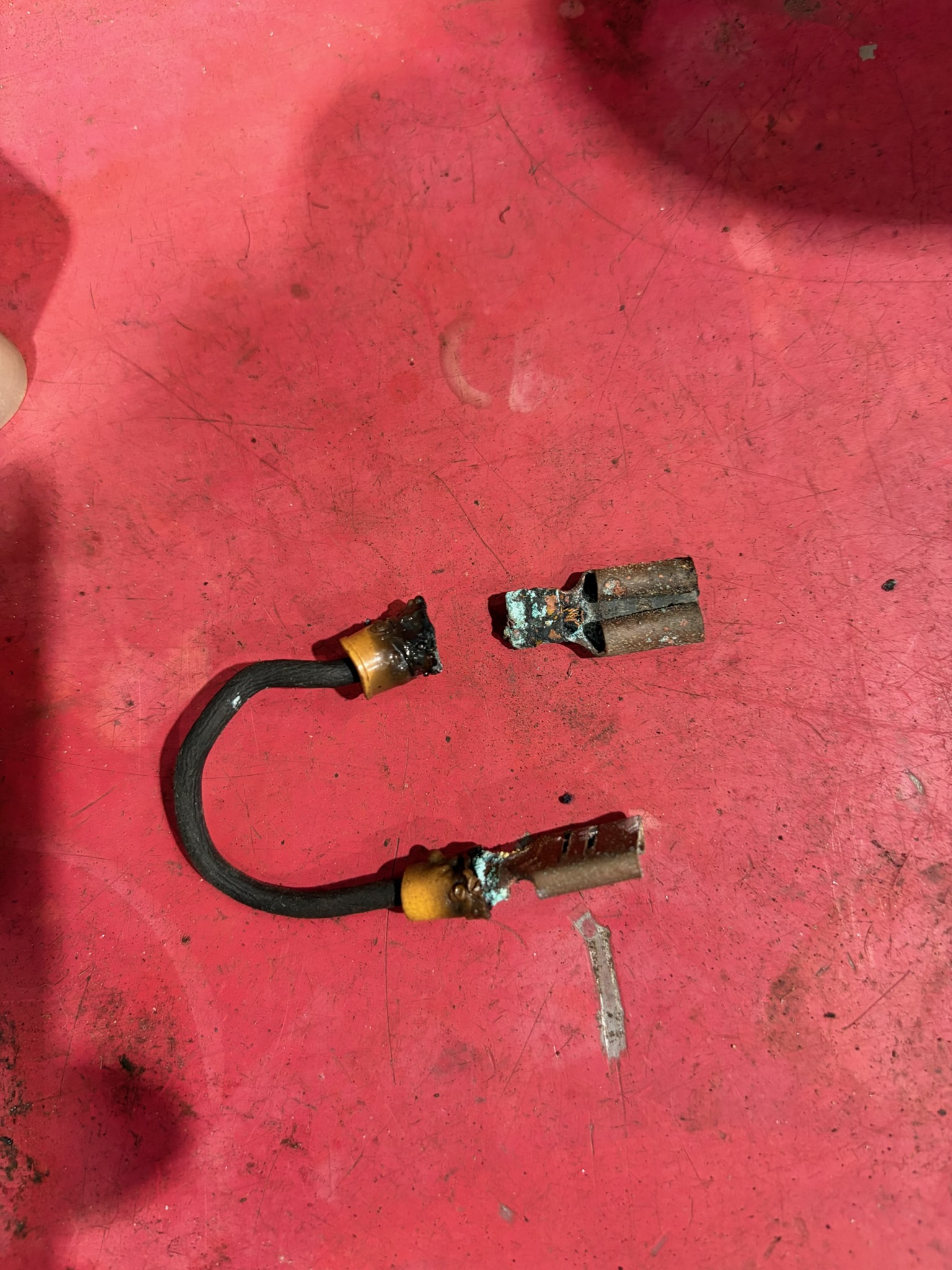

The decline of a wiring harness often results from heat exposure, moisture, and mechanical wear, which all contribute to fragility over time. The uncertainty of a used harness potentially failing seemed unwise. Thus, I searched for an alternative that balanced affordability with reliability—this led me to Godzilla Raceworks.

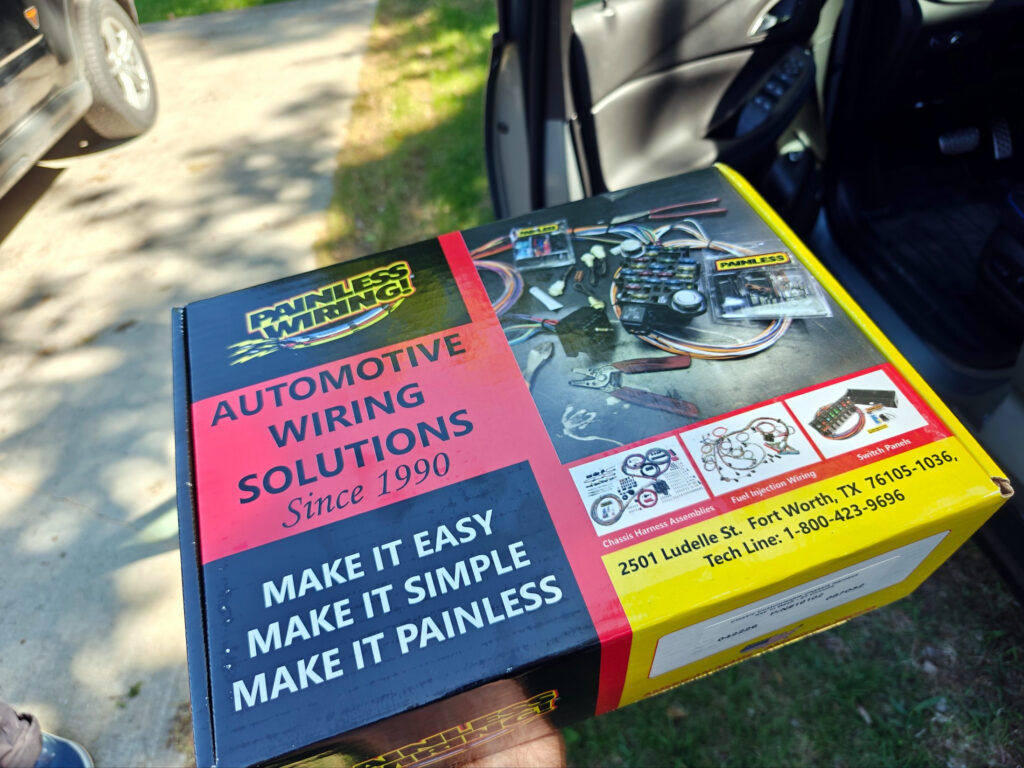

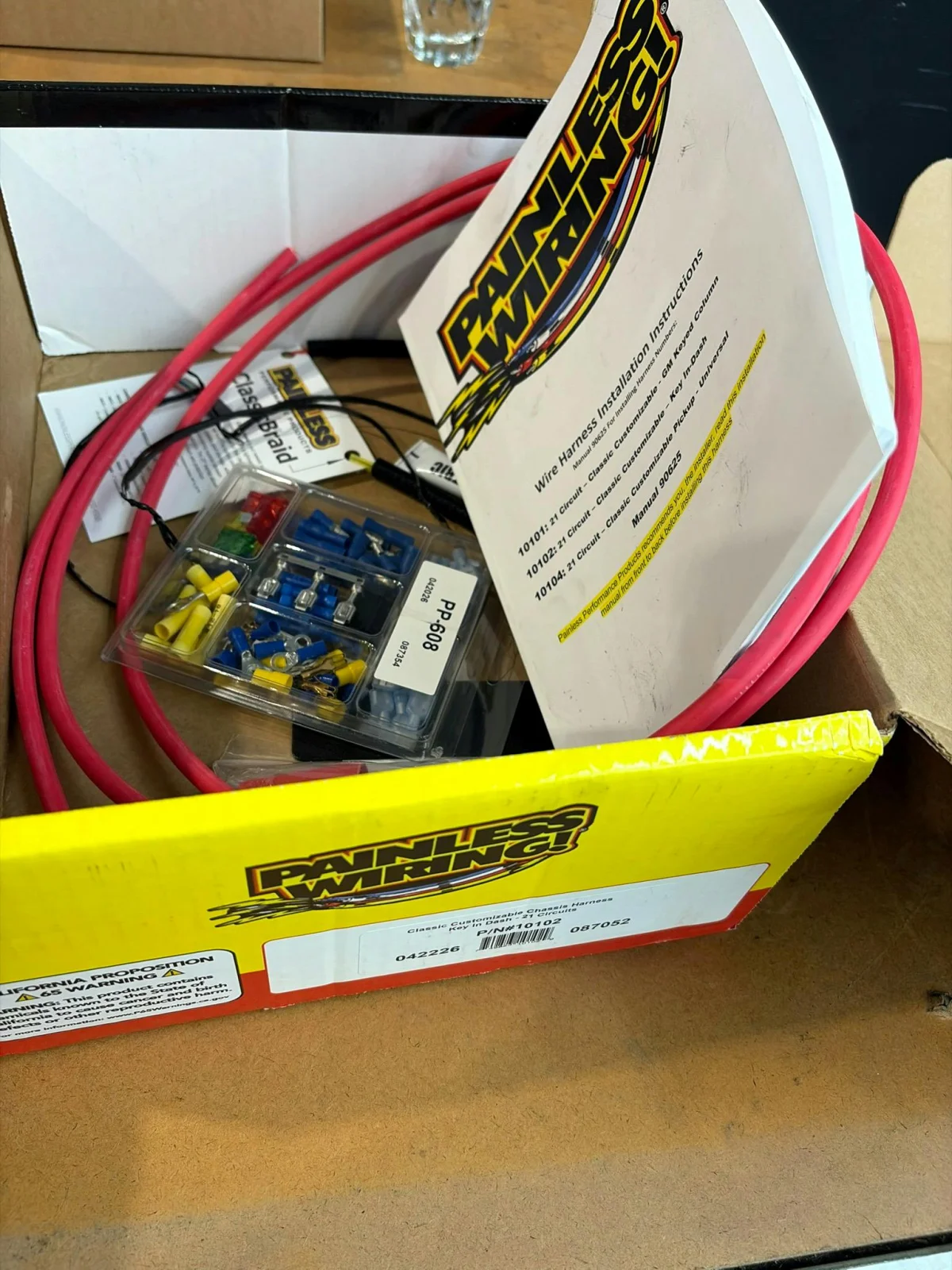

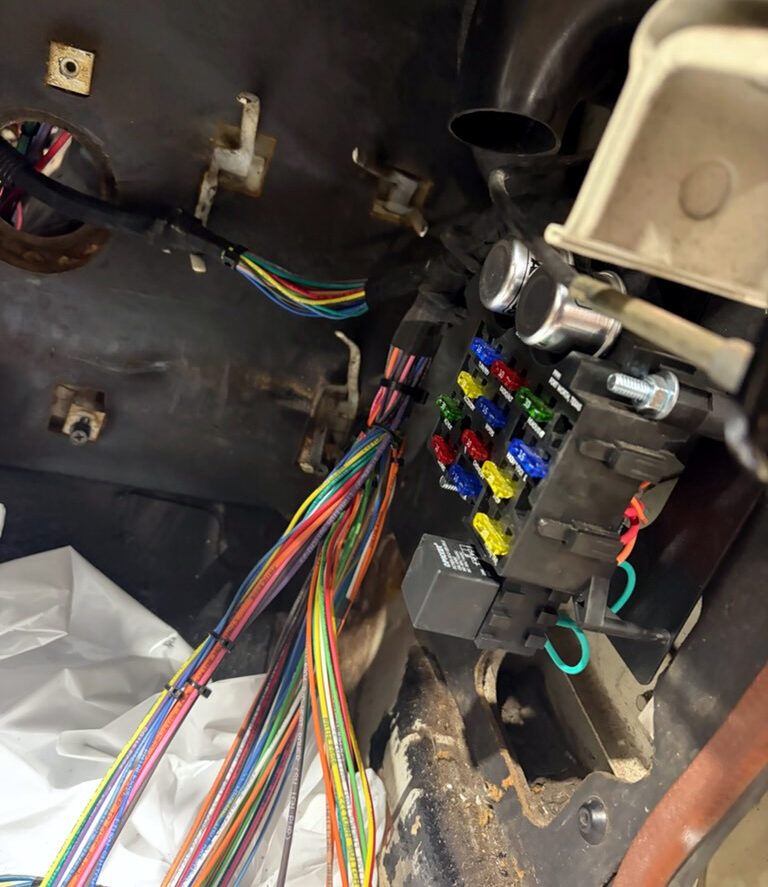

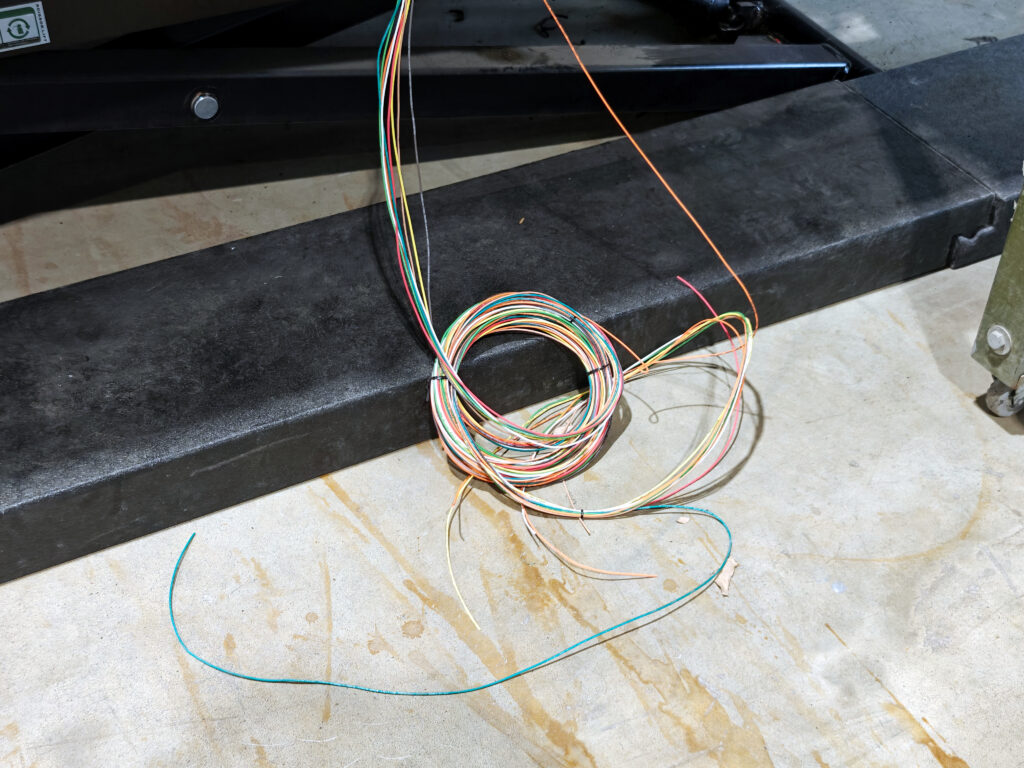

Godzilla provides universal wiring harnesses designed for the S30 Datsun Z models, which are produced by Painless, a reputable name in automotive wiring. They offer options with 21 and 28 circuits, packaged and labeled to facilitate easier installation while requiring adaptability to the original wiring scheme.
These harnesses meet my needs, covering everything apart from the fuel and engine wiring, which would have to be custom-fabricated as needed. I opted for the 21-circuit model since I have no plans for adding electrical accessories in the future.
The Installation Challenge

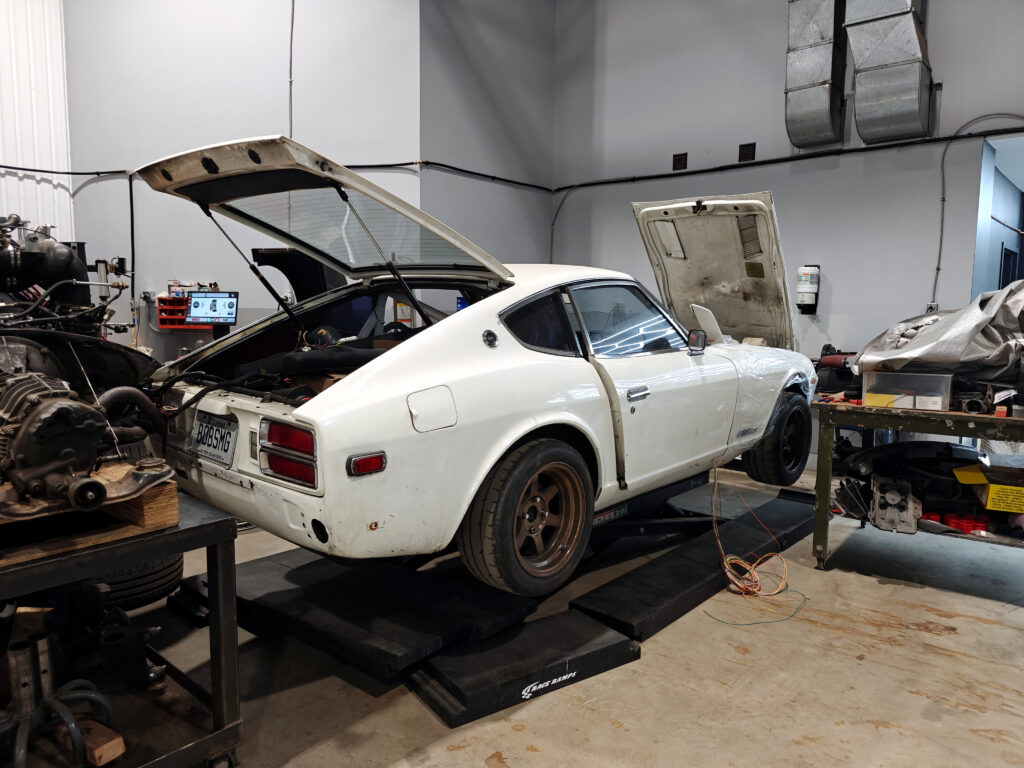

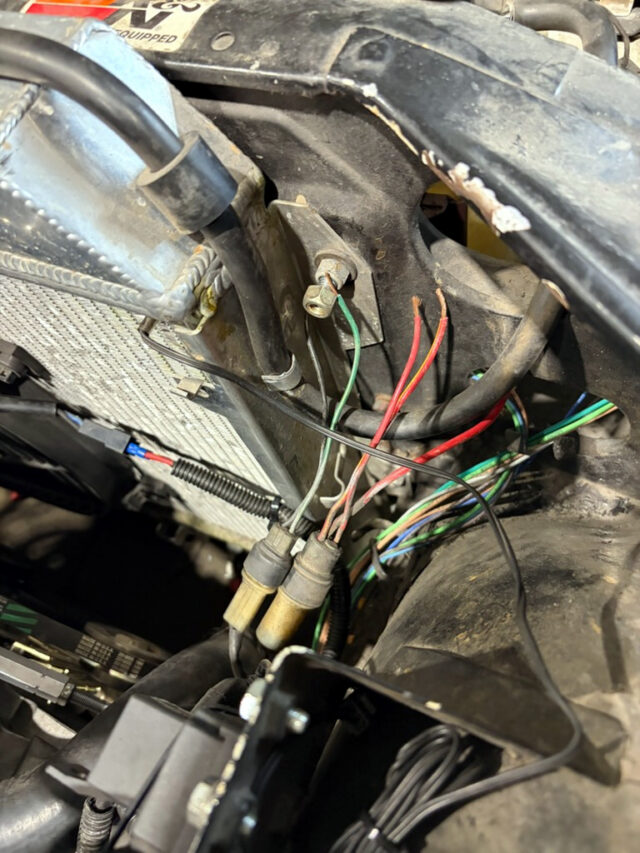

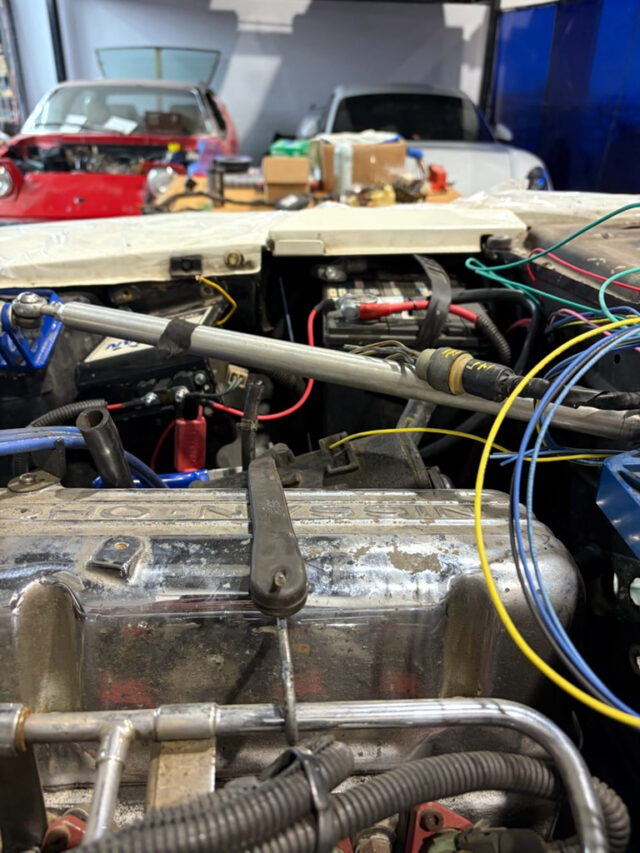

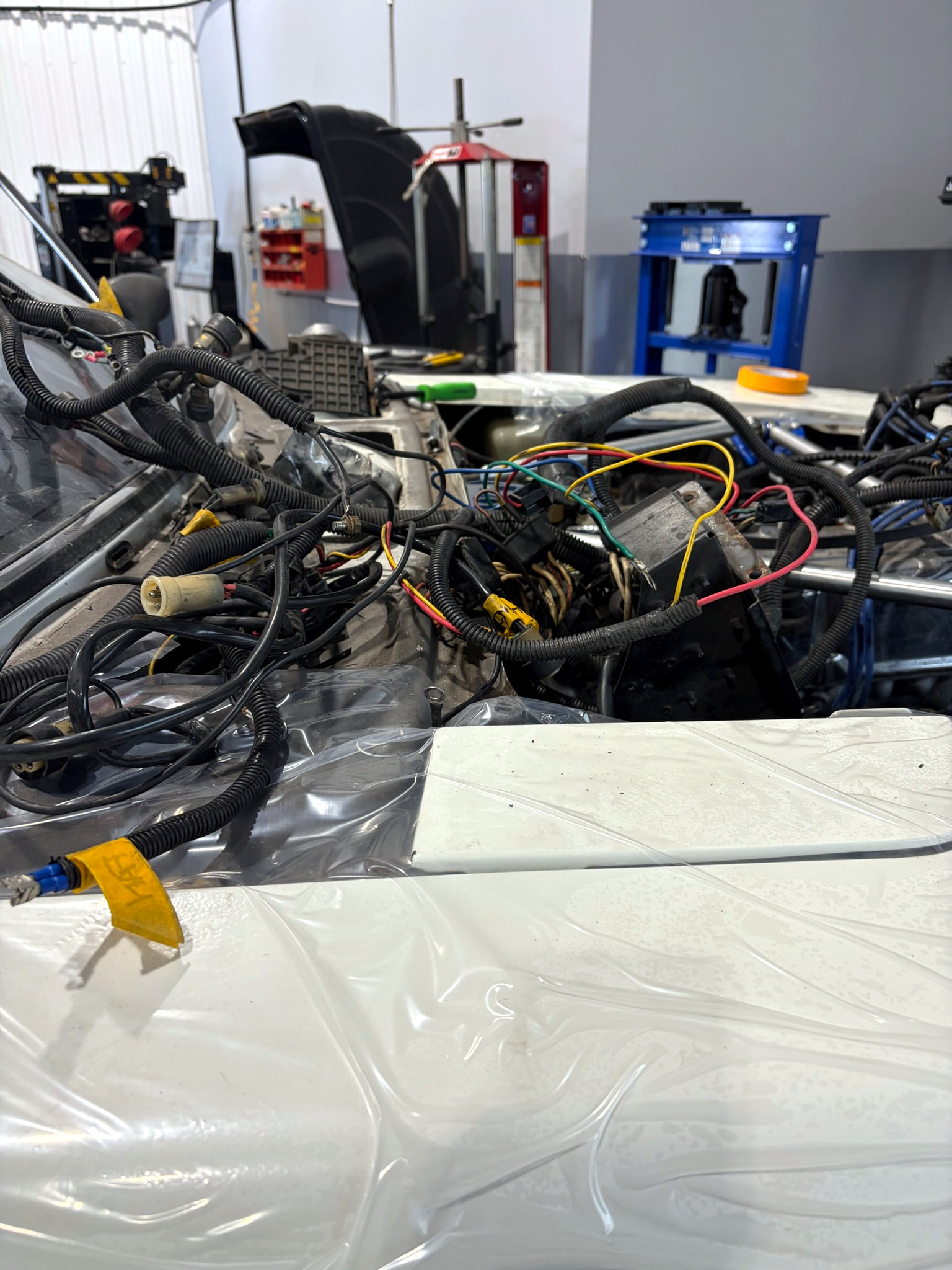

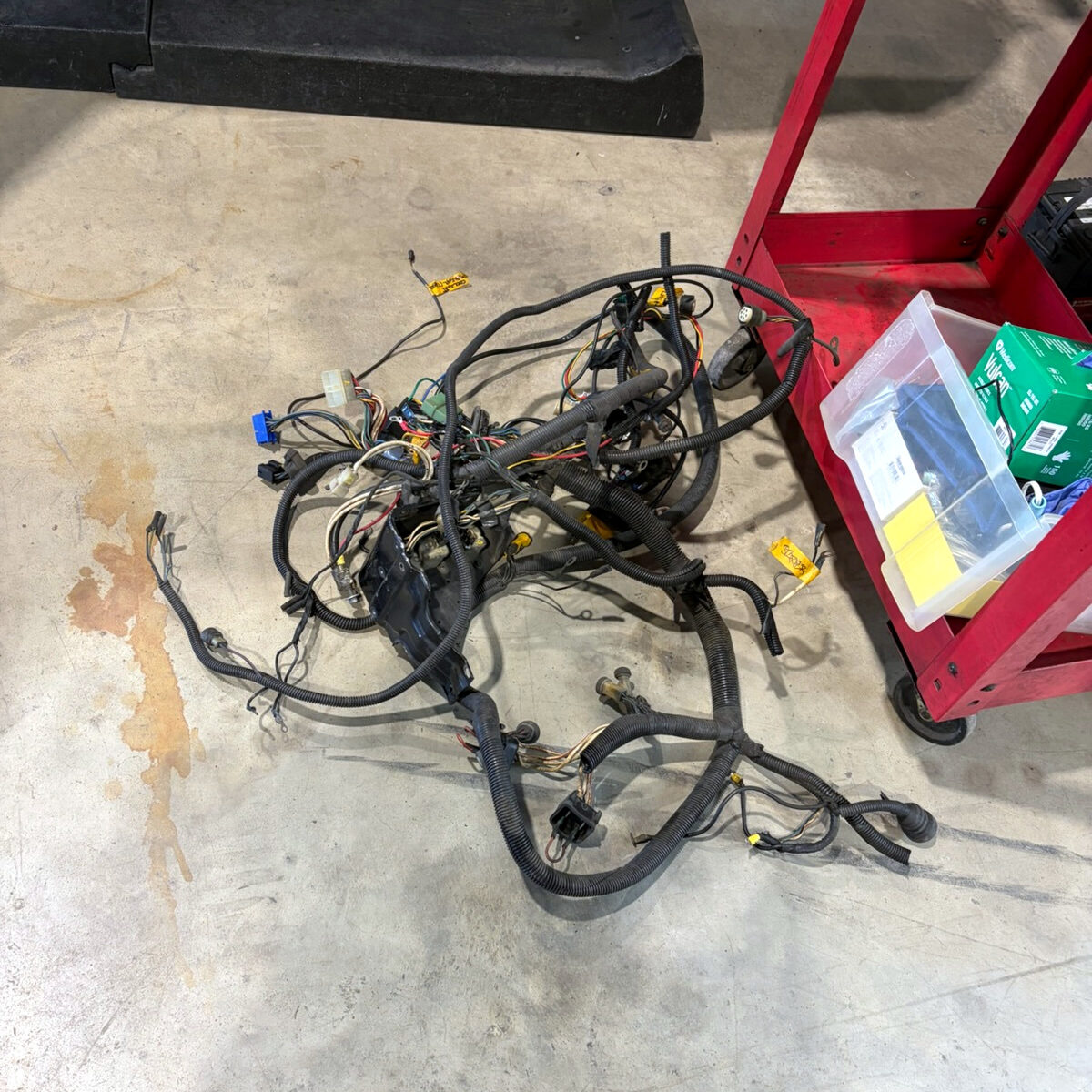

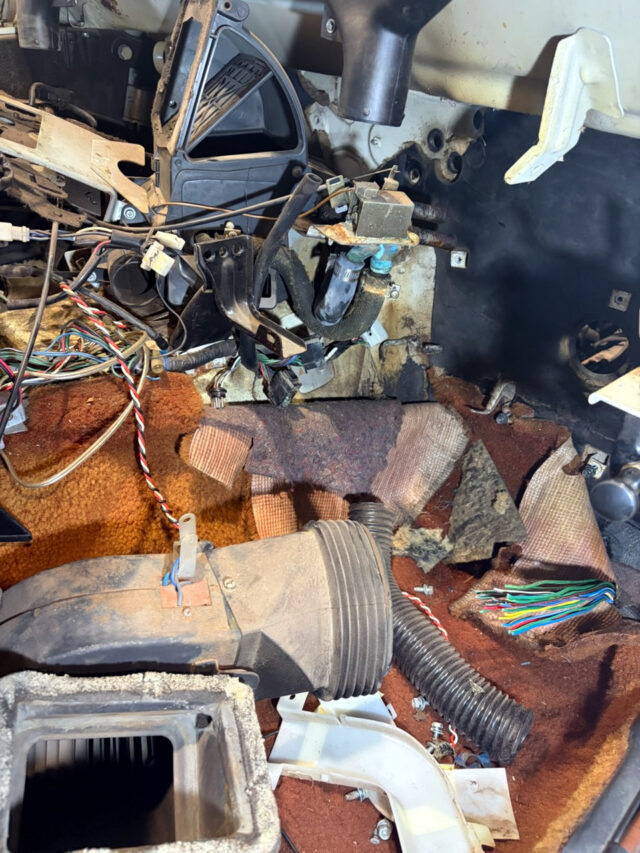

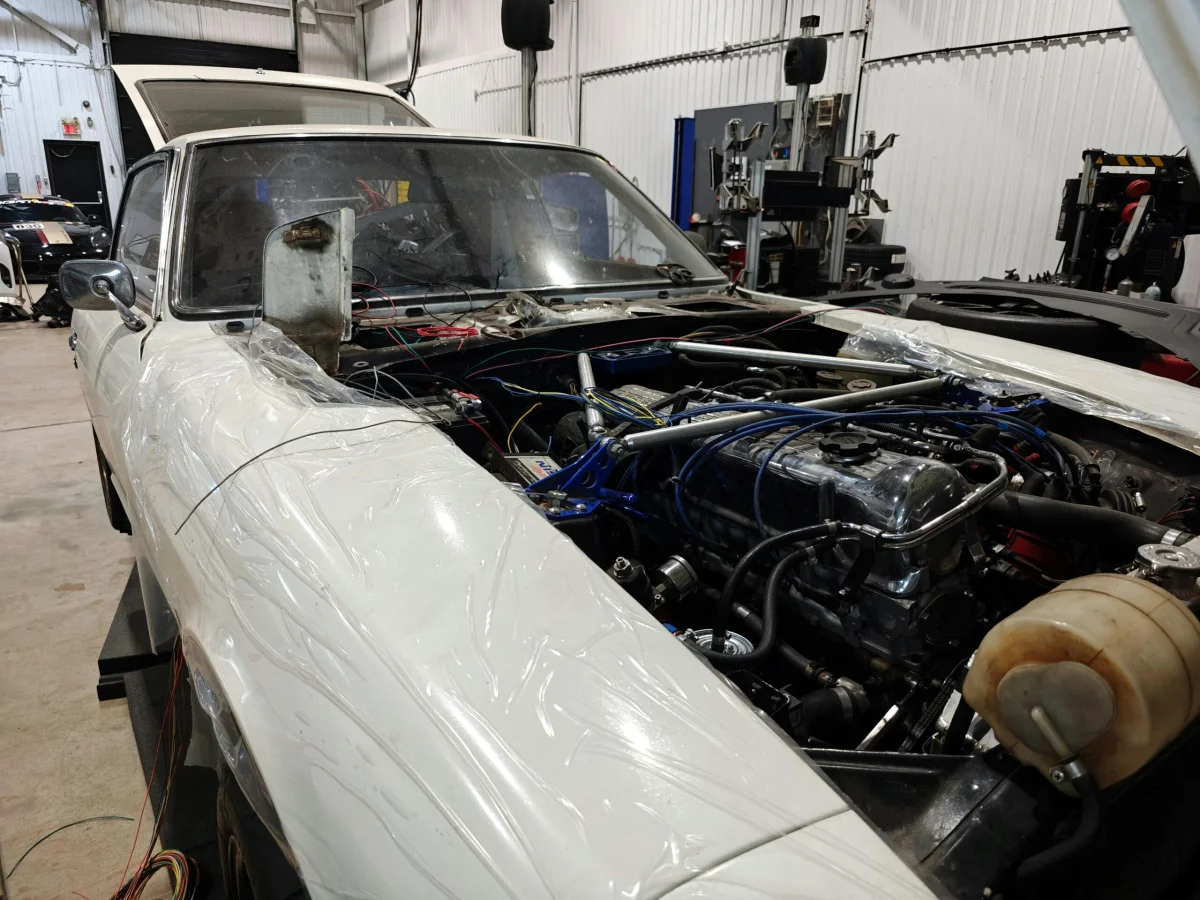

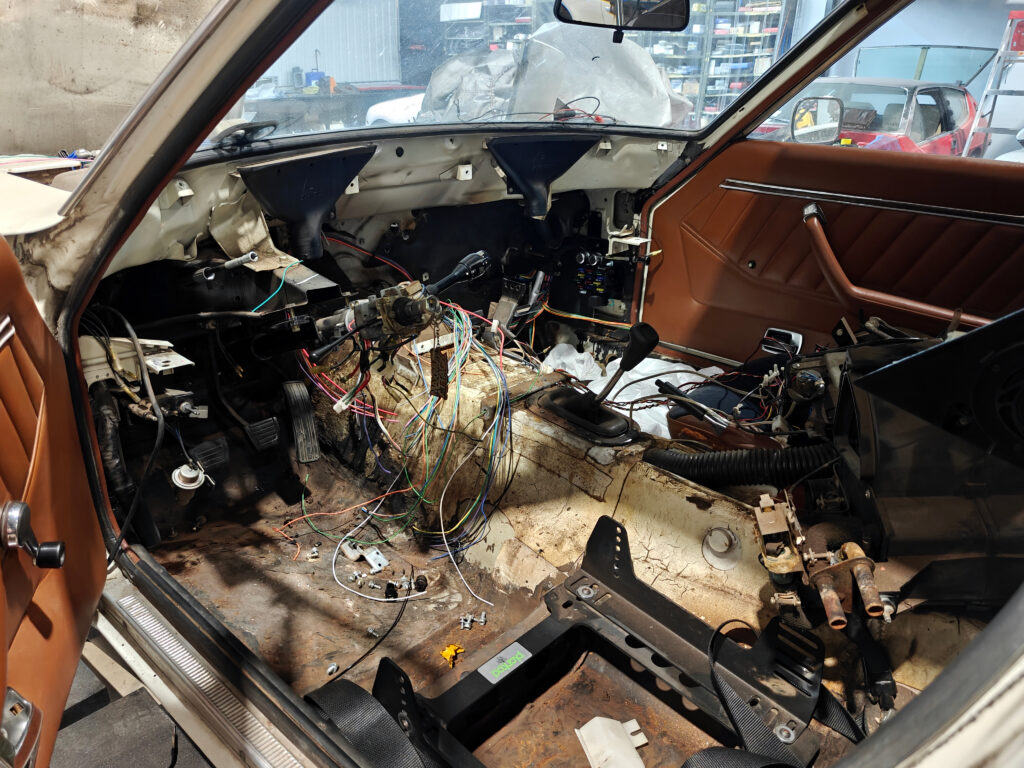

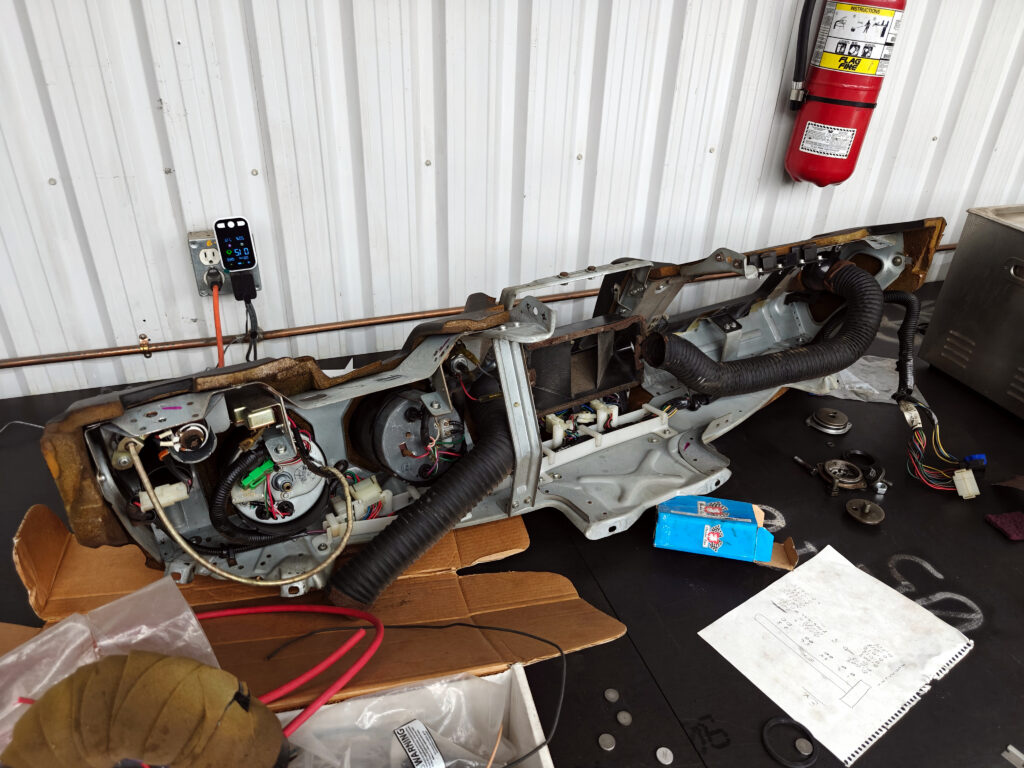

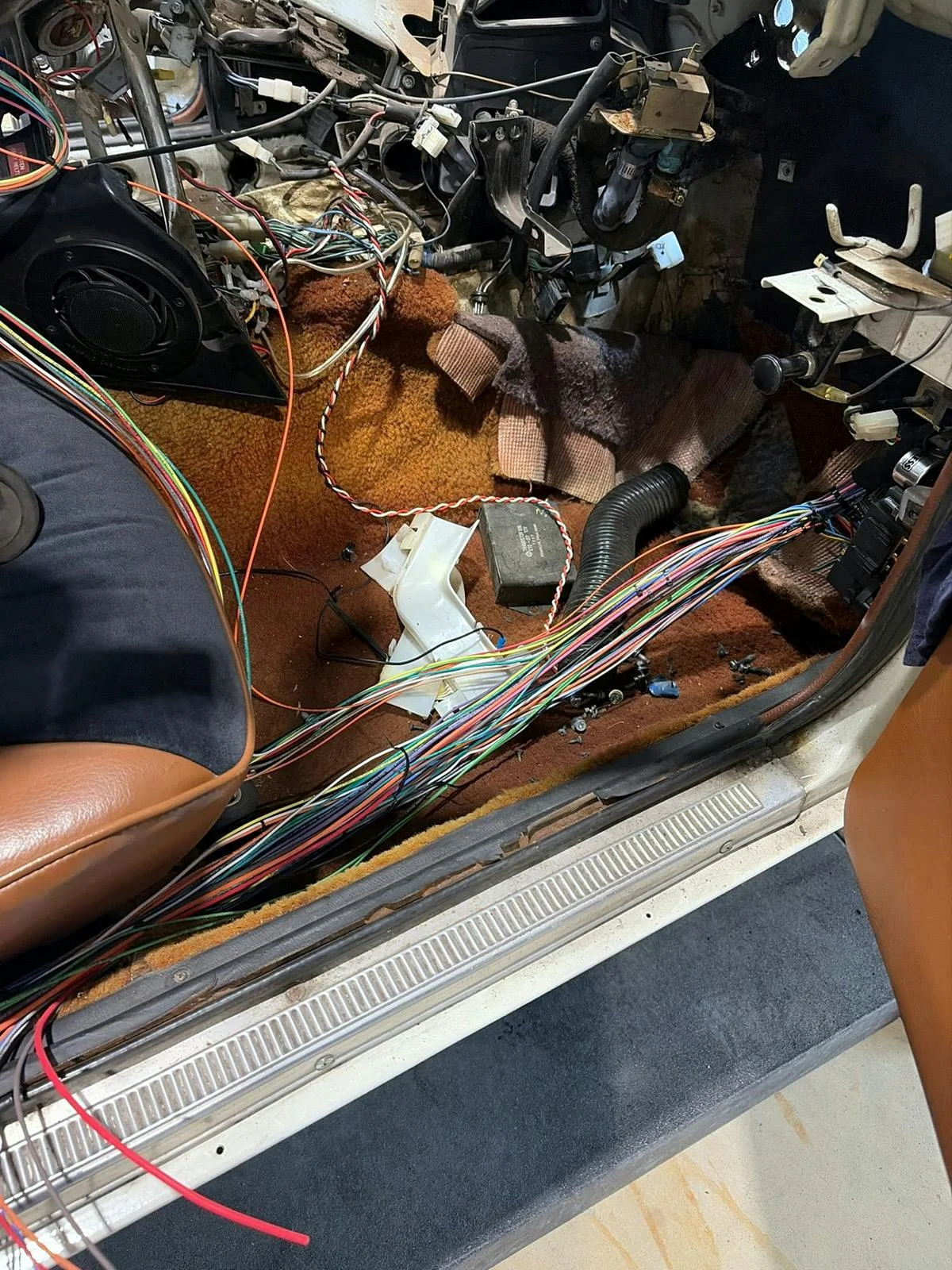

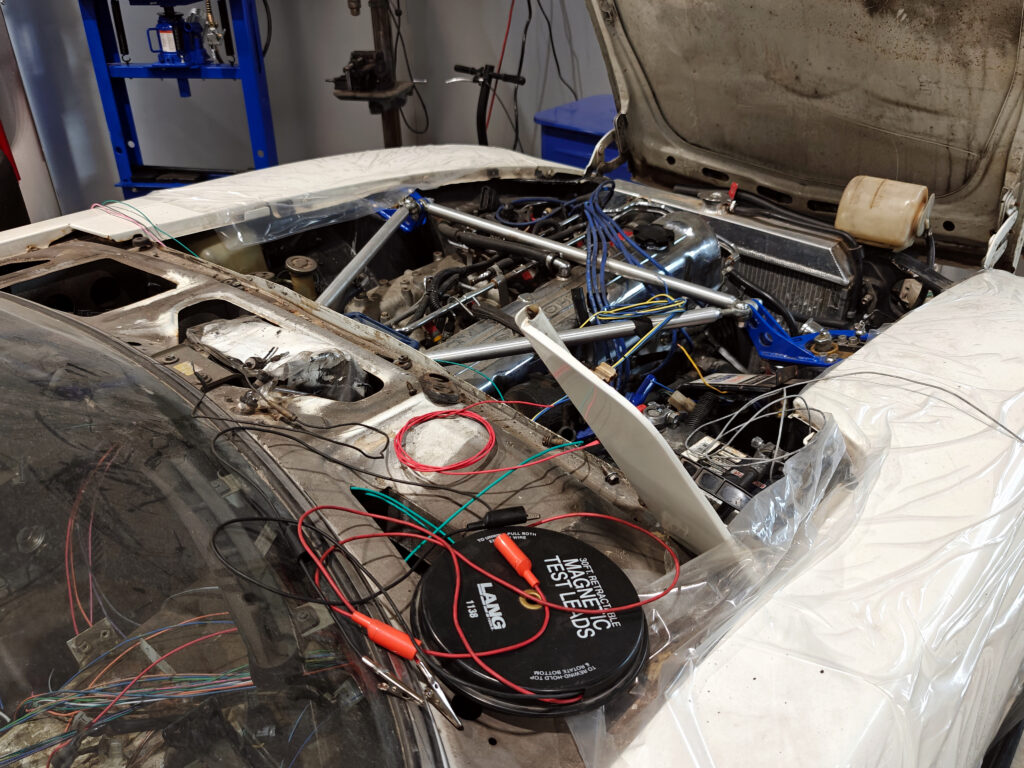

Despite the promise of a new wiring harness, the installation at AGM Performance wasn’t devoid of complications. Along with removing the old harness and integrating the new one, we encountered discrepancies between my Datsun’s actual electrical system and the provided wiring diagrams.

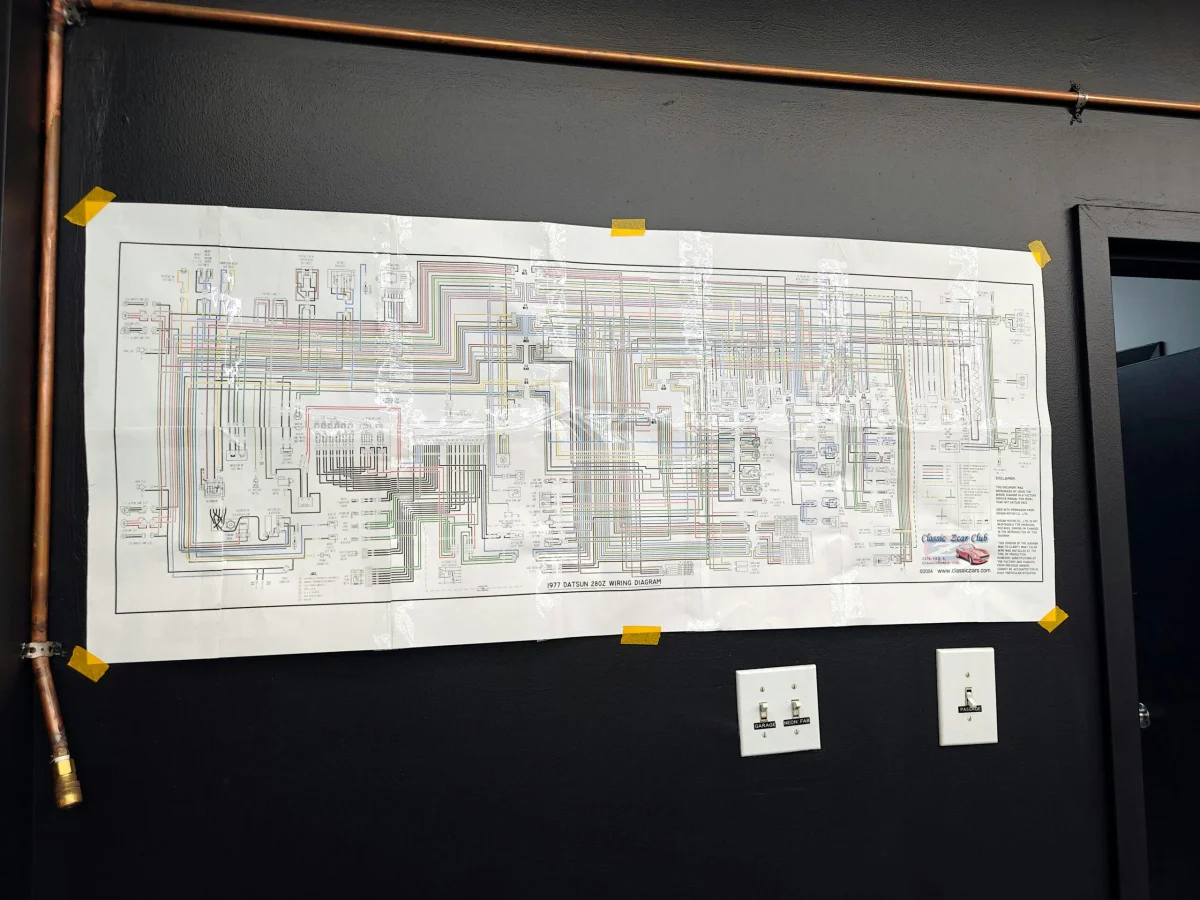

As it turns out, the 1978 models produced early in the year share more similarities with the 1977 models than with later 1978 versions. This revelation necessitated further research to locate the correct documentation.
Although the undertaking was time-consuming, it wasn’t without its silver linings. I seized the occasion to replace the original wiper motor with a newer Acura unit, which offers better reliability. Furthermore, a GM ignition system was installed, simplifying future sourcing for parts.
Learnt Lessons
The most significant lesson learned through this process is to address small electrical issues promptly before they escalate into larger problems. If I had been more attentive to my Datsun’s electrical system as troubles arose, I could’ve potentially managed repairs on my own schedule instead of rushing through a costly shop visit.
Ultimately, opting for a new harness instead of gambling on uncertain used parts proved wise. While modern classics might offer better secondhand options, those with limited parts availability may find it a losing gamble to rely on aging wiring. Conducting thorough research and possibly consulting with other Datsun enthusiasts can aid in navigating specific details for your project.
Regardless of the challenges, the reward of enjoying an old car, now equipped with a reliable wiring harness, outweighs the difficulties faced during the repair. Building reliability and safety into a classic restoration is always warranted, even if the wallet takes a hit.
