This article details the restoration of a Chevrolet 427 big-block engine, uncovering its origins and rebuilding process for a classic Camaro project.
Chevrolet's legendary 427 engines have long been a point of reverence among Camaro enthusiasts. These powerhouses, although not officially sanctioned for F-bodies during the 1960s, helped create iconic street and racing cars. Mechanics like Bill Thomas and Dick Harrell forged a legacy by dropping 425-horsepower L72s into early Camaros, creating machines that are still celebrated today. However, my journey with the 427 engine began quite differently—a dusty barn find instead of a polished showroom.
A Search for Power
Project Cheap Camaro came without an engine, requiring me to fill the void that would ideally be occupied by a roaring big-block. Originally, the Camaro was likely a small-block car, possibly featuring the reliable 327 paired with a four-speed transmission. As I aimed to transform this project into something truly powerful and distinctive, I set my sights on finding a suitable big-block engine. The quest took me to rural Oregon, where I uncovered a trove of automotive treasures tucked away in a sagging three-story barn.

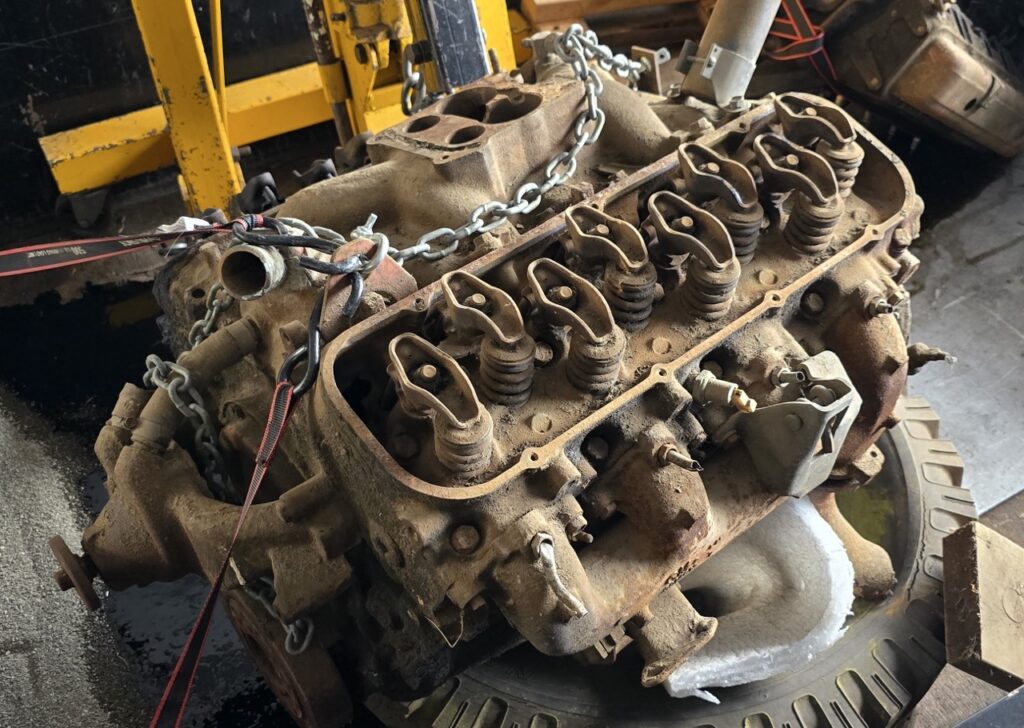

Amidst vintage rides like a 1957 Chevrolet Bel Air and a handful of other classics, I stumbled upon an unassuming 427 Chevy engine perched on a pallet, hidden beneath layers of dust and debris. This engine, a 1969 model from a big Chevy car, supposedly churned out 390 hp but unfortunately wouldn't turn over. Nevertheless, potential lay hidden beneath its grime.
What's Inside the Engine?

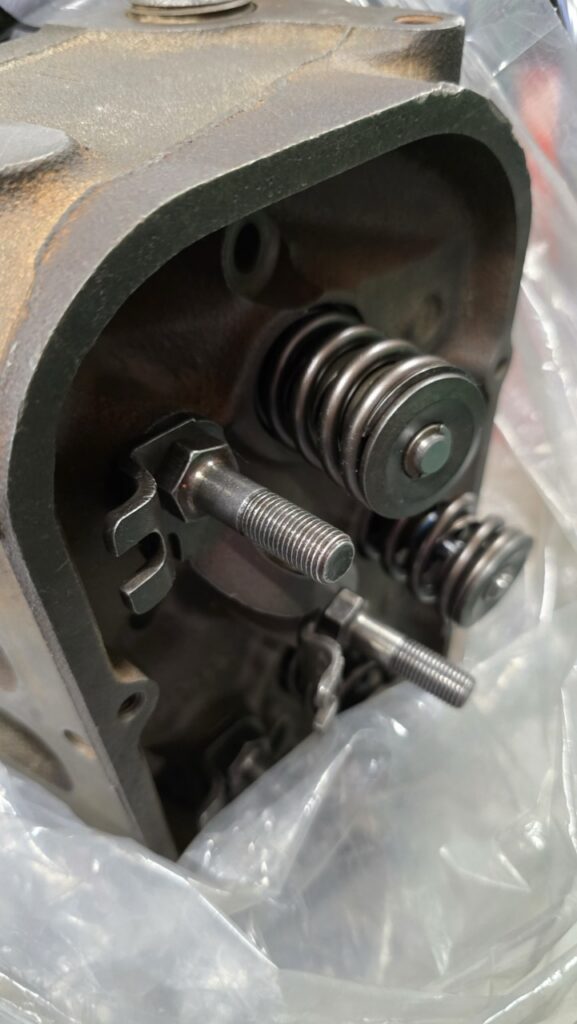

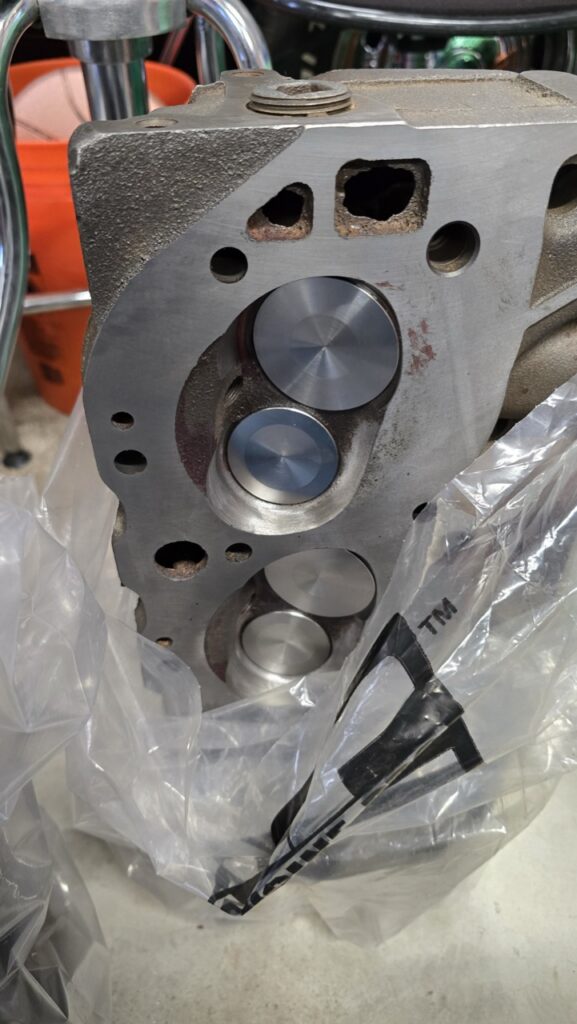

The reveal was promising. The engine bore identification number casting 3955270, typically associated with everything from Impala 427s to Corvette L88s—an intriguing find. The cylinder heads featured oval ports with 2.06-inch intake and 1.72-inch exhaust valves, which, while not the most advanced tech of the day, still showed potential. Yet, the engine’s locked status raised red flags about its condition, suggesting it might be a substantial project.
My dad took on the challenge of dismantling the engine. After days of focused effort with tools and a few choice words, the crank began to rotate. Eager to reveal its inner workings, he found that contrary to my suspicions, the internals were not ruined. Despite oil so old it could be deemed a relic, there was evidence of OEM gaskets and a bore with only a slight ridge. A bit of a gamble was transforming into a worthwhile endeavor.
From Grime to Shine
The next step was cleaning, as the robust aspects of the engine needed to be revived from years of neglect. I contacted Dan Hutchins from Hutchins Performance in Portland, renowned for his cleaning expertise. His caustic hot tank was perfect for eliminating the barn residue clinging to the engine.

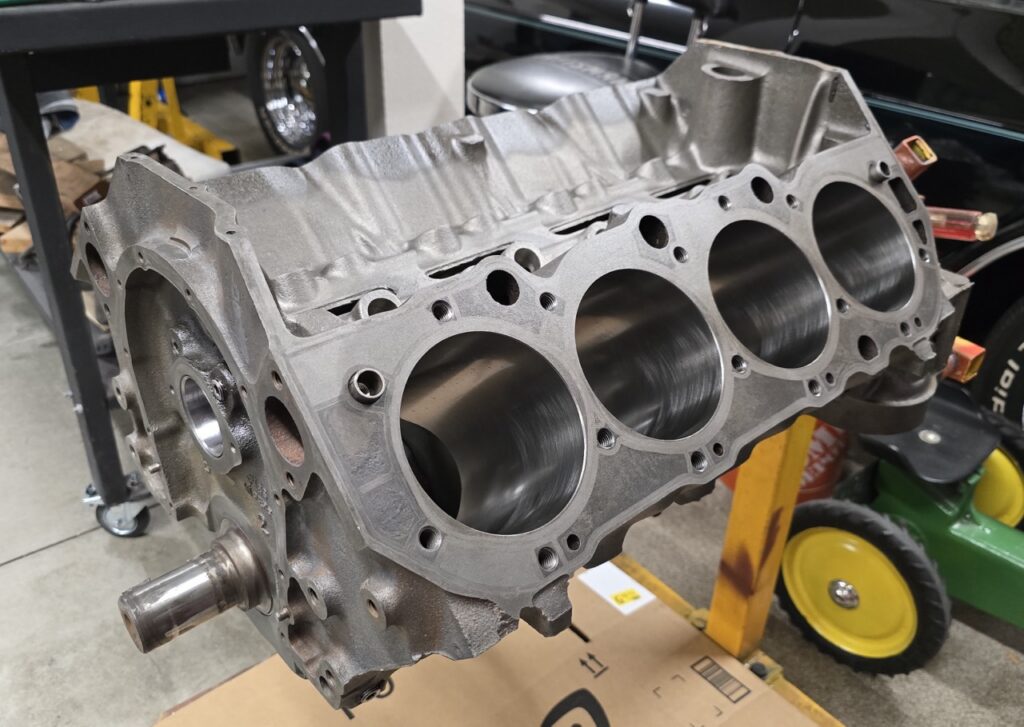

Once the cleaning commenced, my modest plan for a simple clean-up quickly expanded. Hutchins proposed an overbore to prep the engine for reassembly. This included polishing the original steel crank, replacing cam bearings, resizing the rods, and fitting ARP rod bolts. The idea was not to cut corners, and as discussions progressed, it became clear that this 427 would transform into something much more special.
Building the Short Block

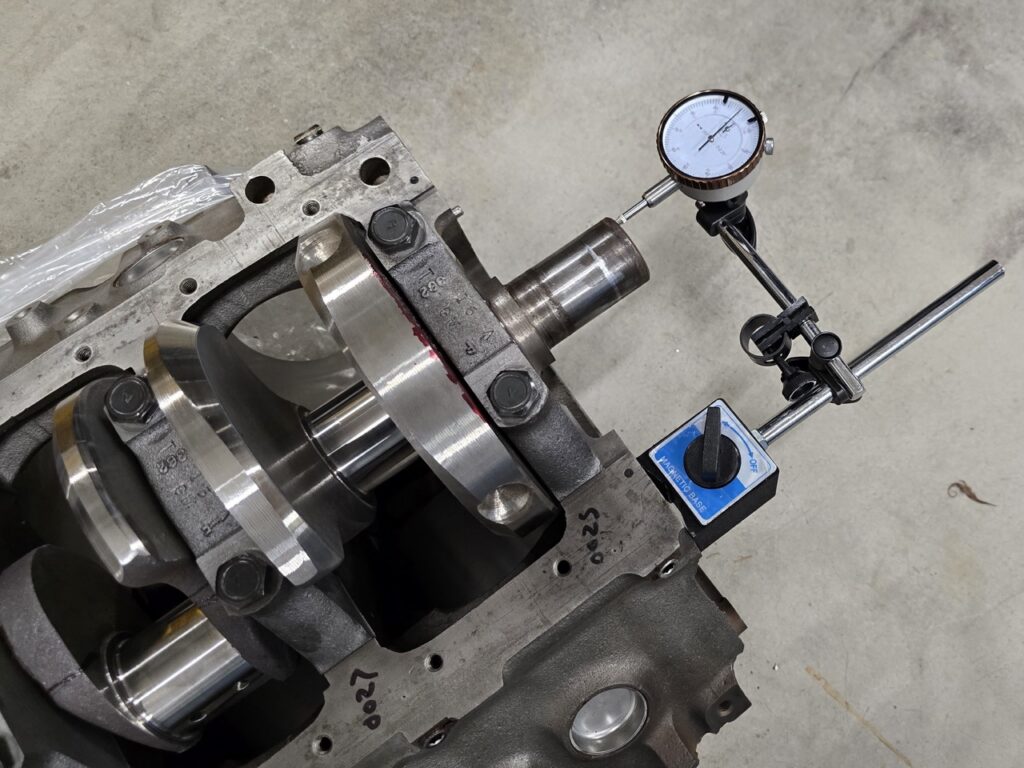

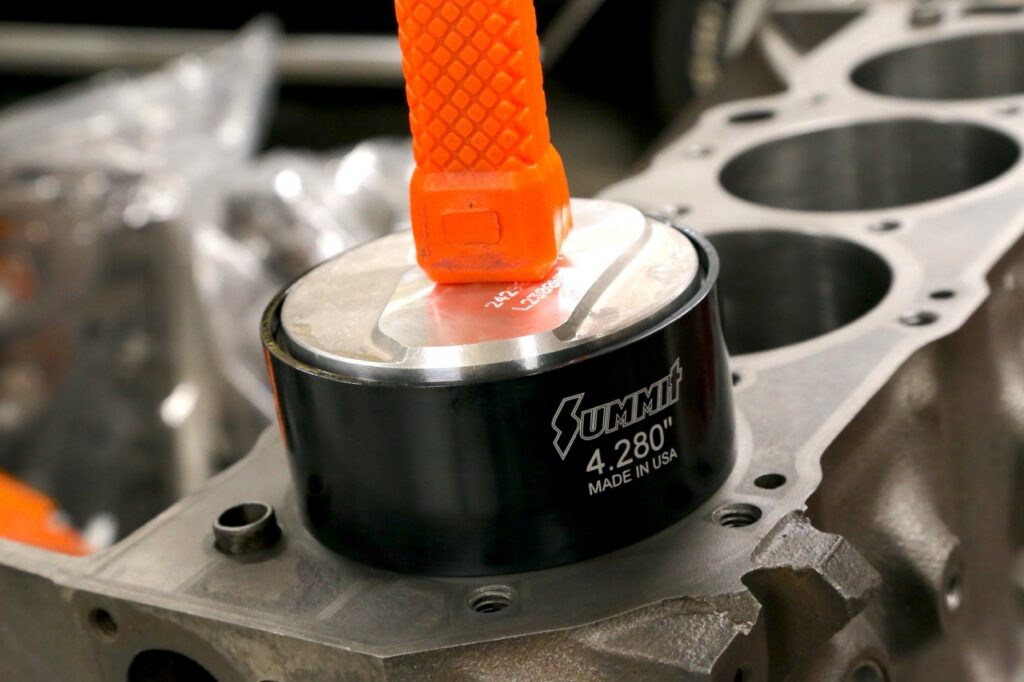

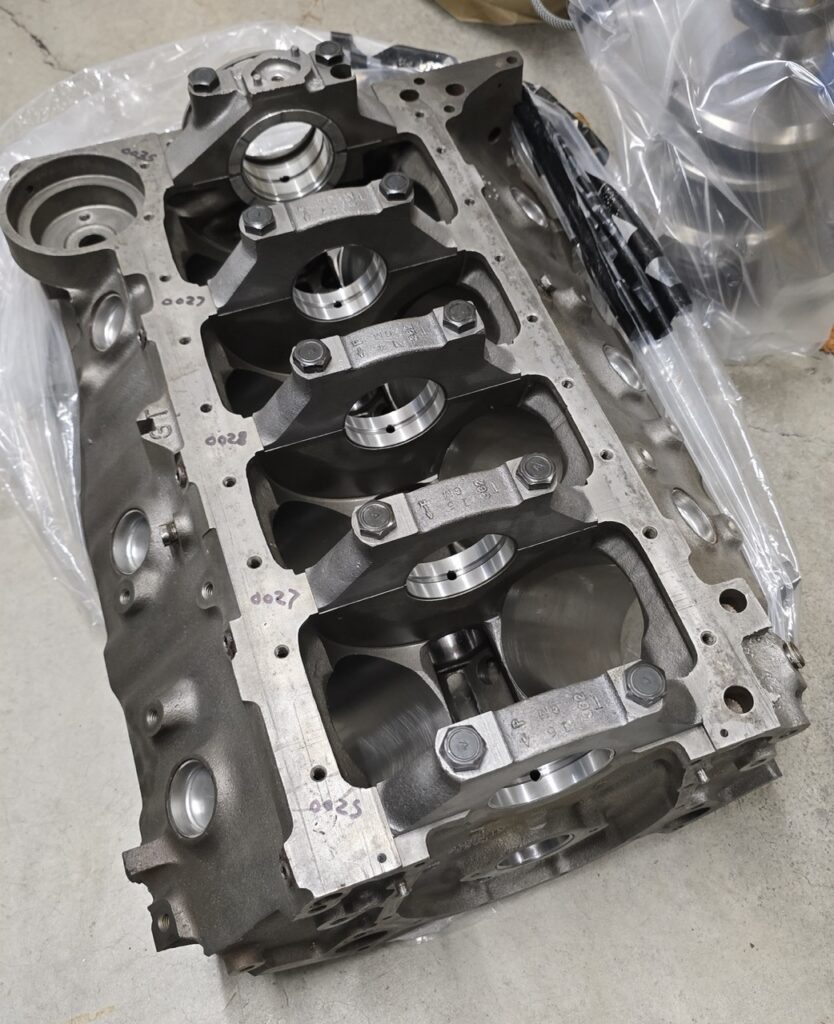

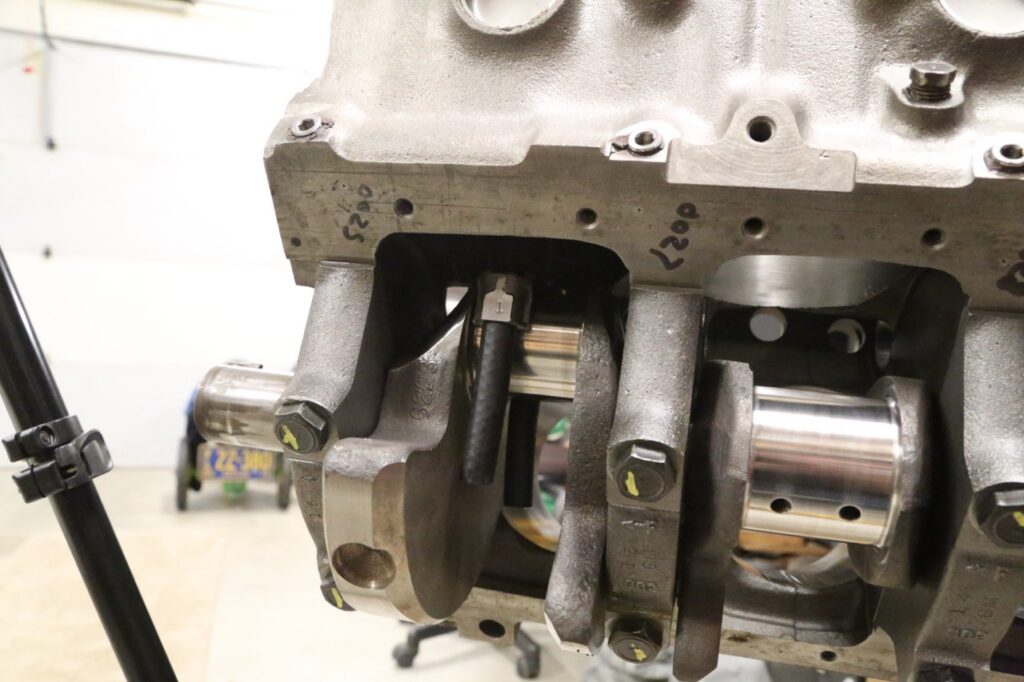

As I worked on cleanning the Camaro, I also began assembling the engine components. With Hutchins pre-setting the main and rod bearing clearances, the process streamlined. Installing the crankshaft involved checking thrust clearance and ensuring everything spun properly within the block. This was an essential step before proceeding to attach the pistons.

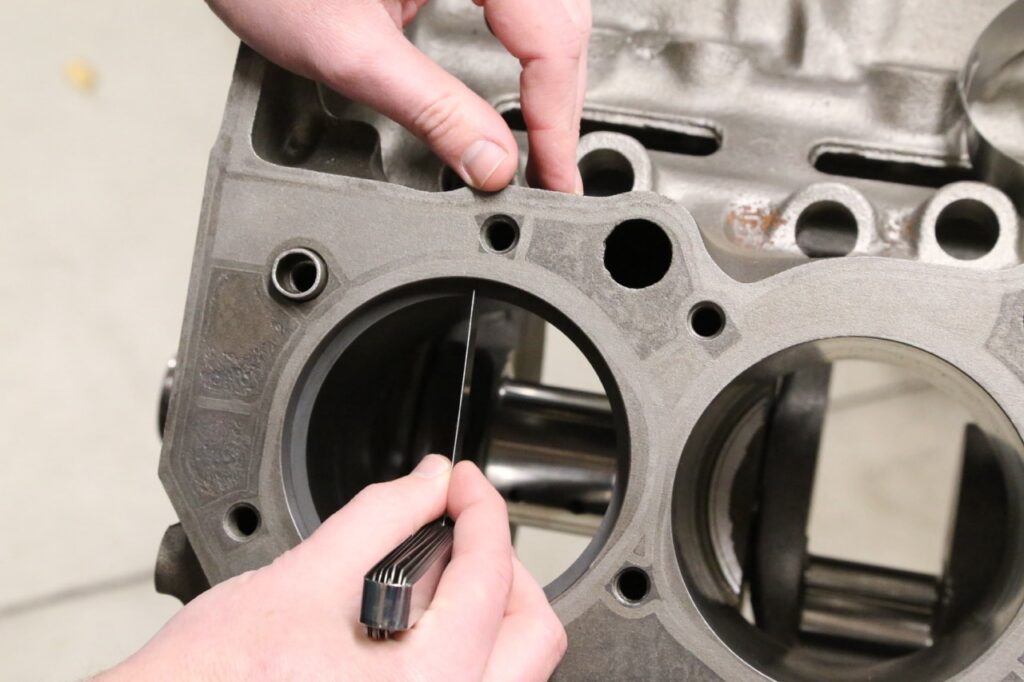

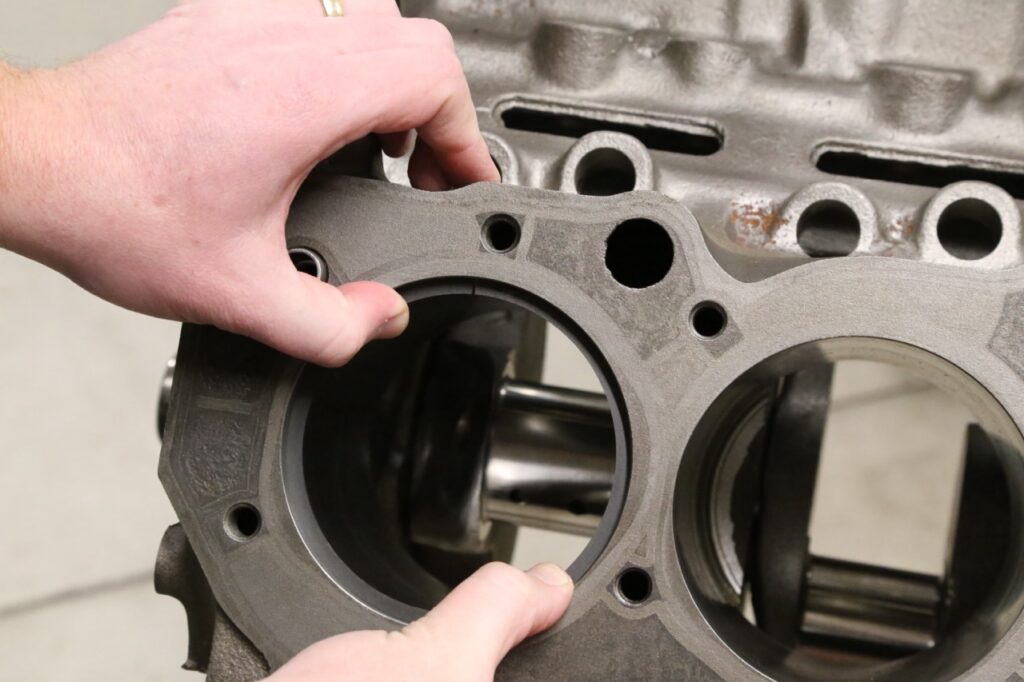

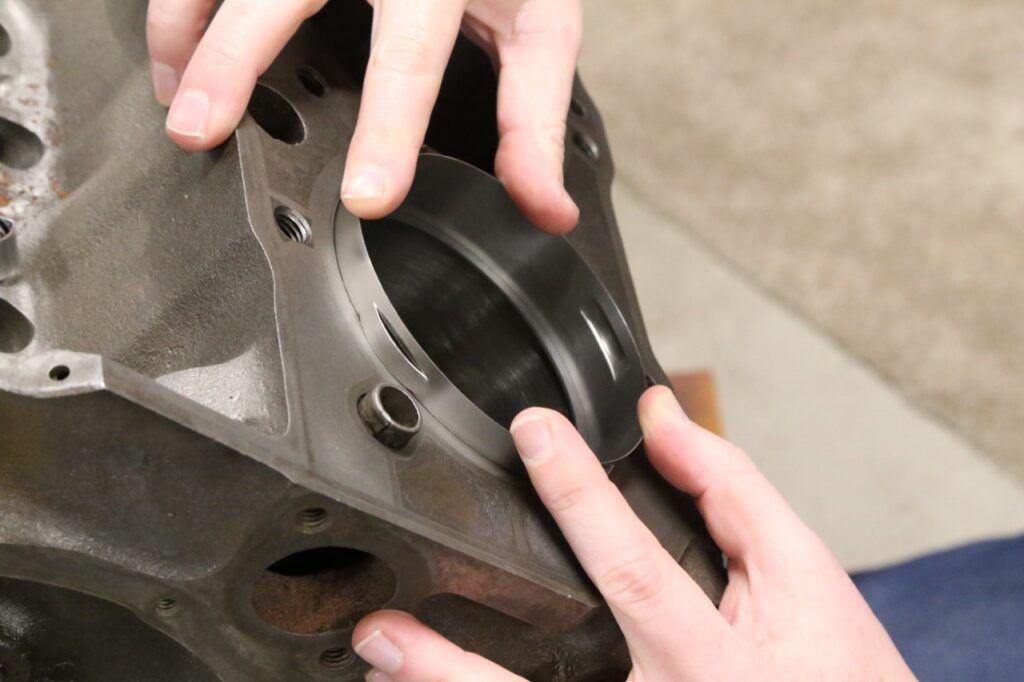

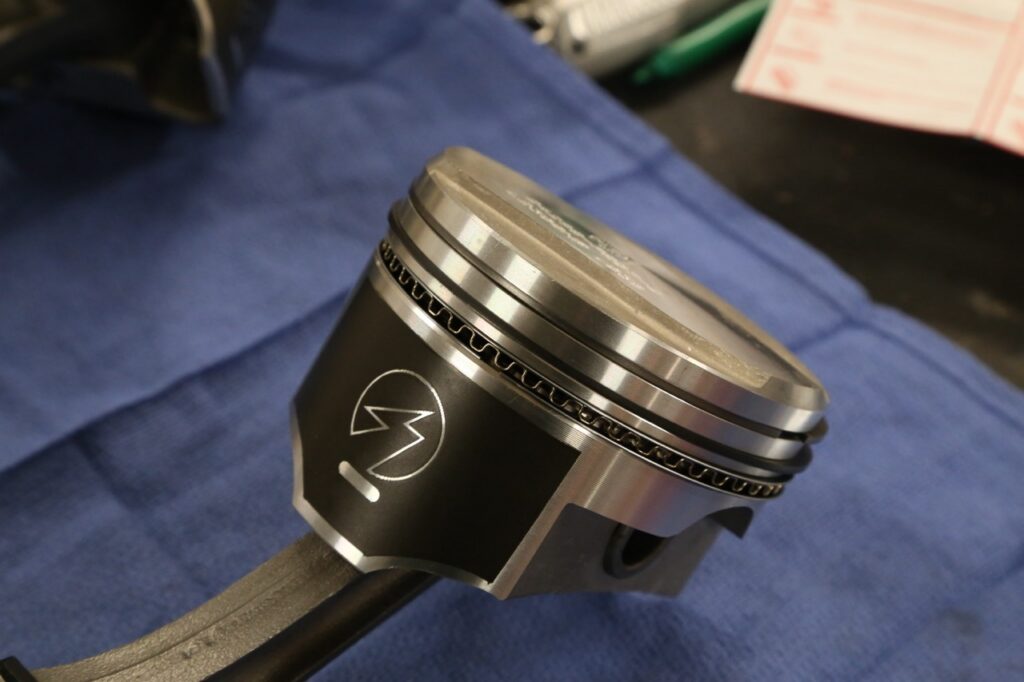

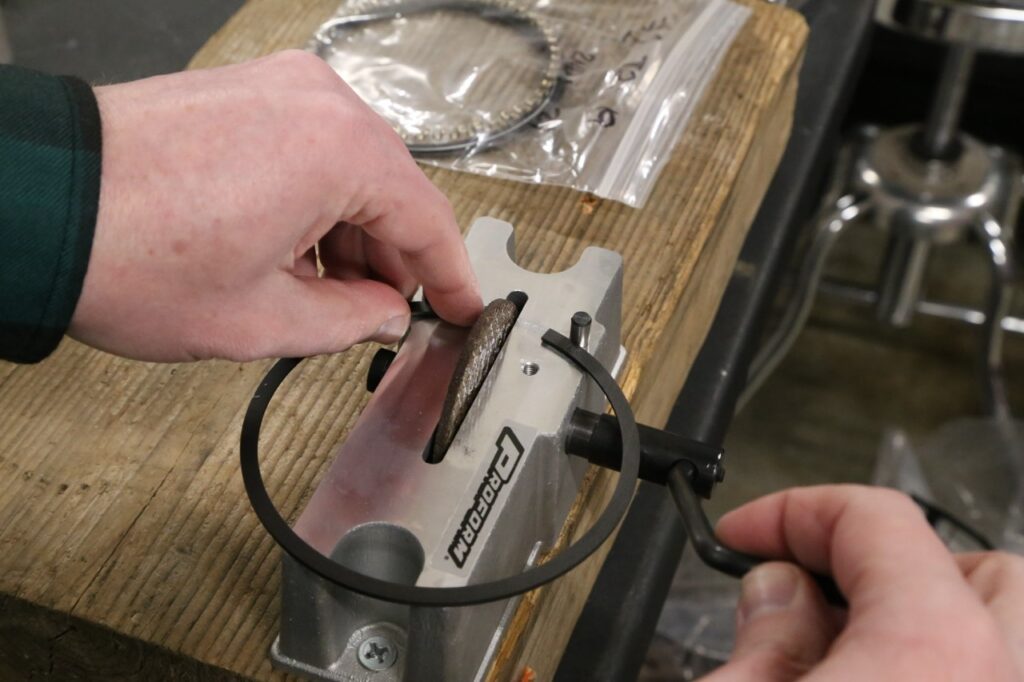

I carefully filed the ring gaps for both compression rings, ensuring they were within specification to avoid future issues like excessive oil burning or catastrophic failure. Each piston was fitted with its respective rings—ensuring organization and tracking was key to a seamless installation.

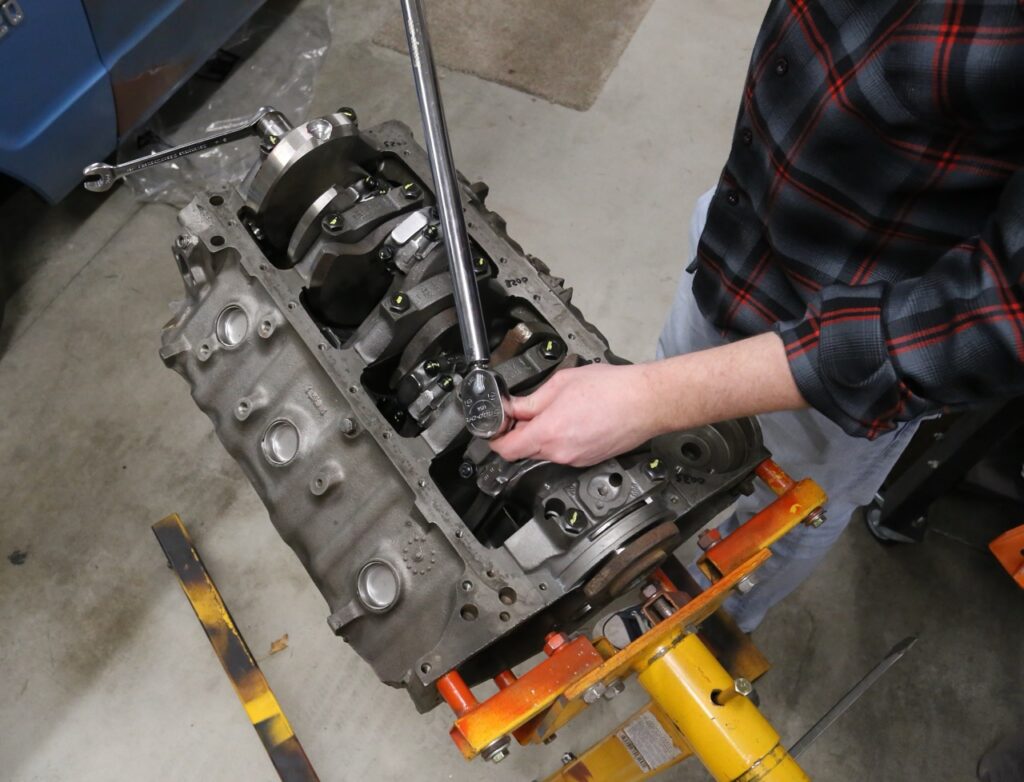

Ultimately, after meticulous work and attention to detail, the pieces formed a complete, fresh short-block 427. Utilizing forged pistons and assuring the right compression ratio came first, creating an engine that was not only ready for the streets but ready to roar.
Next Steps for Project Cheap Camaro
With a clean short block ready, several critical decisions remain. While this 427 isn't the famed L72 type behind the legendary COPOs, I plan to select a modern cam and additional modifications to push it closer to that realm of power. As I continue with the car's body and paintwork in the coming weeks, the quest now shifts towards sourcing the remaining components required to complete this rebuild.
One exciting prospect is creating a test stand for the Alliance class so we can fire up the engine and let future automotive technicians experience the magic of a finely tuned big-block. While I may not have the storied legacy of Nickey or Harrell's builds leading my project, I'm confident that with the right touches, this Cheap Camaro will leave its mark on the roads.
Project Cheap Camaro isn't just about creating a vehicle; it's also about reviving a piece of automotive history and passing on knowledge to the next generation of car enthusiasts.
