Restoring an engine block involves intricate processes like honing and torque plate installation to ensure optimal performance and reliability.
The engineering behind internal combustion engines is nothing short of remarkable, with intricate assemblies that serve as the heart of vehicles worldwide. However, misconceptions abound regarding their simplicity. Many enthusiasts might view engine blocks as robust slabs of iron, but the reality is much more complex. Basic procedures such as bolting down cylinder heads can inadvertently distort the entire block, leading to inefficiencies. The intricacies of maintaining engine integrity highlight the balance of power and precision required for optimal performance.
Importance of Cylinder Bores
Among the myriad components that contribute to engine function, the cylinder bores stand out as particularly critical. These holes must securely contain the air and fuel mixture while also enduring the considerable forces generated during combustion. Piston rings, which play a pivotal role in sealing off the combustion chamber, need the bores to maintain perfect roundness for peak efficiency. While some tasks, like installing piston rings, can be tackled by enthusiasts at home, achieving a precisely bored cylinder should be left to the professionals.
The Process at Jim's Automotive Machine Shop
A recent visit to Jim's Automotive Machine Shop in northern Colorado provides insight into the meticulous process of restoring an engine block. This two-man shop has developed a reputation over the years for its engine rebuilds and captivating video documentation of each stage. Their latest project—a Ford 460 V-8—was a prime example of the painstaking steps required to achieve a flawlessly honed cylinder bore. In their videos, the father-son team articulates their methodology, explaining the rationale behind each procedure in real-time.
The Role of Torque Plates

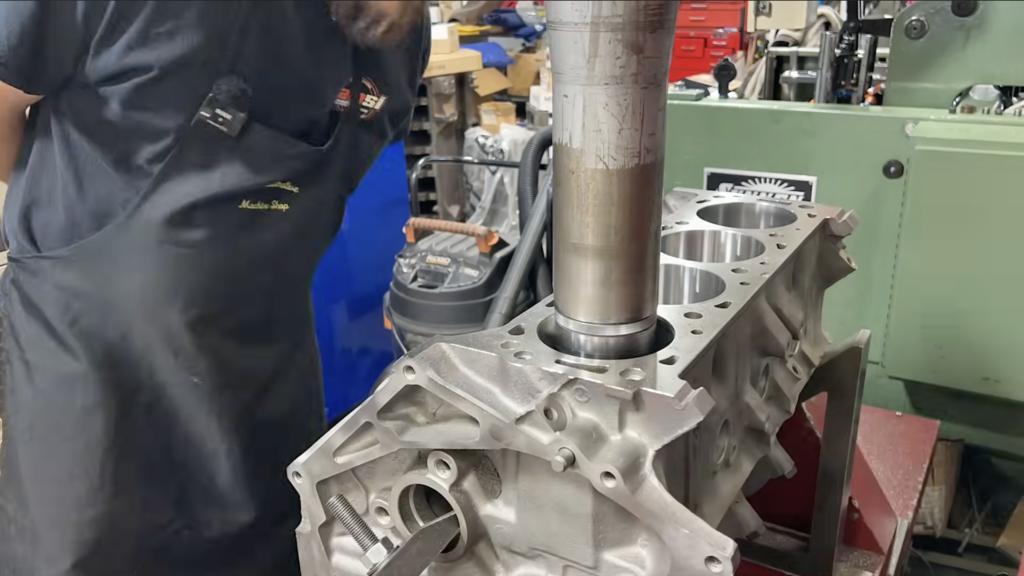

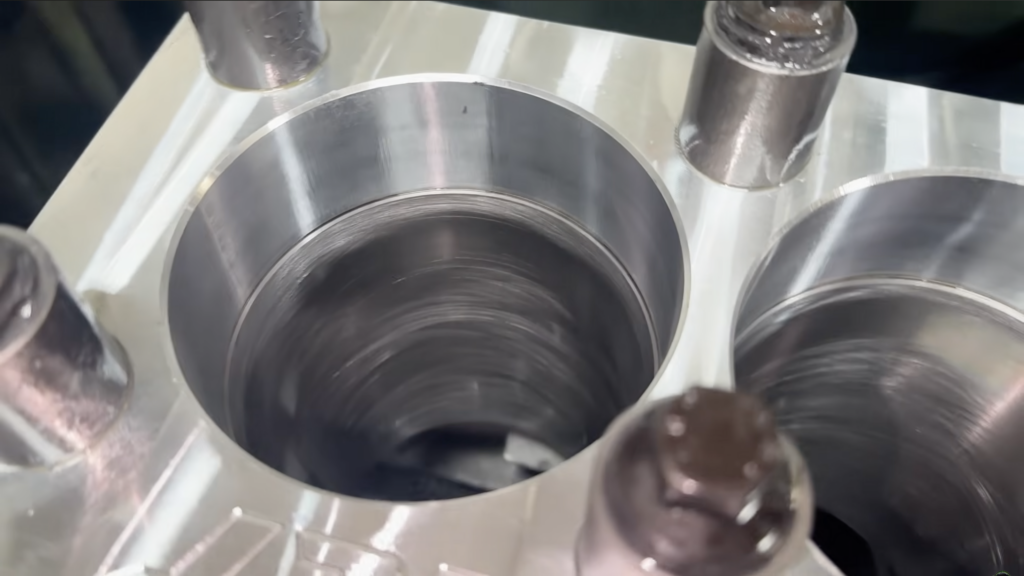

One of the crucial steps in their process involves using a torque plate during honing. This apparatus mimics the pressure and rigidity of a mounted cylinder head while allowing access to the cylinders. This step is vital because, without simulating the load that the head would impose, distortions can render the bores less than perfect. Initially, the cylinder bores in the Ford V-8 appeared to be in good condition, but upon closer inspection, they revealed a surprising amount of distortion. When the cylinder was secured in preparation for machining, it became evident that the bore could be nearly two thousandths of an inch out of round, a significant deviation for an engine operating under high-performance conditions.
Honing Techniques and Results

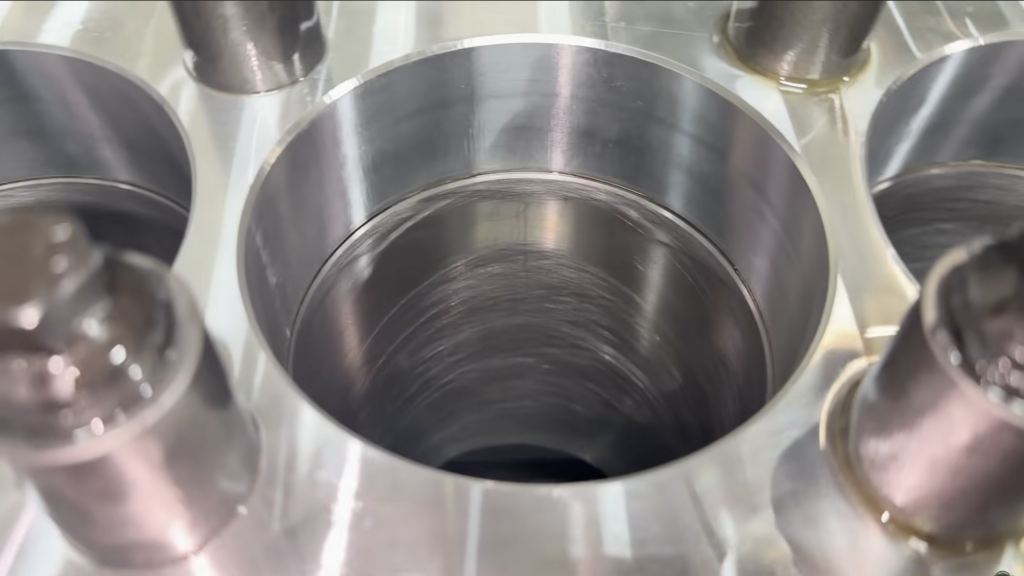

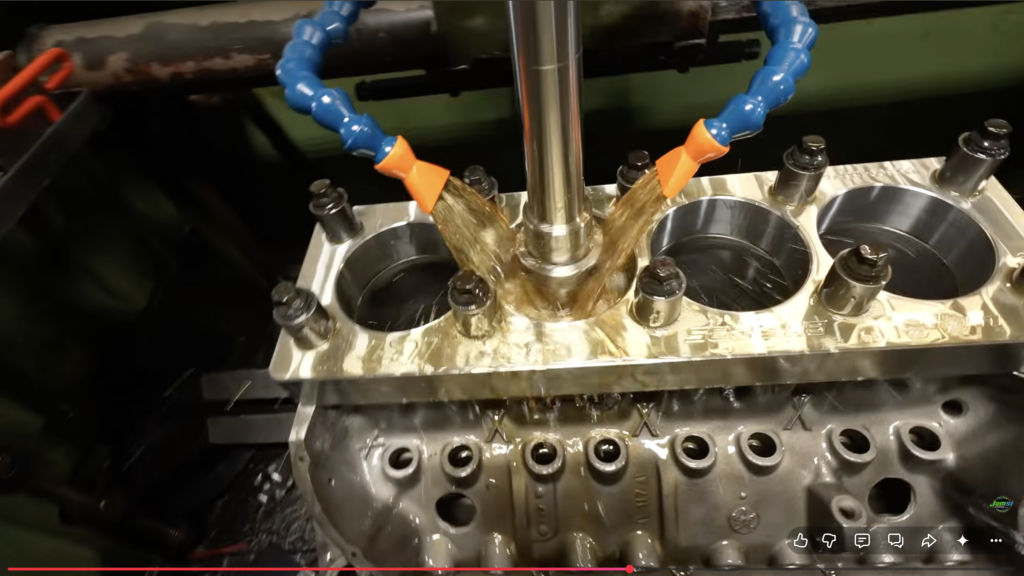

The honing procedure employed by Jim's shop utilizes a 180-grit diamond hone to remove material and correct any imperfections in the cylinder's shape. This stage is followed by a finer 600-grit CBN stone, creating a finished surface that meets the specific requirements set by the manufacturer of the piston rings. Removing the torque plate after honing reveals just how much work has been done, and subsequent measurements with a bore gauge substantiate the results.
Final Thoughts on Engine Restoration

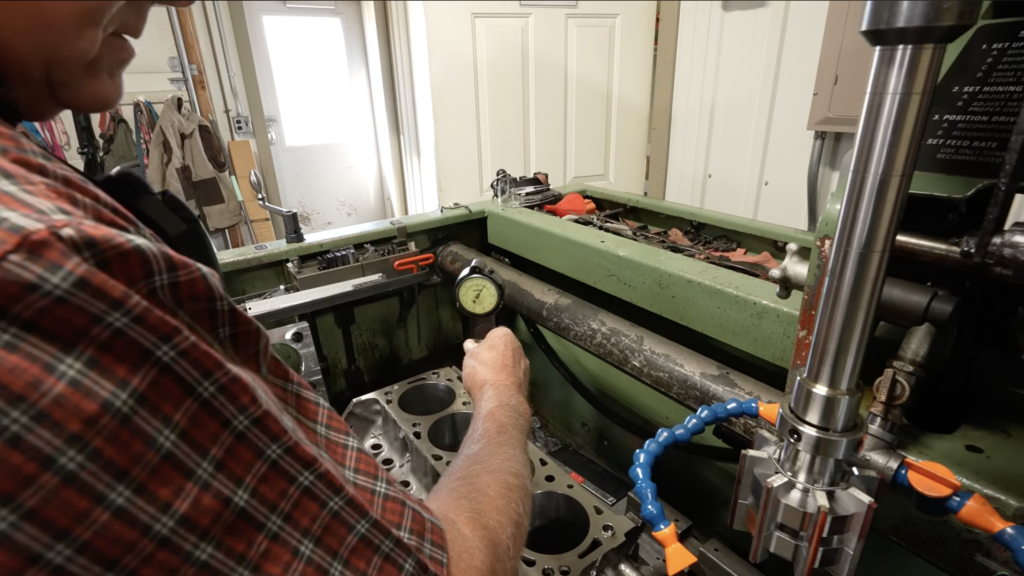

This particular engine rebuild at Jim's shop serves as a valuable lesson for both novice and seasoned enthusiasts. The owner of the Ford V-8 has opted to assemble it independently, which means many viewers won't witness the final stages of the project. However, those involved in the restoration learned key insights throughout the process. The video highlights the importance of using precise measurement tools, especially when working with equipment that has been machined using a torque plate. Without adhering to these best practices, any assessments of cylinder bore alignment could yield misleading information.
Understanding the nuances of engine rebuilder techniques, like the role of torque plates and the necessity of precise honing, underscores the fact that restoring an engine is a blend of art and science. It's not merely about having the right tools; it's about knowing when and how to use them effectively. As the automotive landscape continues to evolve, enthusiasts will benefit from embracing both traditional skills and modern technological advancements in engine restoration.
The insights gained from this restoration project offer significant takeaways for anyone tackling engine work, serving as a reminder that engineering achievements demand meticulous attention to detail.
The original article can be read on Hagerty Media.
