Enhancing safety in my 1978 Datsun 280Z with a roll bar installation significantly improves protection and confidence during track days.

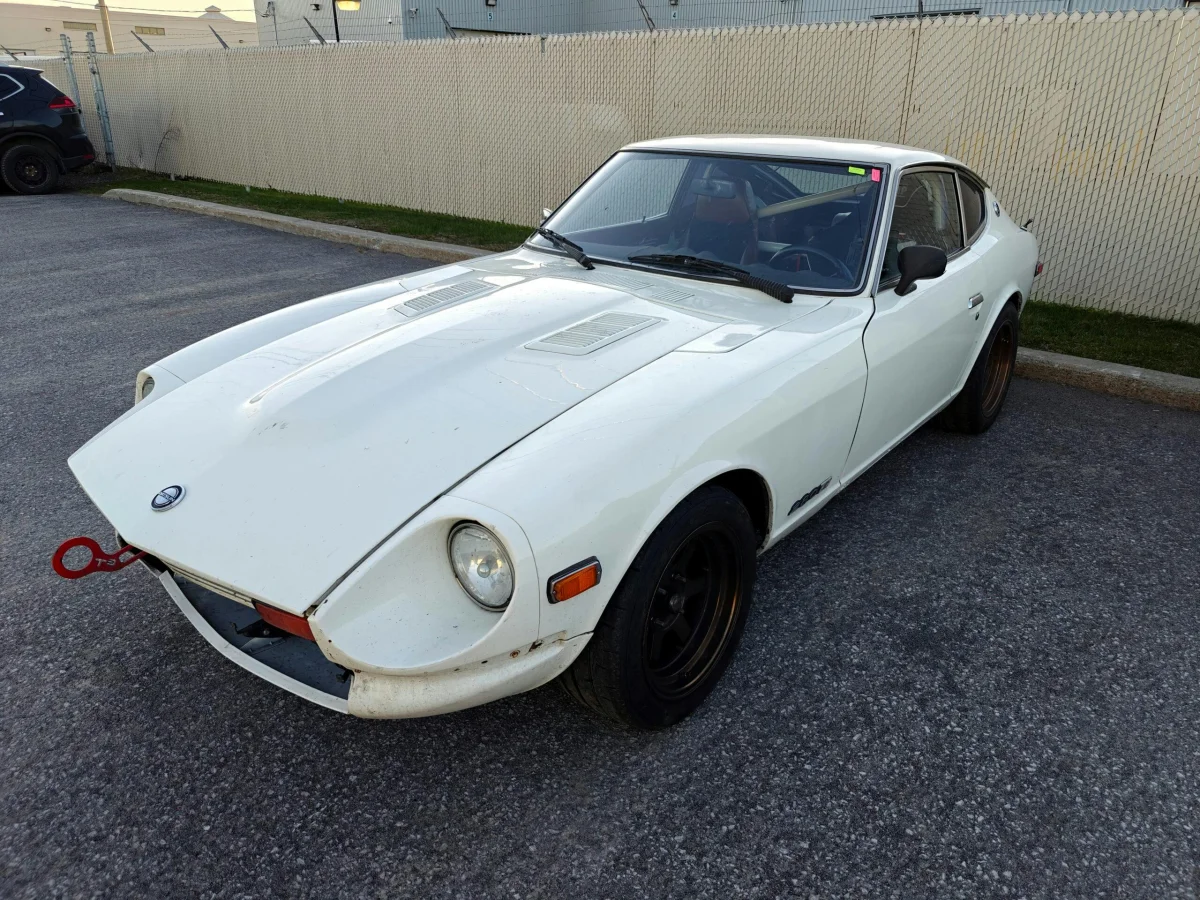

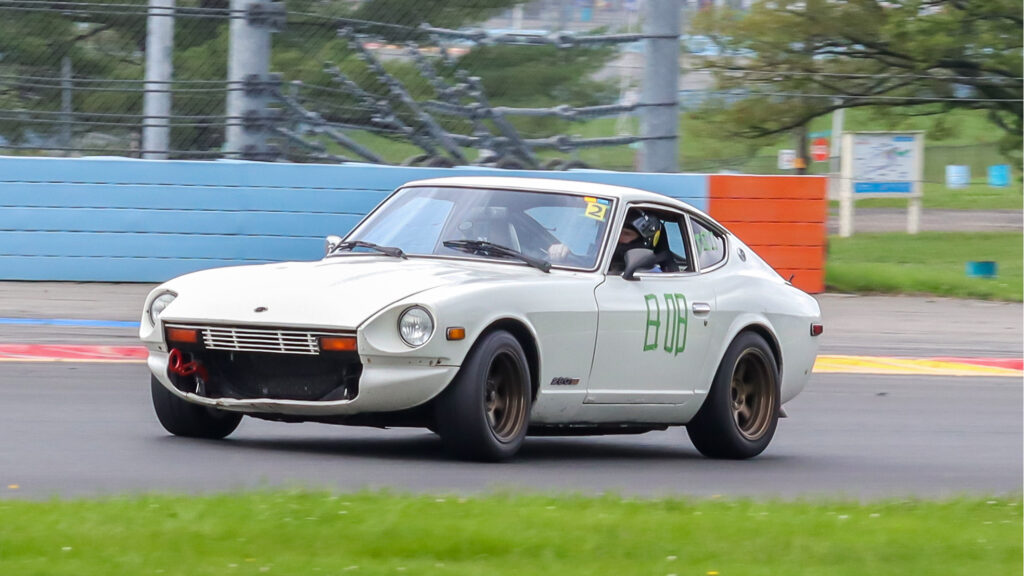

Nothing sharpens your focus quite like racing towards a concrete barrier at 100 mph in a car designed with safety features from the 1960s. This has been my reality for the past several years as I've taken my 1978 Datsun 280Z to various road courses across the northeastern United States. Encountering high-speed corners at tracks like Watkins Glen and Mosport, with limited run-off space before hitting solid objects, has raised numerous safety concerns.
The ongoing experience of pushing my Datsun to its limits has led me to think deeply about the potential risks of a crash in a car with the structural integrity of a tin can. While I've had my share of spectacular off-track moments early in my ownership—during which I was still learning the car's capabilities—the thought that I might neglect crucial safety upgrades has loomed heavily over my head. The last thing I want is to find myself regretting unpreparedness while recuperating in a hospital.
With this in mind, I spent the winter assessing the options for enhancing my safety on the track and on the roads near my home. I sought a solution that balanced effectiveness, comfort, and everyday usability, without introducing new risks when not racing. I soon discovered that enhancing safety in a classic sports car could be surprisingly affordable and straightforward, especially compared to some of my previous extensive modifications to the 280Z.
Safety in Classically Designed Cars
Modern cars prioritize crash resistance through features like crumple zones, energy-absorbing engine mounts, and high-strength cabin structures. Unfortunately, these advancements are mostly absent in cars built before the 1990s, including models like my late-‘70s Datsun.
Weighing around 2,500 pounds, my 280Z relies on relatively thin metal for its construction. This fact becomes evident when considering its unibody design, which lacks the stability provided by a connected front and rear subframe. In the event of a collision, the results could be dire. Moreover, the car's roof provides little rollover protection and is primarily designed to keep the elements out, rather than to support the vehicle in the event of a crash.
The Case for a Roll Cage

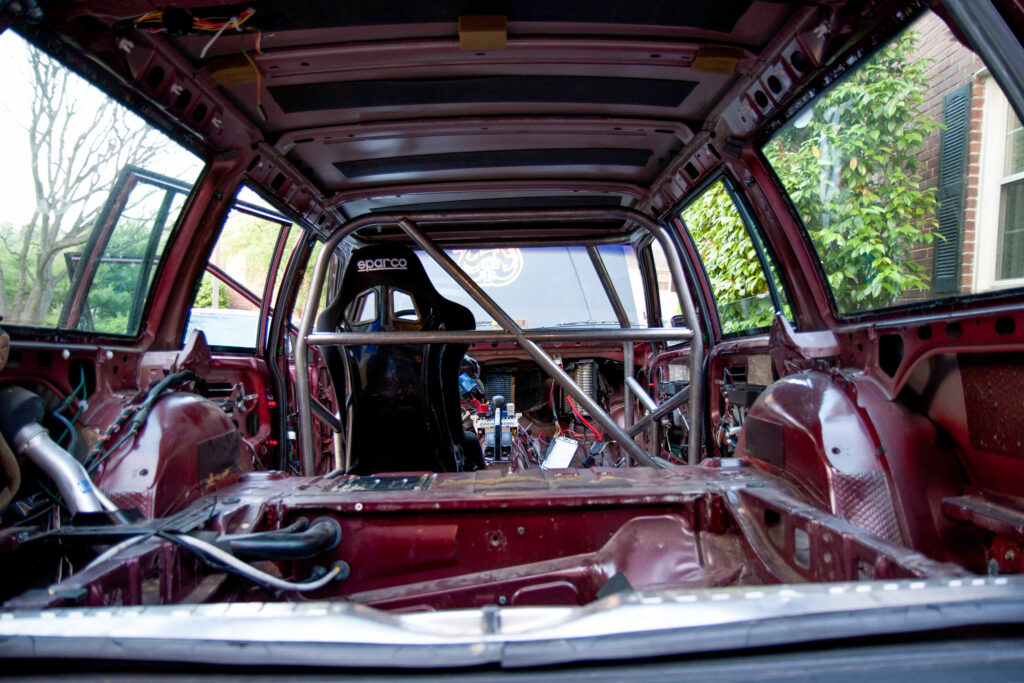

A highly effective solution to these shortcomings involves constructing a roll cage within the vehicle’s cabin. A roll cage, built from robust steel tubing, adds significant structural support, protecting occupants by reinforcing the roof, A-pillars, B-pillars, and rear inner structure. Properly anchored to the vehicle's strongest points—typically through the floor—the roll cage remains intact during high-stress situations.
While roll cages represent the most substantial safety upgrade for vehicles intended for racing, they come with drawbacks when considering street usability. Installing a full cage complicates entry and exit from the vehicle due to the presence of cross-beams, which can create hazards with hard surfaces in everyday driving scenarios.
In a racing context, belted securely in a seat and wearing a helmet significantly reduces the likelihood of injury from such structures. However, on the street, the potential for harm associated with a roll cage becomes a serious concern, particularly for passengers who can be more vulnerable in the event of a crash.
Finding the Right Balance
Given that usability on the street was a major factor for me, I ruled out a full cage and decided to opt for a roll bar instead. This solution enhances rollover strength by adding a robust hoop behind the driver’s seat, crafted from high-quality steel tubing. While it doesn’t provide the full protection a roll cage would offer, it represents a very significant improvement for vehicles manufactured when safety standards were far simpler.
In my previous track vehicle—a first-generation Mazda Miata—I had a roll bar installed as it’s a common safety requirement for many high-performance driving events, especially for convertibles. Additionally, installing a roll bar is more straightforward in a convertible, where you can more easily access mounting points compared to the confined space of a coupe like the 280Z.
My first thought was to inquire about a custom-built solution from AGM Performance, the race shop that maintains my 280Z. Owner Andrew Grubb quickly detailed the significant costs associated with designing and fabricating a bespoke roll bar, easily running into thousands of dollars. He advised me to seek a mass-produced option which is typically more affordable and less time-consuming.
Choosing a Pre-Fab Roll Bar

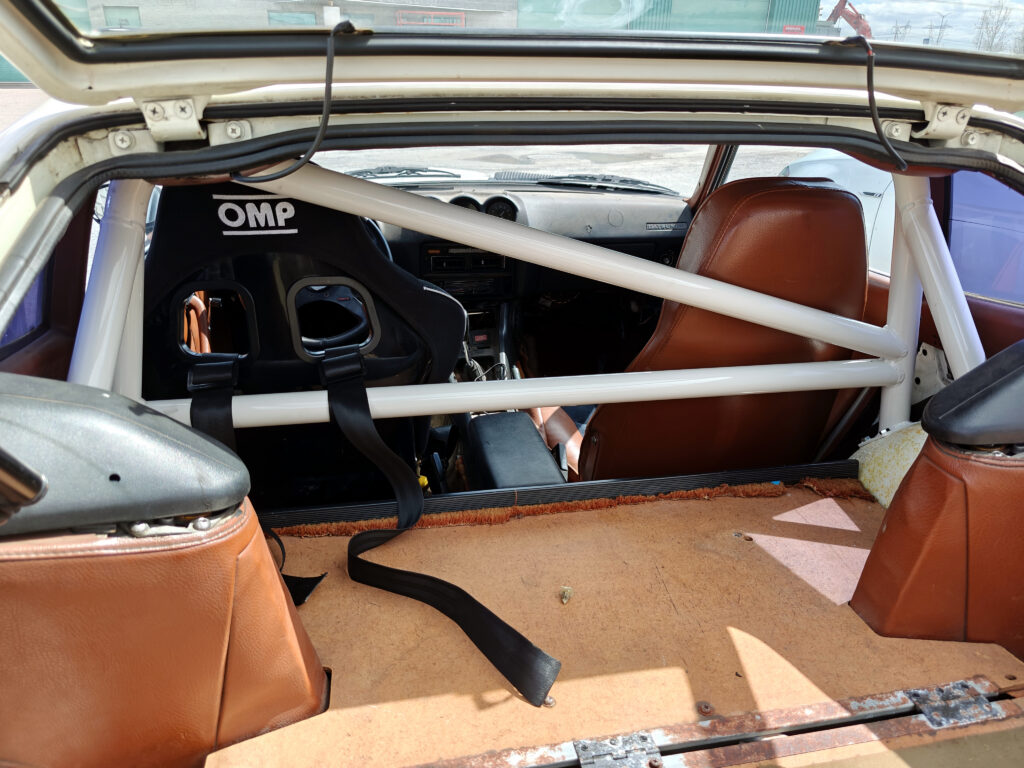

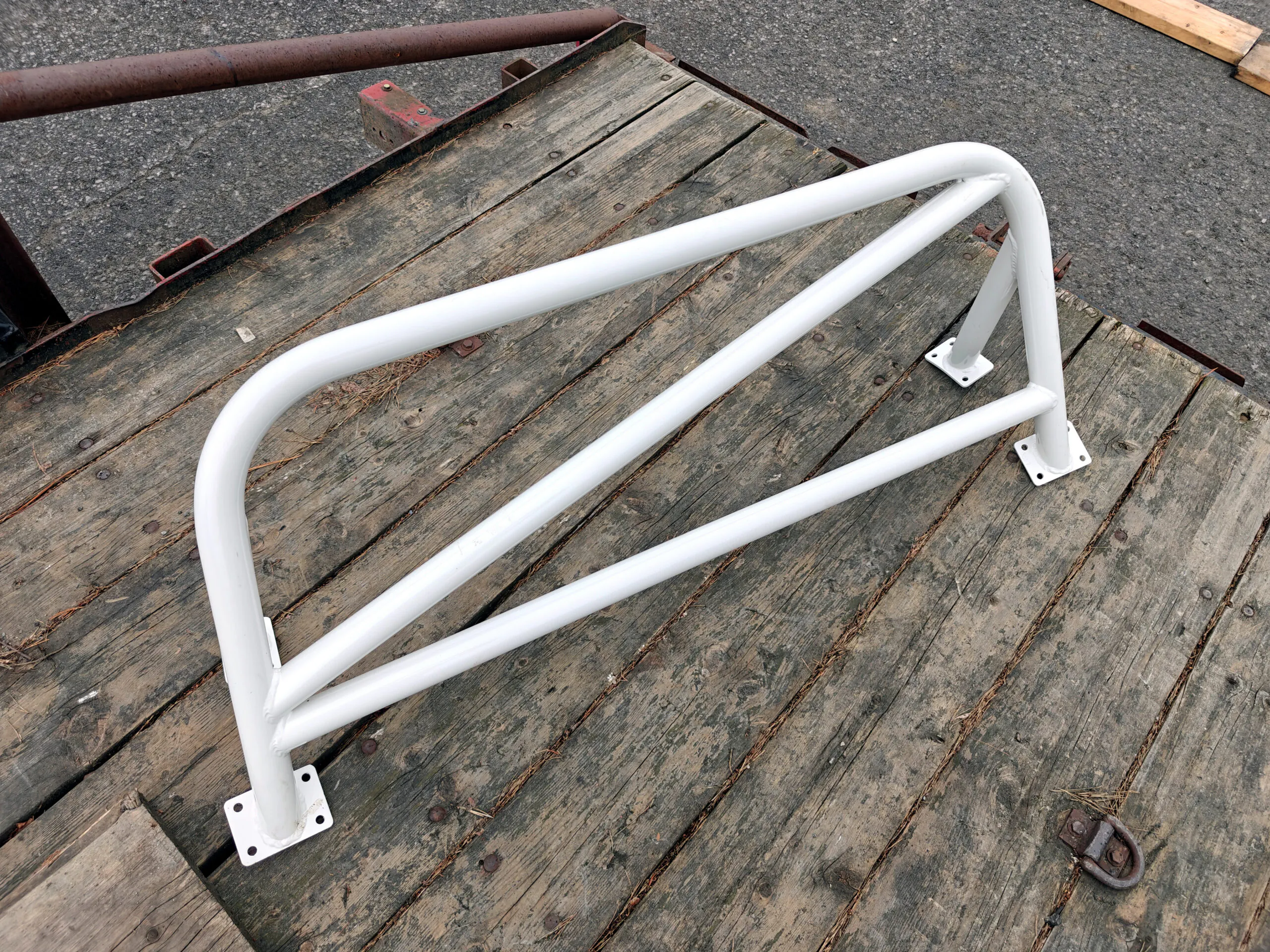

After researching options, it became evident that many Datsun enthusiasts prefer Autopower roll bars. This design features a hoop with a single diagonal brace and comes equipped with a harness bar for safety harness attachment. Autopower bars are sold under various brands, but I purchased mine from Motorsport Auto, which not only provided a competitive price but also shared installation images that clarified how the bar attaches within the vehicle.

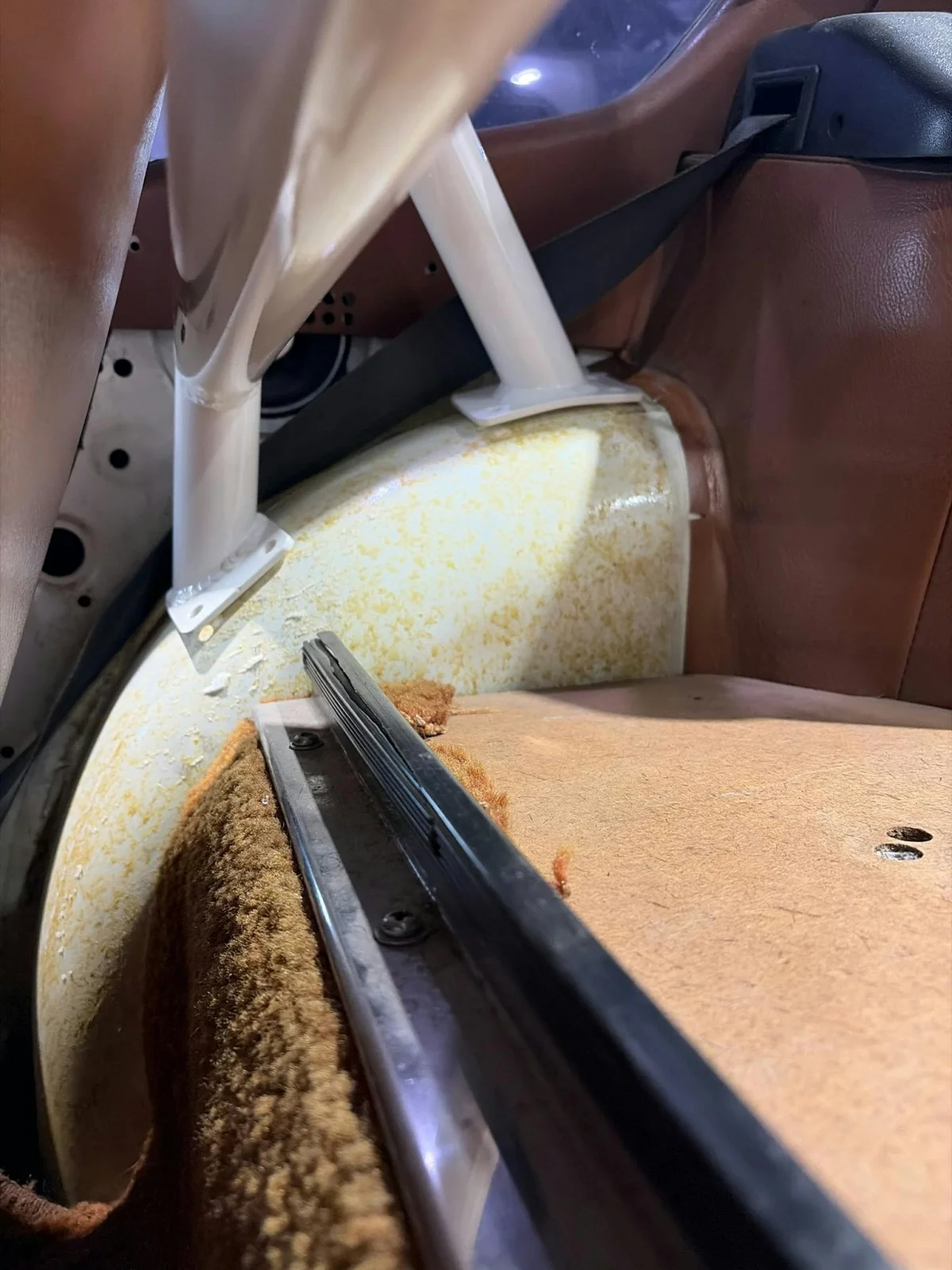

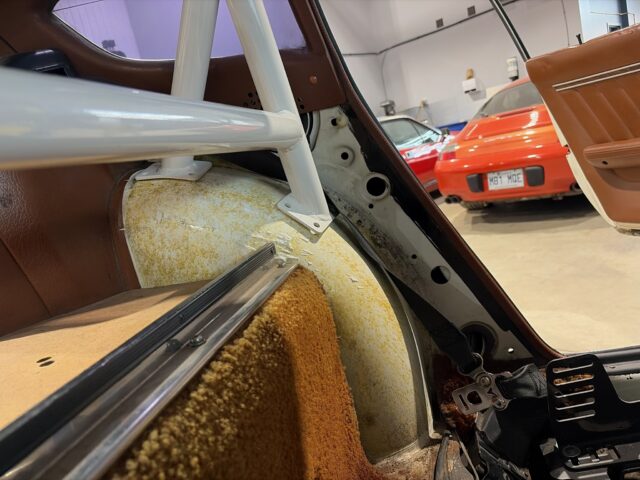

While roll bars generally have a similar appearance, their attachment details are critical—especially for mounting in a cramped cabin. For my installation, the bar bolts into the top of the rear wheel wells, initially raising concerns due to the distance from a stable frame connection. However, after consulting with Grubb, he assured me that the design included anchor plates which would provide adequate strength during a crash, supported by testimonies from other Datsun owners who'd successfully used the bar, combined with SCCA approval of the equipment.
Installation Process

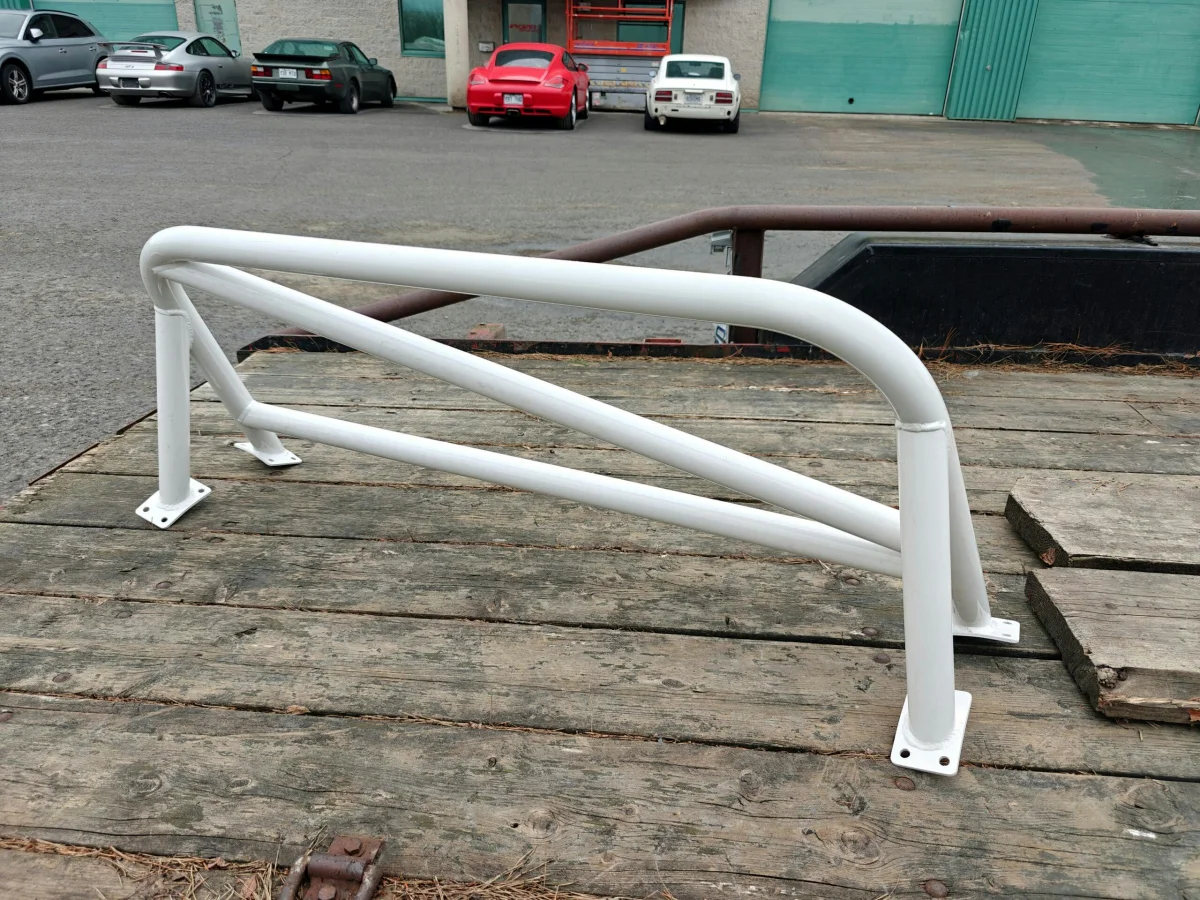

One downside of the Autopower design is its bare steel finish, as state regulations prohibit the factory from providing in-house painting services. While I had the option to paint it myself, I preferred to have a professional job completed due to the challenges of painting in a tight space. I found a local shop willing to do the paintwork for about a third of the roll bar's cost, giving me peace of mind as I completed this project.

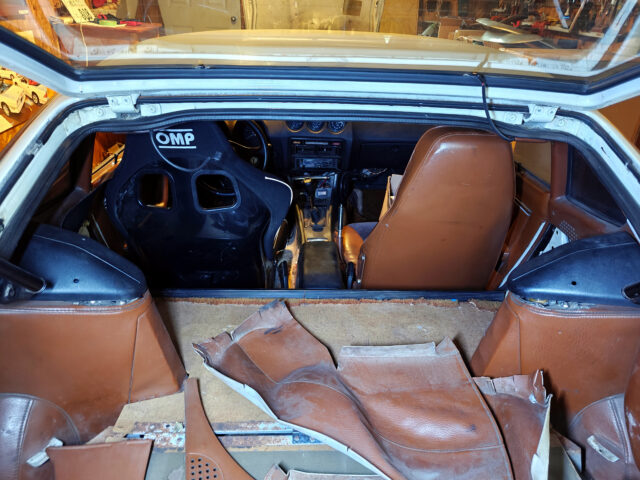

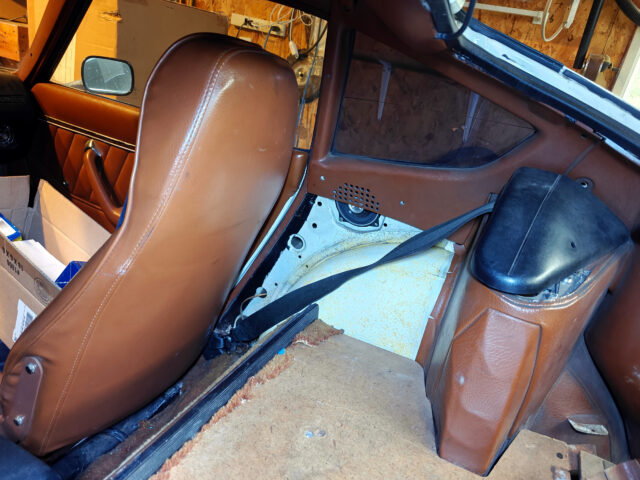

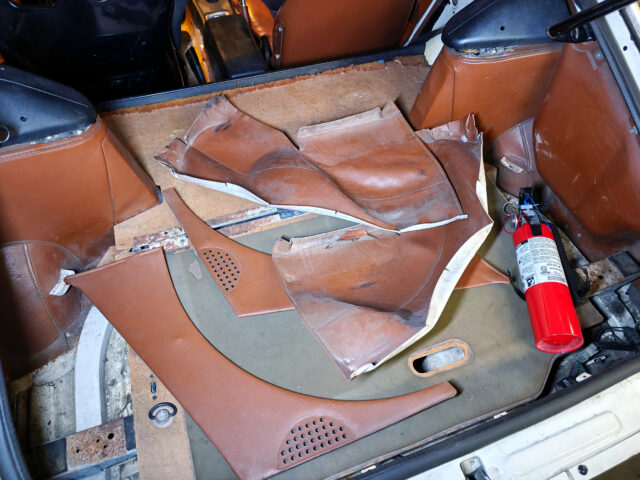

The installation process itself was more accessible than I anticipated. After carefully peeling back the original rear interior trim without damage, I only needed to remove the seats and place the roll bar. Then, it was simply a matter of drilling holes to attach it to the backing plates.

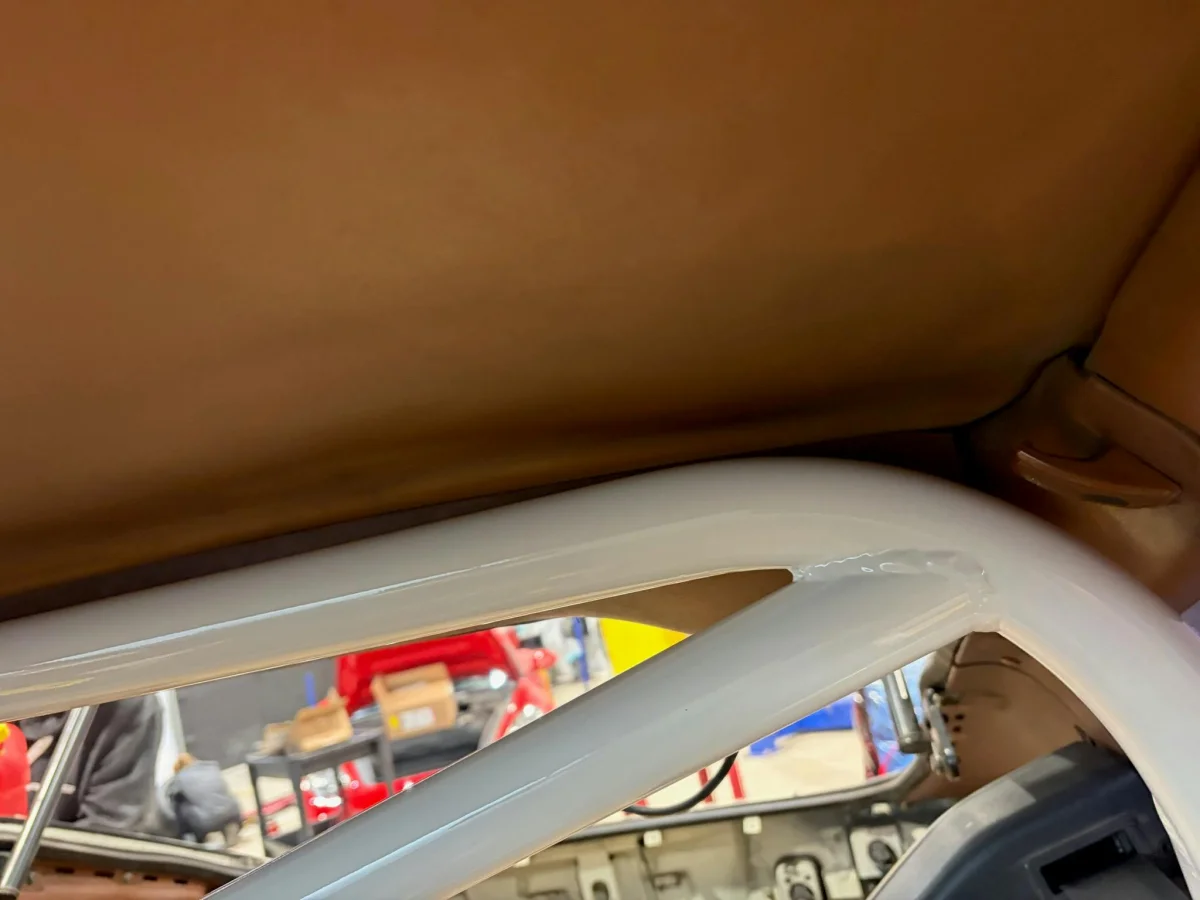

While aligning the roll bar, a slight misalignment was noted that raised questions about whether my vehicle had any production variances affecting its structural integrity. Nevertheless, this discrepancy remained minor and unnoticeable to anyone without specialized equipment.
Benefits Beyond Safety

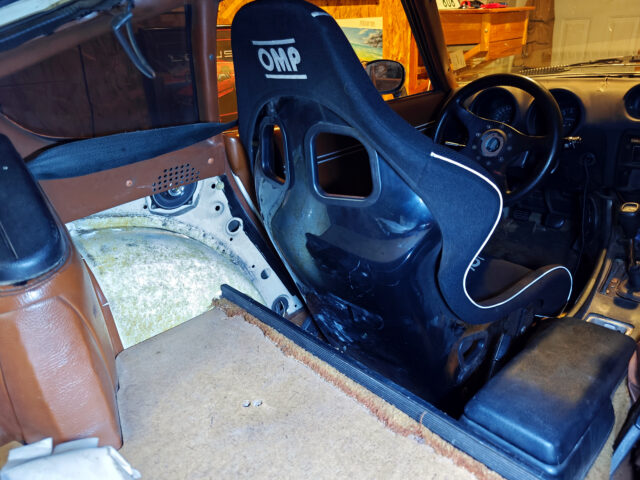

Adding a roll bar comes with the trade-off of approximately 50 pounds in weight, but the resulting increase in safety far outweighs any concerns about modest weight gain. I can now use a proper harness in conjunction with my OMP racing seat, replacing the factory three-point seatbelt, further improving my track readiness.
Andrew also surprised me by gifting a HANS device to enhance my Datsun's safety features. Previously used during media events, I had overlooked its necessity in personal racing adventures, a mistake I've now corrected.
While other roll bars provide added chassis stiffness, my new setup's installation point might not significantly enhance rigidity. However, the roll bar delivers something even more important—a marked reduction in worries as I prepare for my next track day. I'm conscious of the inherent risks in racing, but I'm now much more confident in my ability to mitigate the worst outcomes before I even turn the ignition key.
