Get to know the six types of differentials, from basic designs to high-tech variations, and how they impact vehicle handling and performance.
Many motorists may overlook the complexities of their vehicle’s differential, yet it plays a crucial role in performance by enabling wheels to rotate at different speeds when navigating turns. The very purpose of a differential is encapsulated in its name: it manages the difference in rotation speed between wheels on the same axle, ensuring smoother handling without tire scrubbing or hopping.
The concept of a differential isn't modern; it has its roots in the early 1830s, with its initial automotive application occurring in the 1870s. Understanding differentials, especially how they distribute power and torque effectively, is essential for optimal vehicle operation — whether at a crawl in a grocery store parking lot or blazing through turns at a racetrack.
In this article, we will break down the details of the three main types of differentials: open, limited-slip, and locking differentials. We'll also delve into the intricacies of subtypes, how they function in various conditions, and the implications for vehicle performance.
The Basics: Open Differentials
The most fundamental design, the open differential, boasts a simple mechanism that allows wheels to rotate independently. However, while this design seems flawless for normal driving, it has notable drawbacks, particularly in low-traction scenarios like snow or mud. In such situations, an open differential may direct all power to the slipping wheel, leaving the other wheel without traction.
Limited-Slip Differentials (LSD): The Power Distribution Solution

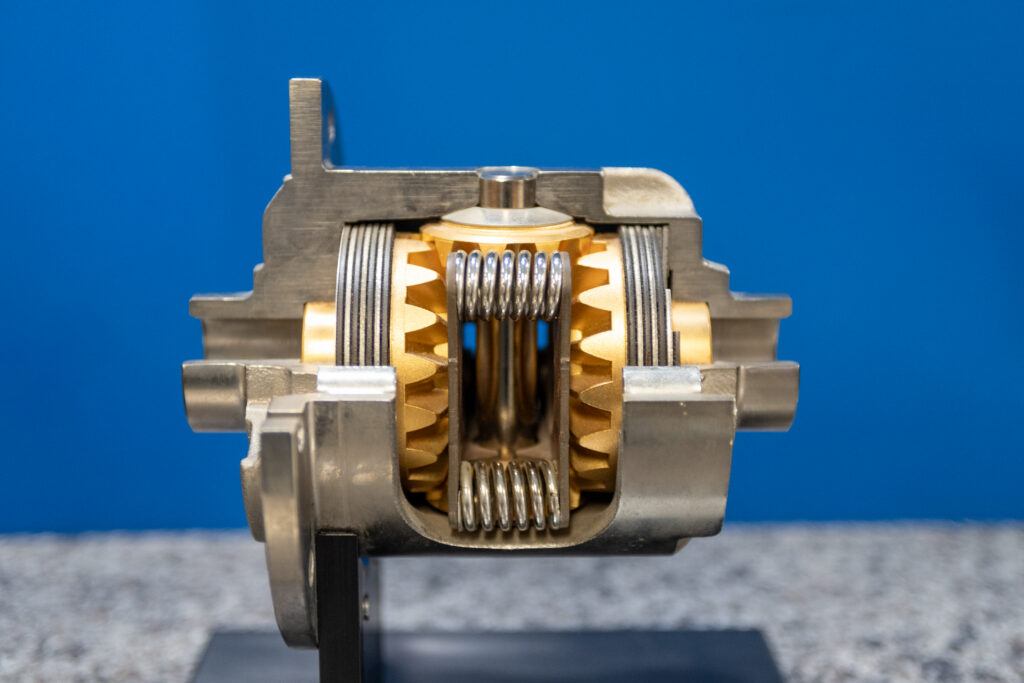

To combat the limitations of open differentials, engineers designed limited-slip differentials (LSDs), which come in clutch and helical styles. The earliest clutch-type LSD originated in 1935 and utilized friction plates to restrict wheel spin, ensuring power is transferred to the wheel with grip. Eaton’s contribution to clutch designs, available primarily in OEM applications, uses a unique organic friction material to optimize performance.

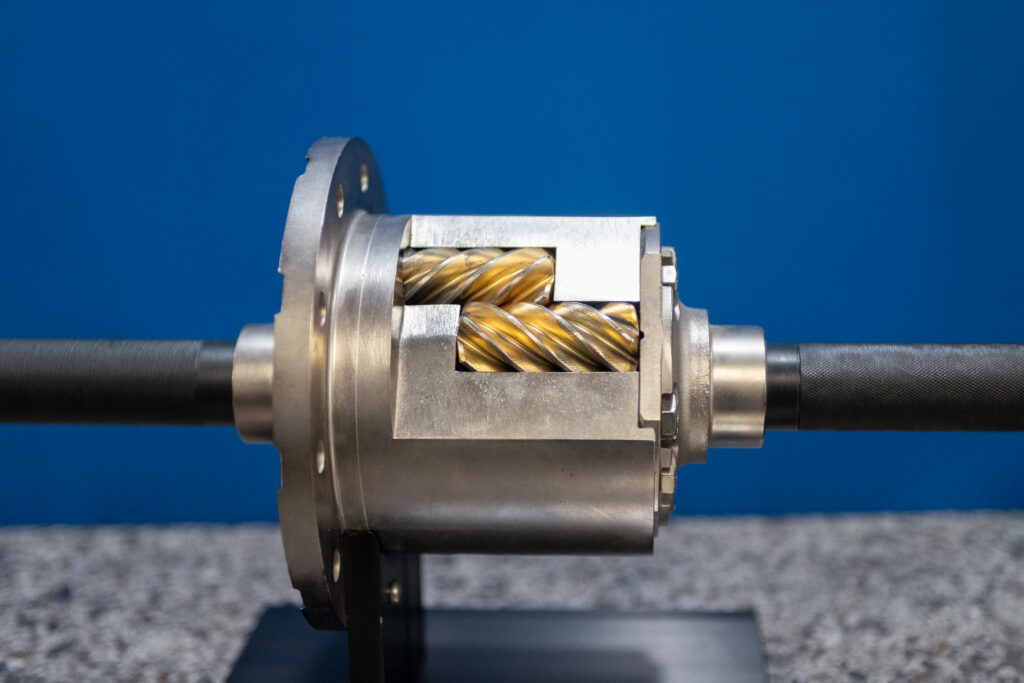

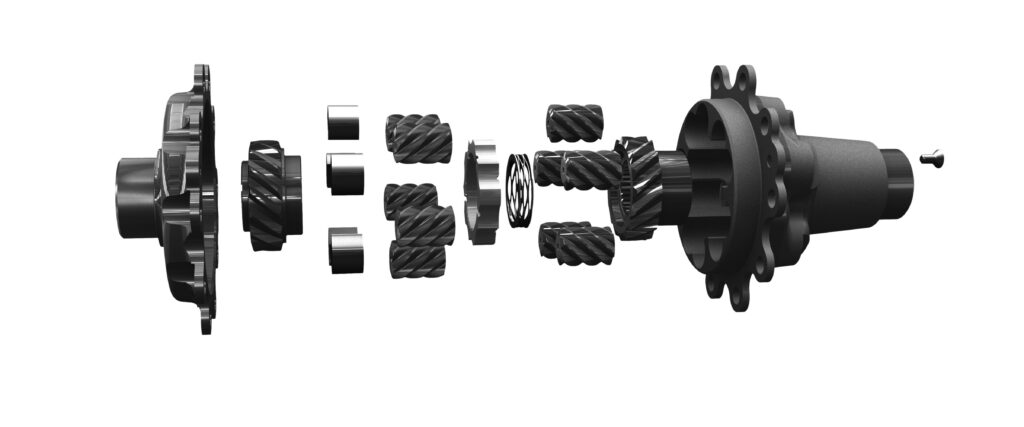

Another popular variant is the helical LSD, known for its seamless transfer of torque without relying on clutch packs. The Truetrac, a helical-style design produced by Eaton, is notable for its versatile performance, adapting well to driving conditions and offering a smooth engagement of torque bias. It stands as a more efficient choice for everyday vehicles, especially for those that need to navigate both urban and recreational settings.
Locking Differentials: Maximum Torque for Challenging Terrains

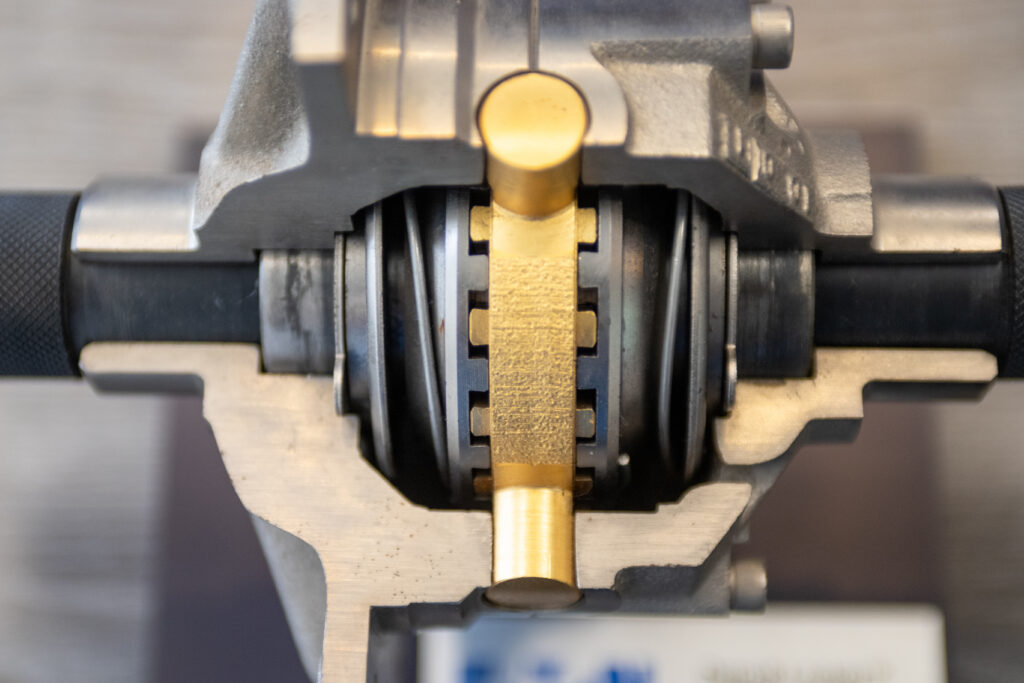

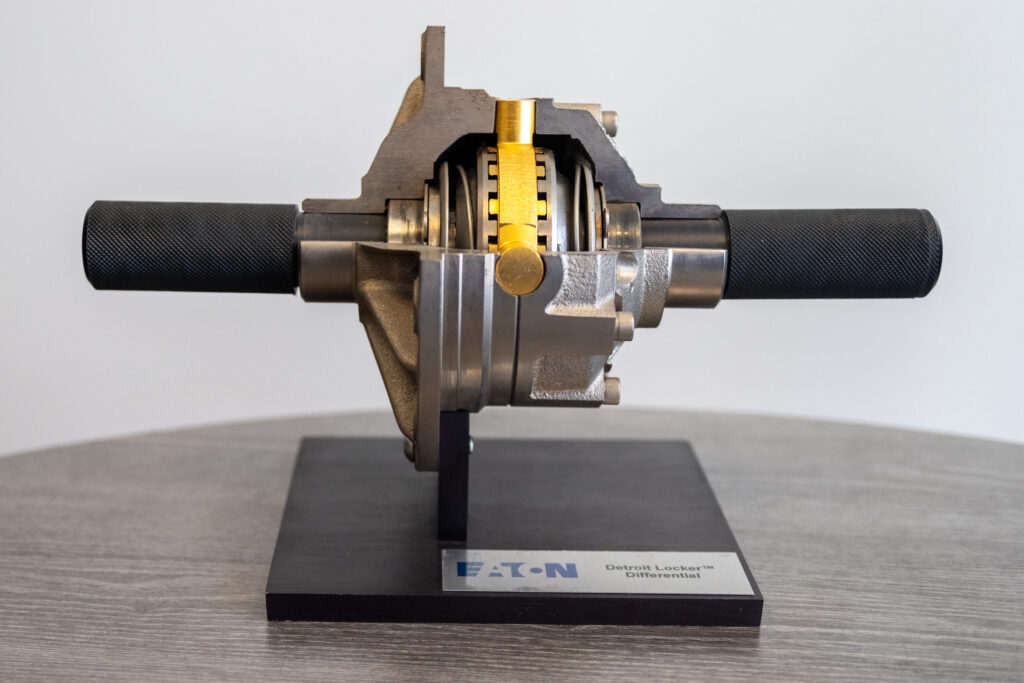

Locking differentials provide a solution when maximum traction is required. Unlike limited-slip units, locking diffs — such as Eaton’s Detroit Locker — are engaged automatically based on differential wheel speeds, delivering power equally to both wheels. Originally designed for heavy-duty applications, the Detroit Locker is popular in motorsport, rock crawling, and mudding due to its robust performance under extreme conditions.

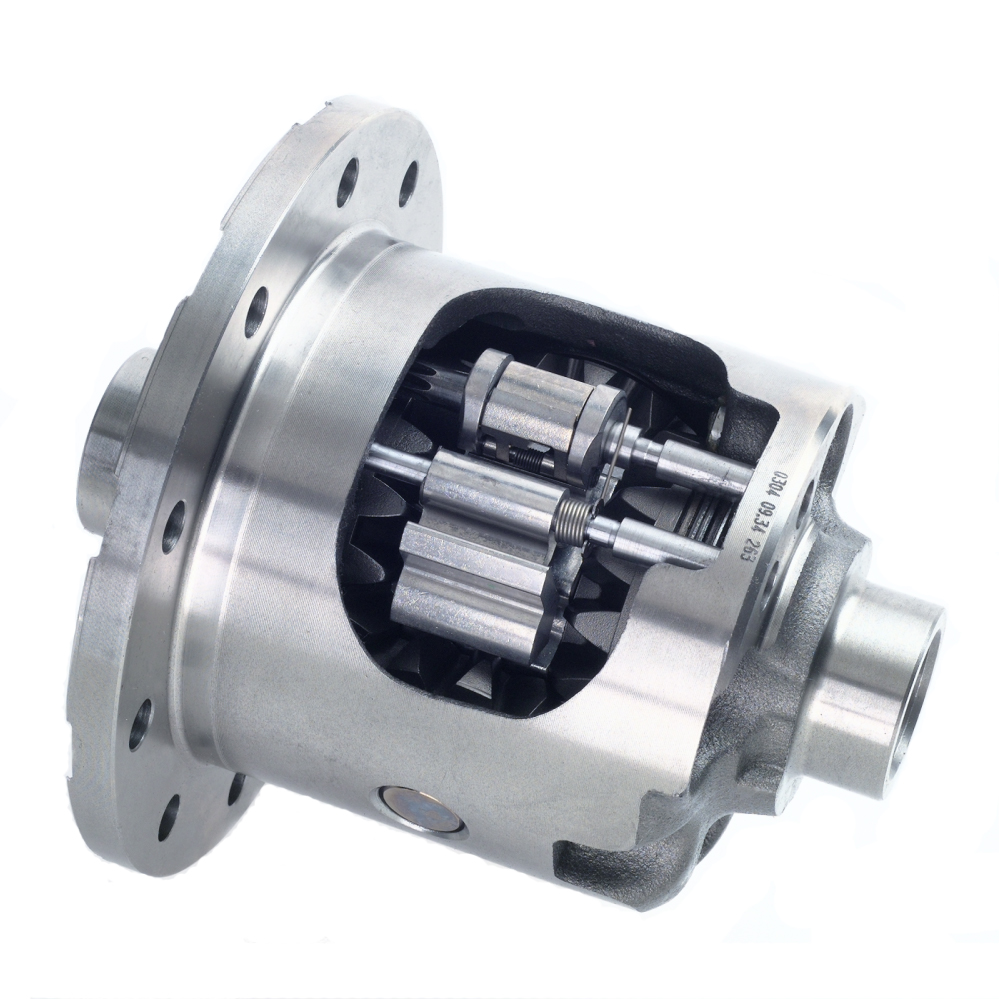

The MLocker, meanwhile, caters to light-duty applications with a speed-sensitive locking mechanism that functions below 20 mph. This system employs flyweights and springs to engage the lock automatically, ensuring optimal performance across a range of everyday driving scenarios. Notably, it behaves like a limited-slip differential when not engaged, making it a versatile choice for drivers seeking low-maintenance solutions.
Modern Locking Differentials: The Role of Technology

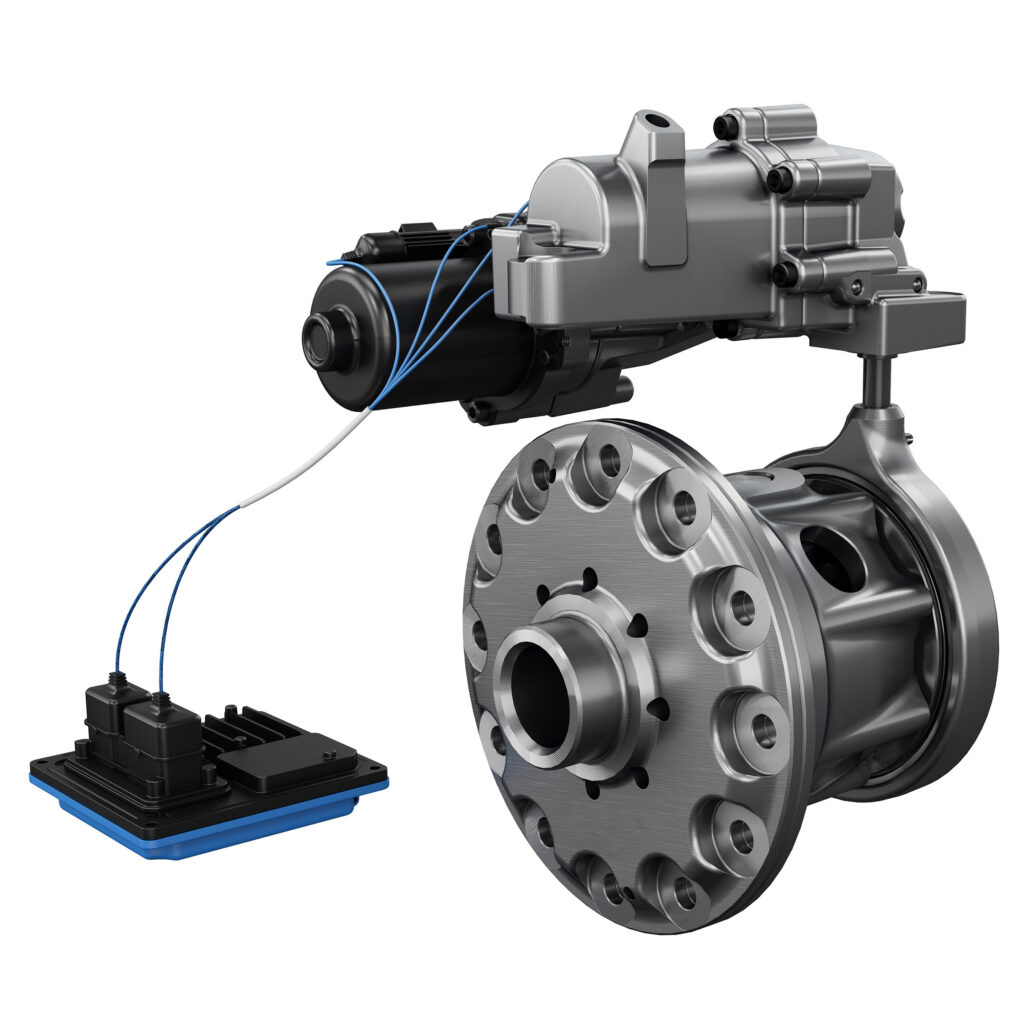

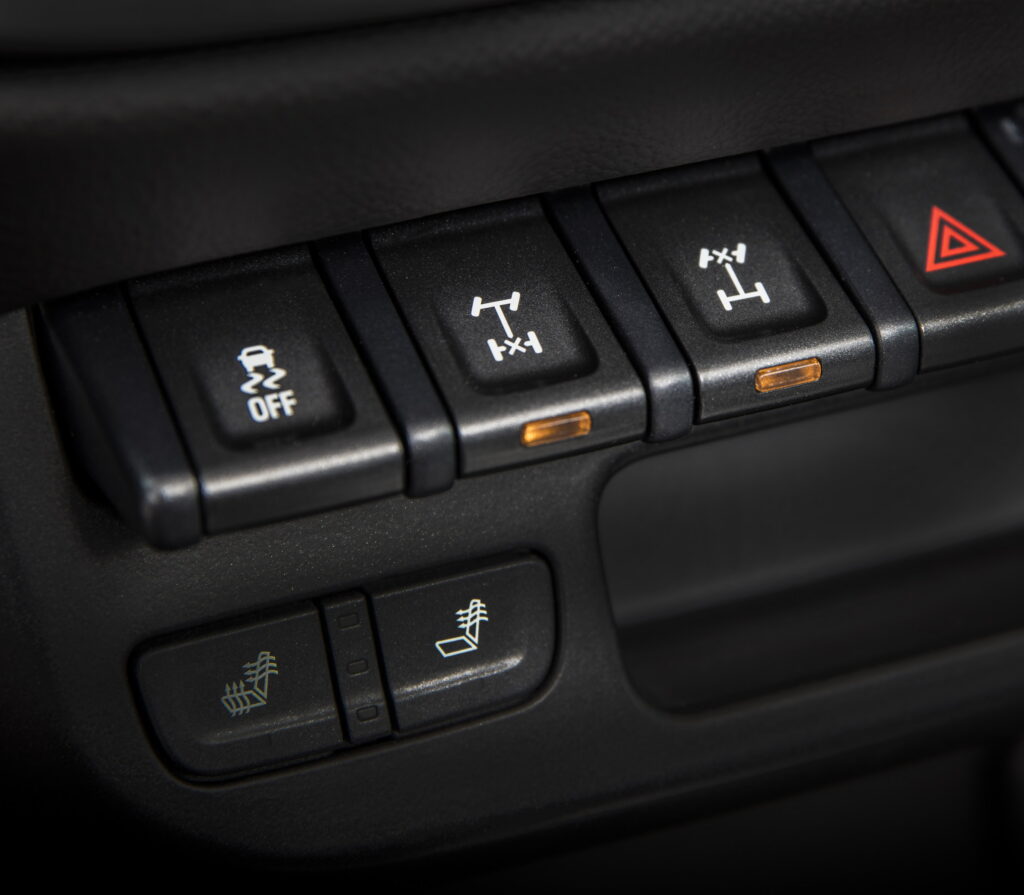

Eaton is also pioneering the integration of electronics into differential systems with its ELocker, which can be actuated via an electronic signal. This e-locker approach allows drivers to engage the differential at will, optimizing performance based on real-time driving conditions. Similarly, electronic limited-slip differentials (eLSD) incorporate hydraulic systems for precise torque distribution and improved handling dynamics in performance vehicles.
The adaptability of these modern systems provides an edge in performance tuning, enabling seamless integration with other vehicle technologies. For instance, the eLSD in the C8 Chevy Corvette enhances handling under various drive modes, signifying a shift towards more sophisticated mechanics in driving dynamics.
In conclusion, understanding the various types of differentials — from traditional open designs to electronic innovations — is key for drivers and automotive enthusiasts alike. As manufacturers continue to refine their technology, expect to see further advancements that enhance safety, performance, and the overall driving experience. Should you be curious about more technical discussions surrounding differentials or specific applications, don’t hesitate to share your interests in the comments.
