Discover the history, advantages, and practical assembly tips for AN fittings, essential components for automotive fluid management systems.

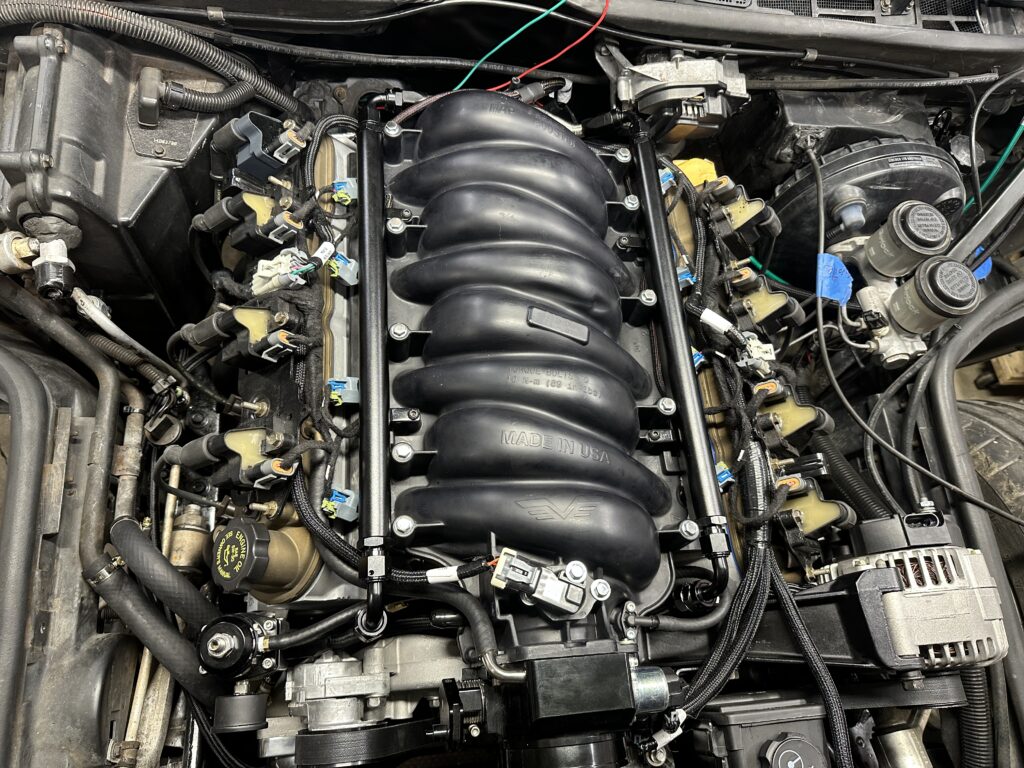

When plumbing fluids in a vehicle’s engine compartment, many enthusiasts opt for AN fittings and hoses due to their unique features. These colorful swivel ends and braided stainless hoses stand out in a car's setup, providing both functionality and aesthetics. But there's more to AN fittings than meets the eye, making them a popular choice in various automotive projects.
Origins and Naming
Here's an interesting fact: AN fittings aren’t a branded product but rather a standardized design that emerged from cooperation between the Army Air Corps and Navy during World War II. The encoded “A” and “N” in their name signify this collaboration, which aimed to create serviceable, interchangeable hose fittings suitable for aircraft. The post-war era saw a surge in their popularity as returning servicemen began using them in their home projects, often finding them readily available at low costs from surplus supplies. However, as military stock dwindled, various manufacturers began producing these fittings, which means compatibility can sometimes be affected by differences in production tolerances across brands.
Advantages of AN Fittings
One striking benefit of AN fittings is the ease of maintenance they provide, especially crucial for high-maintenance vehicles like race cars. Unlike traditional hoses that may feature clamps, resulting in potential leaks or breakage, AN fittings create reliable, leak-free seals with just a wrench twist. Additionally, for those choosing braided stainless steel, the benefits extend to enhanced abrasion resistance compared to standard rubber hoses.
These fittings use a flared union design with a 37-degree angle, differing from the 45-degree angle used in most other flare fittings. This specific angle means you can only pair AN fittings with other AN counterparts, though adapters are widely available to bridge gaps in compatibility.
Diverse Options Available

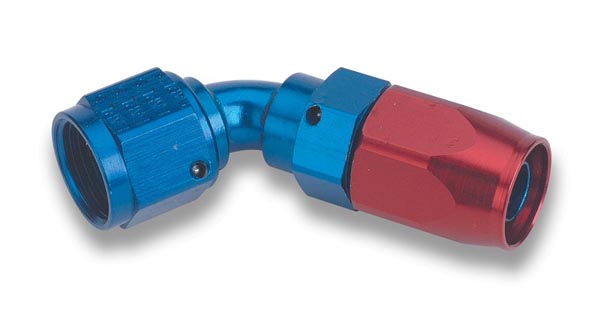

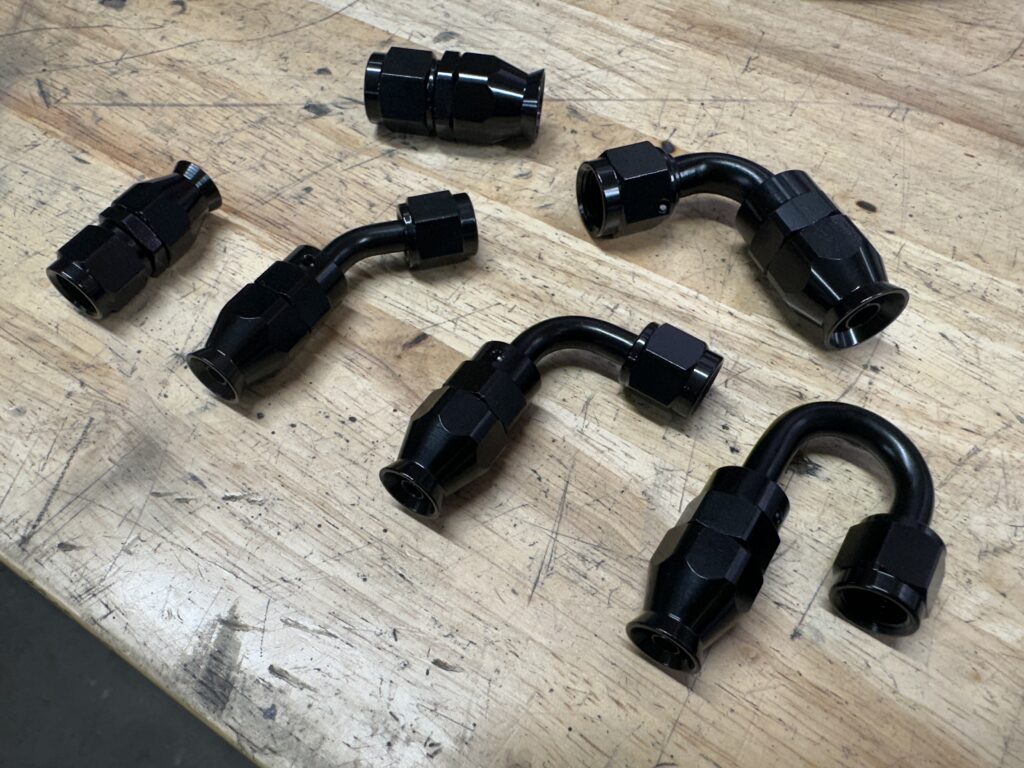

The versatility of AN fittings is impressive. They come in a myriad of shapes, sizes, and angles, allowing for tailored installations that optimize both functionality and aesthetics. Straight fittings are common, but a range of angle options enable organized routing along tight spaces. On the downside, high-quality fittings are often constructed from machined aluminum, which elevates costs that might be challenging for budget-conscious builds. While AN lines can certainly enhance durability and usability in the long run, it’s important to consider how many fittings your project requires, especially since you'll need two ends for every line.
Simple Size Conversion

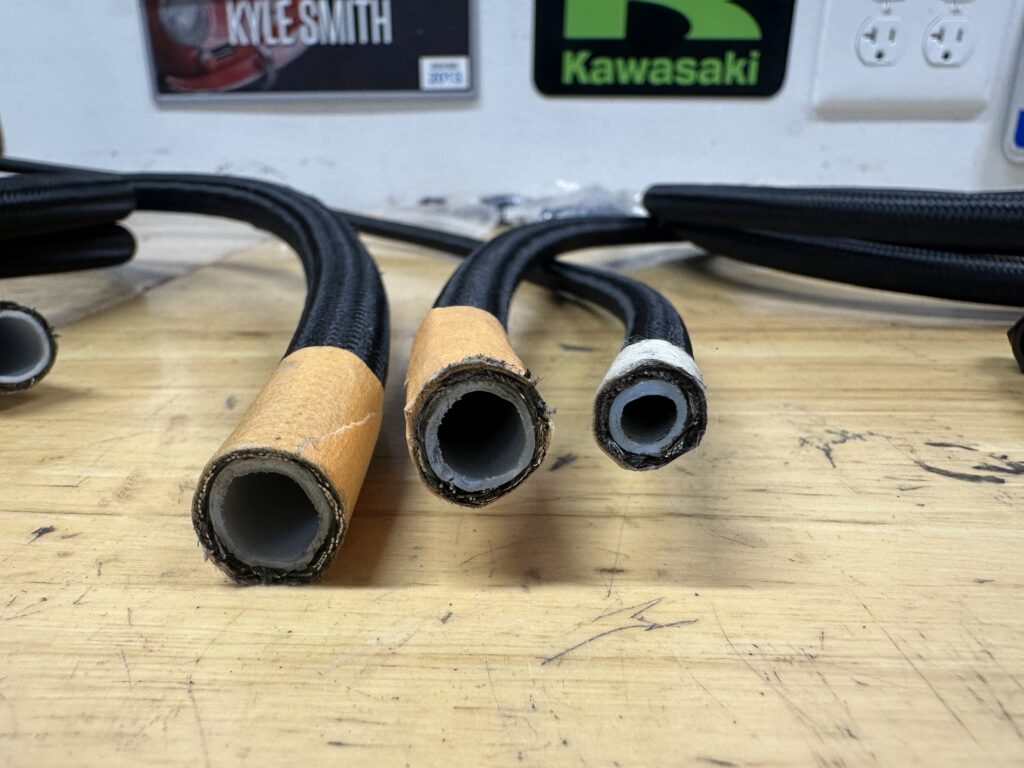

Understanding AN fitting sizes can often be a point of confusion, particularly when it comes to the “dash” system used to indicate size. Each “dash” number refers to the internal diameter of the line in increments of 1/16". For example, a -8 fitting has a 1/2" internal diameter, while a -12 fitting indicates a 3/4" diameter. This straightforward translation makes it easy to determine the appropriate size without needing complicated calculations.
Assembly Considerations

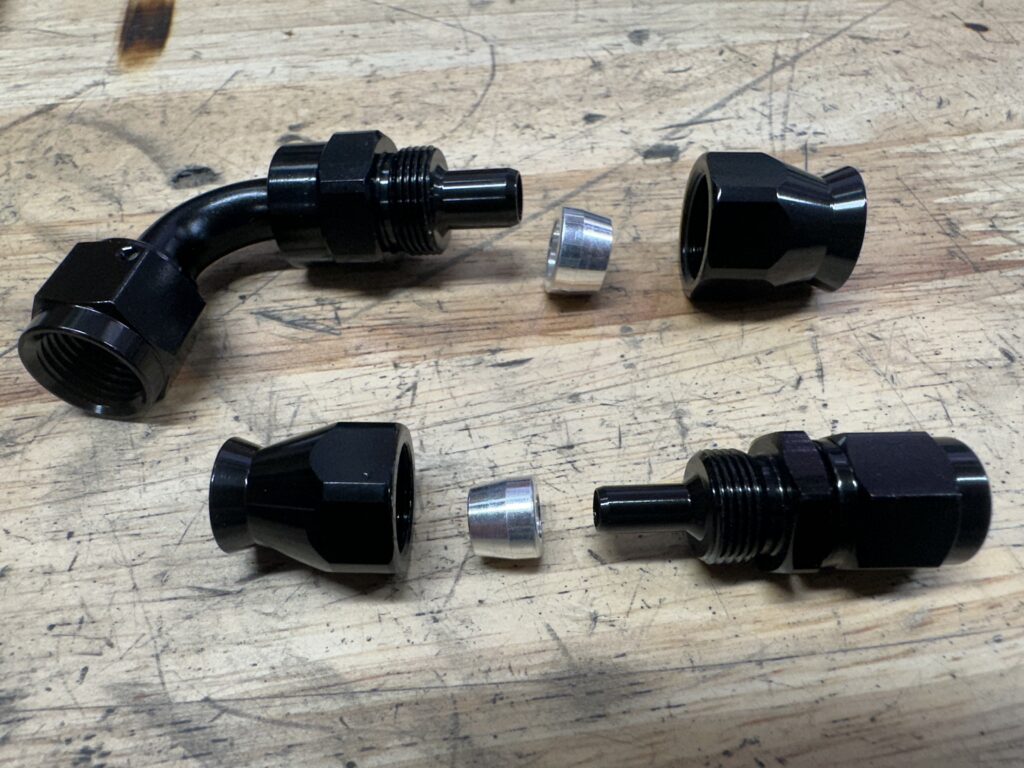

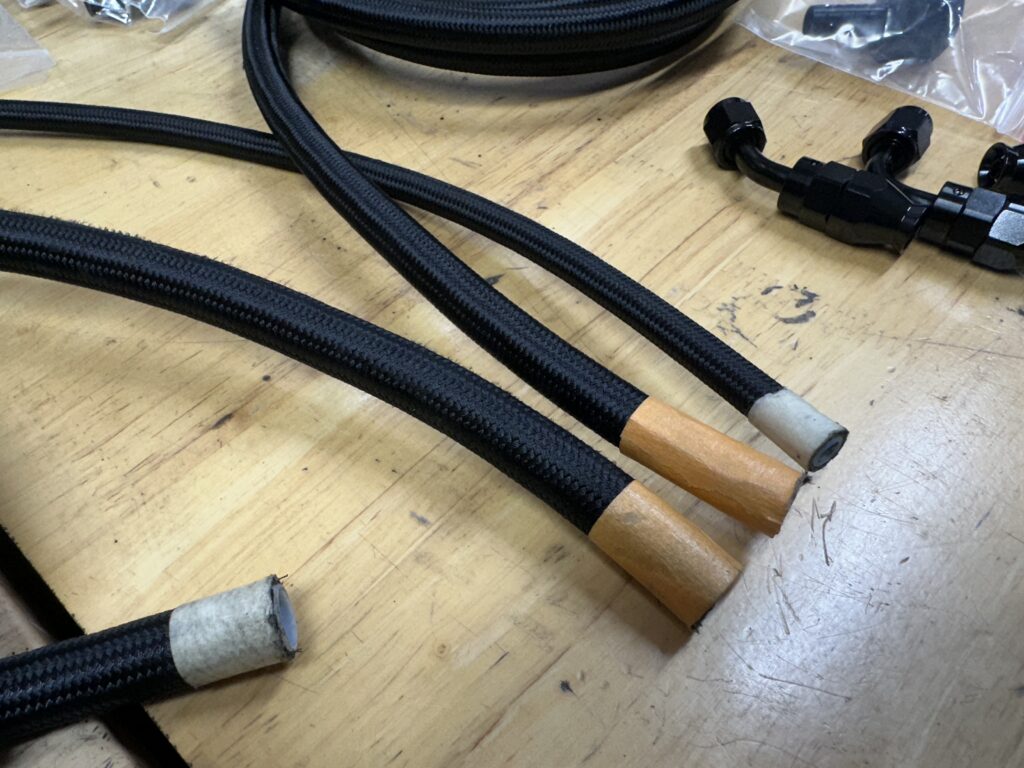

While AN fittings offer several advantages, their assembly can be more labor-intensive than simply cutting a rubber hose and securing it with a clamp. The braided design necessitates a clean, straight cut, typically achieved with a saw or cutoff wheel, followed by flushing the hose to remove any debris that could contaminate the system. Once the hose is cut to the required length, you slide it into the fitting. The braid needs to be expanded outward to accommodate an 'olive' or ferrule, which ensures a reliable seal between the threads upon tightening. Applying a small amount of lubricating oil to the threads can also facilitate a better connection.
Proper assembly according to the manufacturer’s guidelines is crucial. Each brand might have specific instructions regarding the correct tightness, so it's wise to consult any provided specifications to ensure a leak-free result.
AN fittings can elevate your project with their practical and polished designs. If you've hesitated to use these fittings due to uncertainty, hopefully, this overview clarifies their value and application. They're particularly useful in custom builds or for any vehicle exposed to frequent servicing. With their durability, straightforward connections, and versatility, AN fittings remain a go-to choice for automotive enthusiasts and professionals alike.
