The Offenhauser engine, known as the Offy, ruled American racing for decades with unmatched reliability and innovation. Its legacy and technical prowess shaped the sport.
In an era where trends come and go at a breakneck pace, the Offenhauser engine, commonly referred to as the Offy, stands as a testament to enduring excellence in motorsport. Its unyielding dominance on various circuits, from the renowned Indianapolis Motor Speedway to local bullrings, can be attributed to a unique blend of technical ingenuity and timely innovation. The Offy became synonymous with success at a time when road racing faded into the background, and oval-track racing seized the limelight in American motorsports.
Mario Andretti, one of the most revered figures in motorsport history, reflects on his experiences with the Offy: “I won three features in one day in an Offy-powered midget—Labor Day in 1963. Later, when they turbocharged the Offy, before they put a limit on the [boost] pressure, you could just wind the sh*t out of it. It was a characteristic of that engine that it could withstand it. I mean, look at how reliable it was, for so many seasons, over so many decades. OK, sure, you blew an engine now and then. But if you rebuilt the engine in the proper time frame, you could run it forever, and that reliability factor was something that wins you championships. So yeah, it was hard not to love that engine.”
The Birth of the Offenhauser Engine

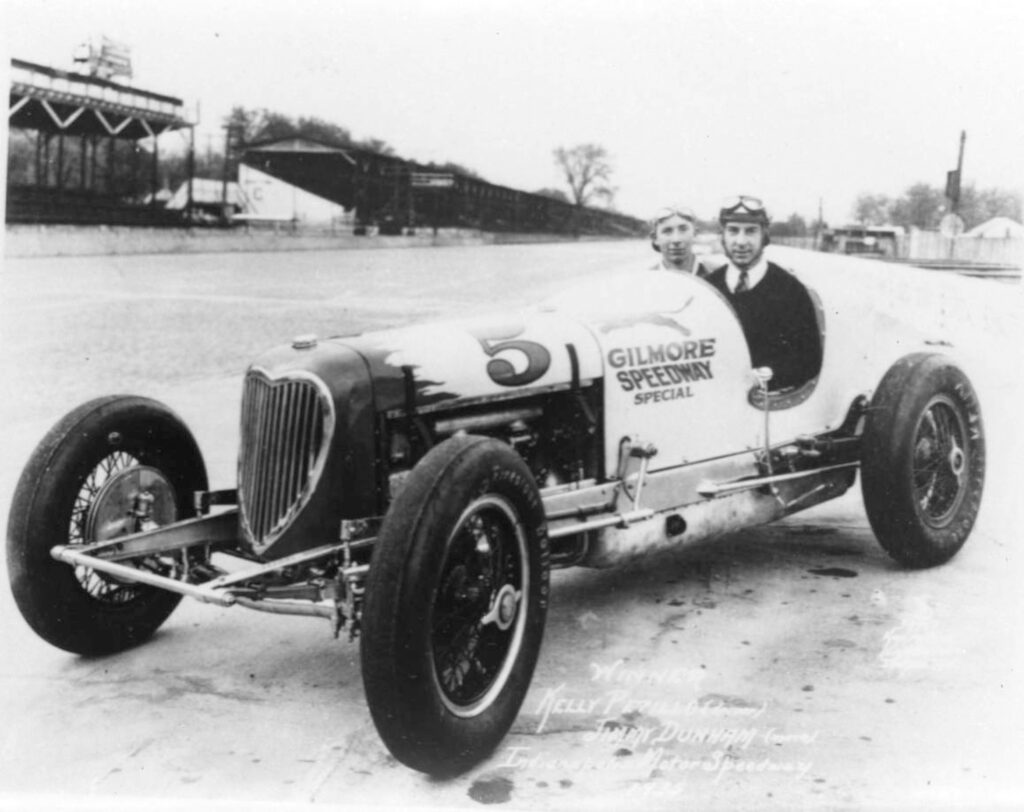

The Offy traces its roots back to its namesake, Fred Offenhauser, a master machinist who opened his own workshop in South Central Los Angeles in 1933. Initially, Offenhauser focused on rebuilding truck engines to stay afloat. However, in 1934, he began manufacturing four-cylinder race engines, which quickly earned him a respectful reputation in the racing community. The first of these engines debuted at the Indy 500 the following year, where Kelly Petillo powered to victory, marking the beginning of the Offy legacy. This initial engine produced around 250 horsepower from a 260 cubic inch displacement, allowing Petillo to qualify at a speed of 115.095 mph.
From Dominance to Innovation

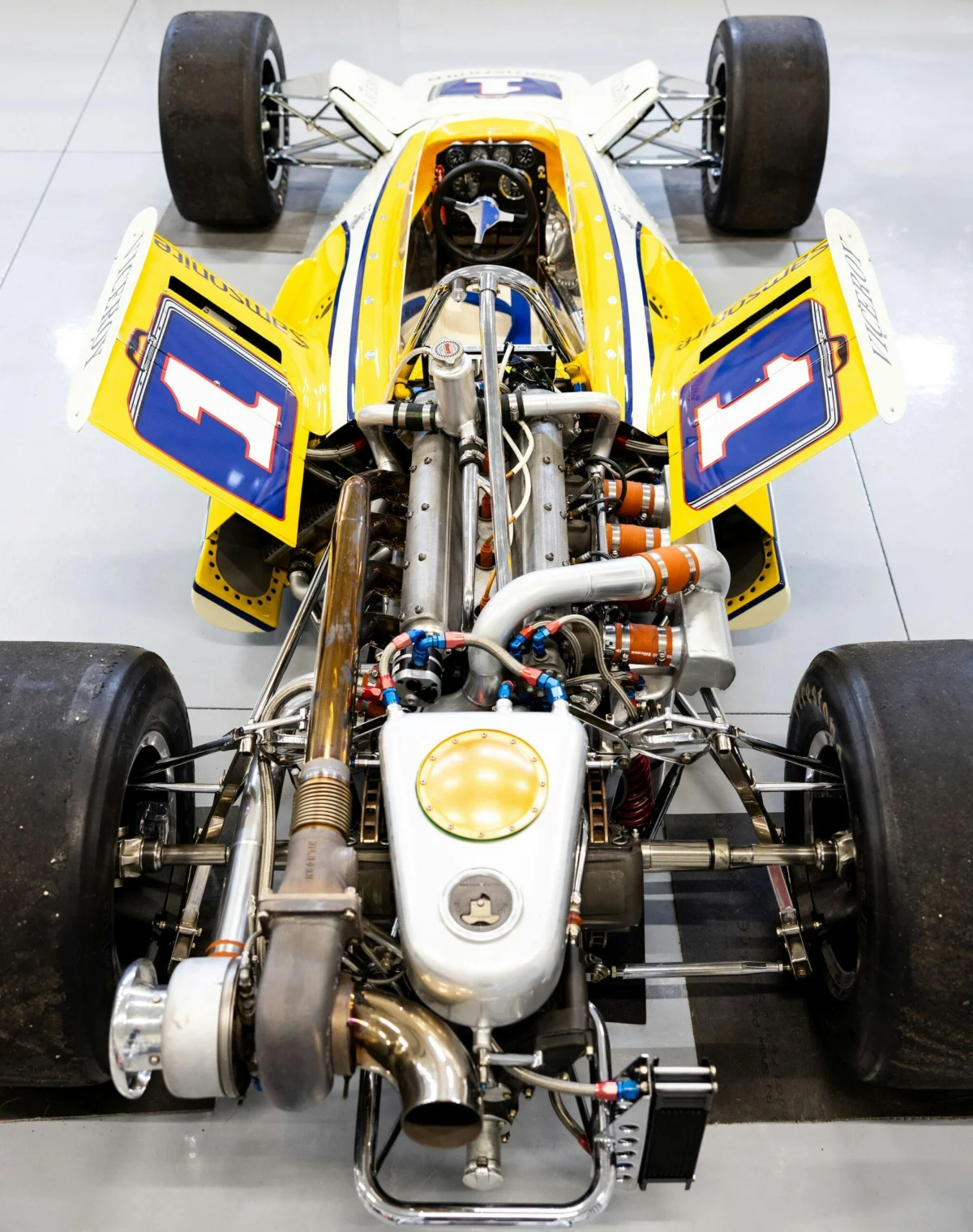

Fast forward nearly five decades, and the Offy was still a formidable force on the racetrack. The introduction of turbocharging enhanced its power potential, with Johnny Rutherford piloting a turbocharged version of the 159-cubic-inch Offy to a groundbreaking lap time of 200 mph during a practice session for the 1973 Indy 500. He eventually secured the pole position with a record-breaking qualifying speed of 198.413 mph.
Roger Bailey, an engine builder closely involved with the Offy, stated, “We had a 120-inch manifold pressure gauge, and we bent the needle. Our Heenan & Froude 490 dyno pegged out at 1350 horsepower, and that engine on the dyno went way past that. We’ll never know the true horsepower. But Rutherford always said that he could spin the wheels on the short chute at the Speedway.” The Offy exemplified a long stretch of dominance in American open-wheel racing, winning all but one Champ Car race from October 1946 to August 1963. The engine displayed unparalleled reliability, even in high-stakes scenarios.
Challenges from Rivals and Technological Evolution
Over the years, the Offy faced stiff competition from engines like the Sampson V-16, various Fords, and the legendary Cosworth DFX. The arrival of the Cosworth DFX, as well as the gradual transition of Indy racing from ovals to road courses, significantly affected the Offy’s performance. Despite its illustrious history, rule changes surrounding fuel allotments and manifold pressure significantly hindered the Offy's performance, effectively limiting its dominance in the sport.
Engine builder Stewart Van Dyne reflected on the Offy’s decline, attributing it primarily to changing regulations: “Rules. Sad but true. Here’s the story behind how it happened.” The Offy was designed during a time of unrestrained creativity and engineering experimentation when competitors were free to innovate without the constraints that characterize modern motorsport.
A Design That Mattered: Features of the Offy

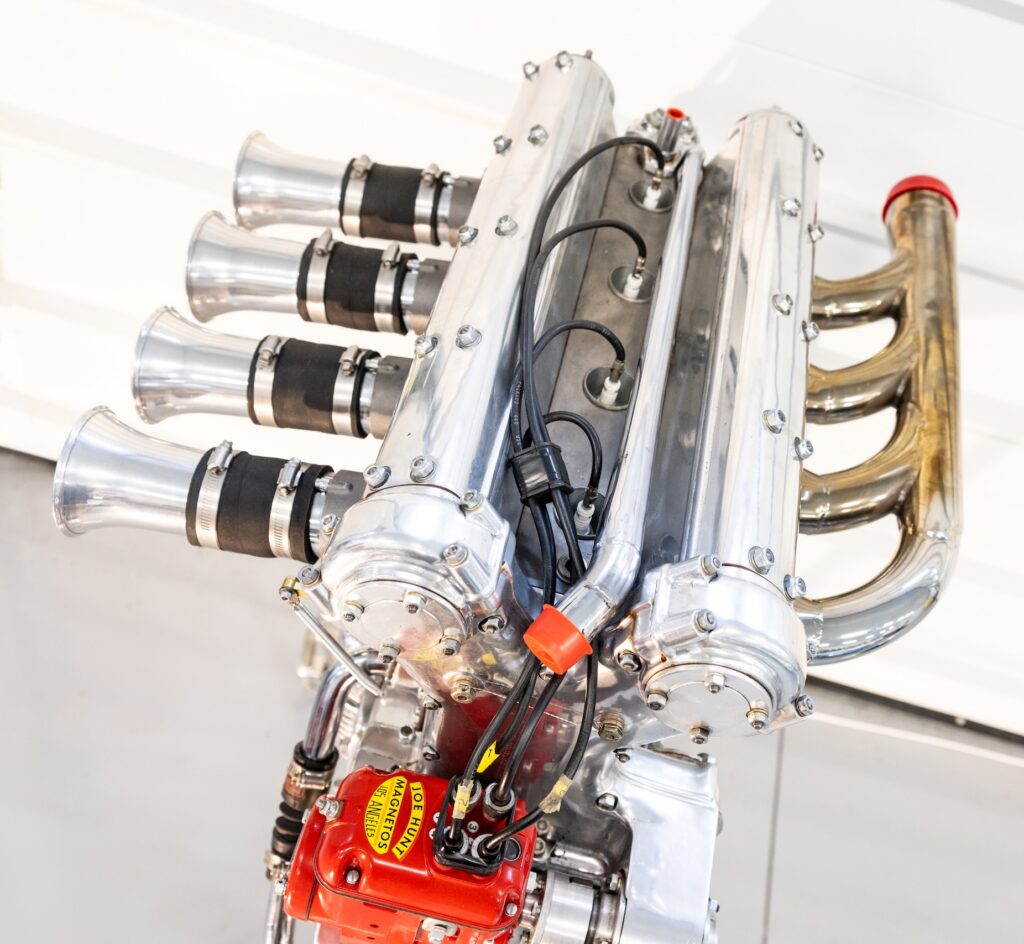

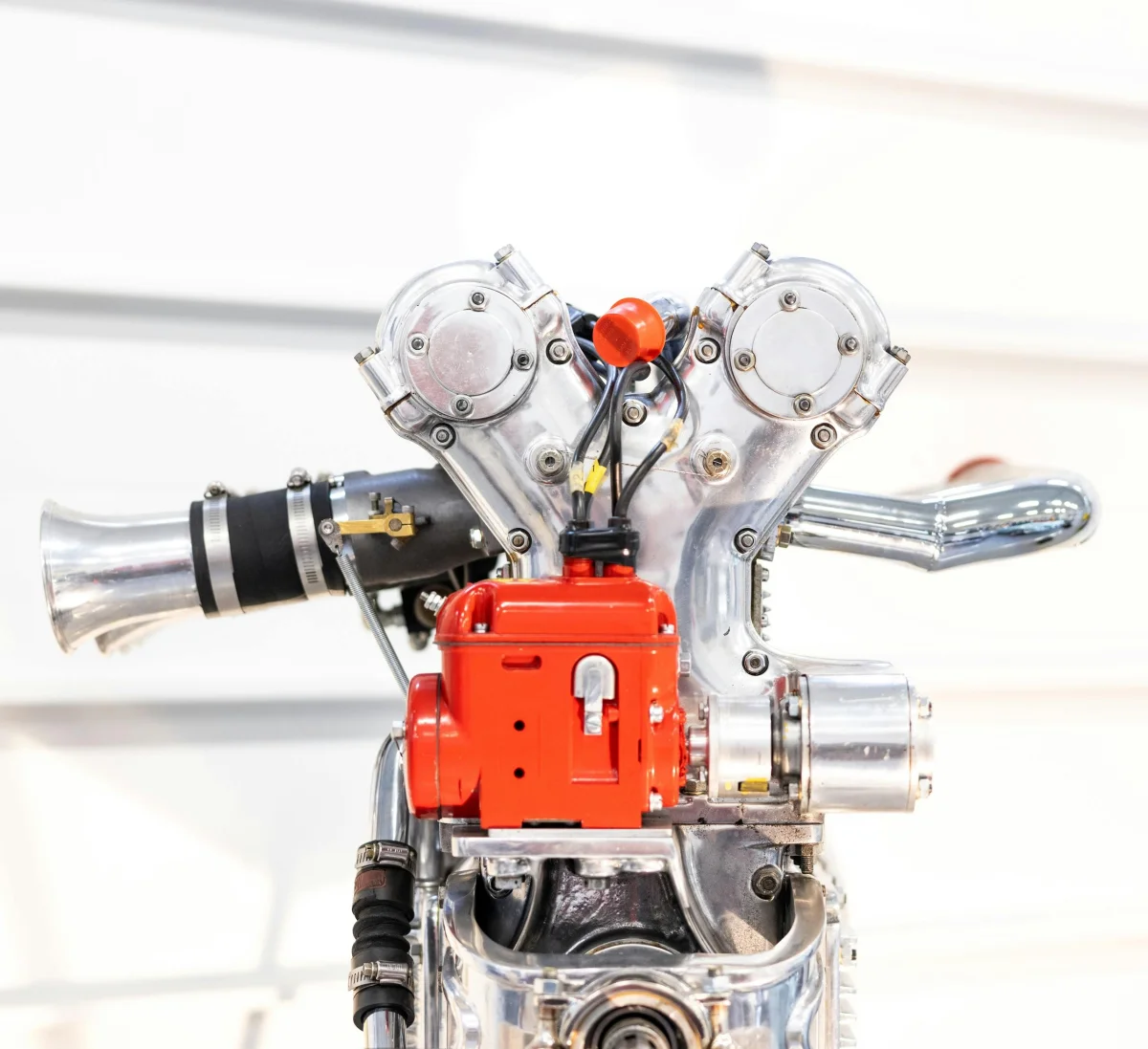

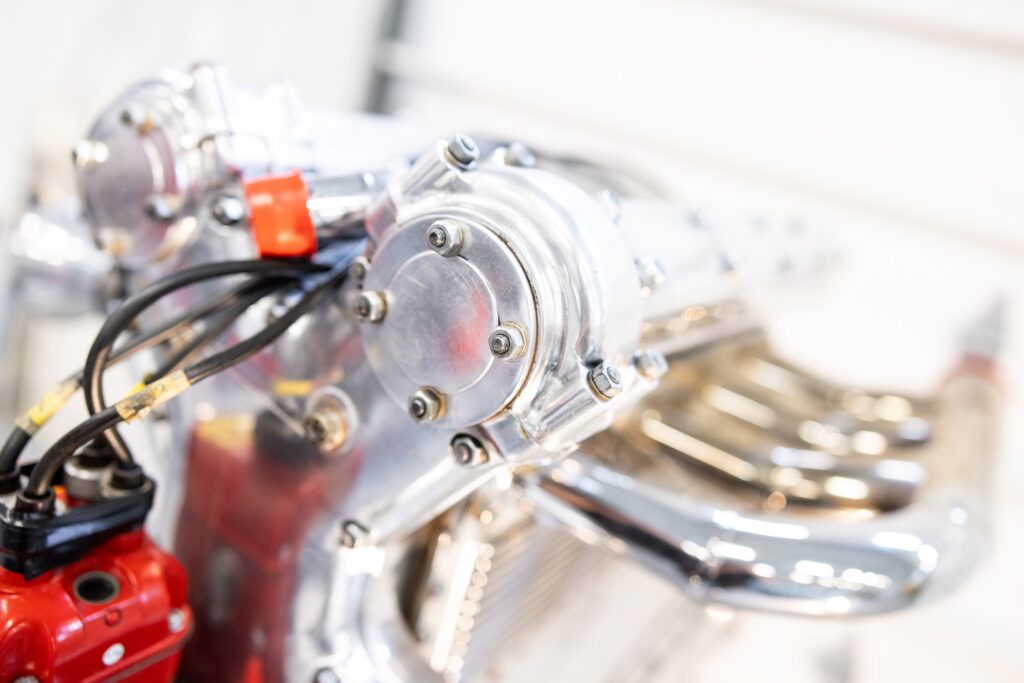

Despite numerous upgrades over the decades, the essence of the Offy remained remarkably consistent. Its last official race occurred at Pocono in 1982, where the engine showcased its distinctive design of a tall, narrow Y-shaped powerplant that mirrored its earlier iterations. Key features of the Offy included a pair of slender cam boxes shrouding overhead camshafts, an integrated block and head to eliminate head-gasket failures, and a barrel-shaped aluminum crankcase that contributed to its impressive strength. These features set the Offy apart as a reliable workhorse capable of withstanding the rigors of racing.
This integrated design proved beneficial in eliminating gasket-related failures, particularly significant during an era when materials were less advanced than today. The crankcase of the Offy utilized a one-piece design, enhancing durability in scenarios with extreme cylinder pressure. The robust construction allowed the Offy to thrive even when pushed to its mechanical limits, accommodating the substantial boost levels achieved when turbocharged.
The Offy as a Practical Engine in Racing
The Offy became known as a "tractor engine more than a race engine," a description that summarized its robust build. Jim McGee, a former crew chief, noted, "It was a big, heavy motor with big, heavy parts, and it didn’t turn too fast. But it was reliable and cost-effective." The Offy engine required far less frequent rebuilding compared to many of its counterparts in the racing sphere, often allowing teams to complete multiple races before a rebuild was necessary. This reliability translated into significant advantages in both cost and performance for teams operating on smaller budgets.
Mechanics found that although the Offy required specific expertise and techniques for maintenance, its overall design favored engineers and racers alike. The unique monoblock design, for instance, eliminated the need for traditional head bolts and gaskets, enhancing sealing capabilities and simplifying conditions for maintenance. Despite its quirks, such as a challenging crankshaft installation process, the Offy provided mechanisms that made it a favorite among racers during its peak.
The Offy Today: A Cultural Icon
The Offenhauser engine revolutionized the world of racing with its unique combination of performance, durability, and innovative engineering that made it so successful. From its debut in the 1930s until its last races in the early 1980s, the Offy left an indelible mark on the world of motorsports, and its influence continues to resonate in contemporary engineering practices. Engaging stories about racers inspired by Offys abound in historical racing accounts across the U.S., upholding the reputation of the resilient four-cylinder engine.
As evident through the words of car historians and former drivers, the Offy engine embodies more than just numbers and trophies. It signifies a golden age of American racing innovation and craftsmanship that many regard with nostalgia and respect. The Offy, born from a combination of ingenuity and necessity, was certainly the engine for its age—one that carved out a legendary space in the pantheon of motorsport history.
“The normally aspirated engine was nearly bulletproof if maintained well and not too badly abused,” historian Gordon Eliot White notes in his book on Offenhauser, aptly capturing the essence of its heritage. “It was the engine for its age.” Now, decades after its final appearance, the Offy remains a beloved model of what American ingenuity can achieve in the world of high-performance racing.
Special thanks to engine owner Chuck Jones and builder Dan Webb.
