The landscape of EV battery design is evolving, with a focus on thermal management and advanced materials to enhance safety, performance, and efficiency.
As electric vehicle (EV) technology advances, the focus on battery design is shifting dramatically. Automakers face increasing pressure to improve driving range, reduce costs, and enhance safety all while adhering to sustainable manufacturing practices. Remarkably, achieving these objectives extends beyond simple advances in battery chemistry; it requires revolutionary changes in battery architecture and the innovative materials that support these structures.
The Shift in Battery Architecture
Traditionally, electric vehicle batteries adhered to a cell-to-module design. This architecture involved assembling individual cells into modules, which were then combined into a larger battery pack. While this configuration allowed for easier maintenance—facilitating the replacement of faulty modules without dismantling the entire system—it also introduced extra weight, consumed valuable space, and added to production complexity.
To meet stringent efficiency and range demands, manufacturers are progressively transitioning to cell-to-pack designs. By removing the module enclosures and integrating the cells directly into the battery pack, manufacturers create lighter systems that can accommodate more active material within the same footprint. This strategy significantly enhances energy density and extends driving range.
The latest advancement is the adoption of cell-to-chassis designs. Here, the battery cells are integrated directly into the vehicle's structure, further reducing weight and simplifying manufacturing. However, this integration imposes higher demands on the materials used to hold the battery together, necessitating that they provide not just structural support, but also effective thermal management, electrical insulation, and safety under extreme conditions.
The Critical Importance of Thermal Management
Higher energy density batteries yield clear performance benefits, but they also introduce significant thermal challenges. With cells packed tightly and increasing power demands, a considerable amount of heat is generated during both charging and operation. Excessive heat can accelerate battery degradation, diminish efficiency, and heighten the risk of thermal runaway incidents. Thus, controlling temperature has become essential—not just a design challenge but a fundamental requirement for performance, safety, and reliability.
This scenario heightens the demand for innovative thermal management strategies, alongside materials capable of efficiently managing heat transfer while protecting sensitive components. Adhesives and encapsulation materials are increasingly expected to fulfill these dual roles, combining structural integrity with thermal performance.
The Evolving Role of Flame-Retardant Foams

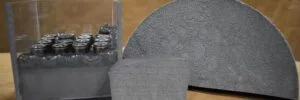

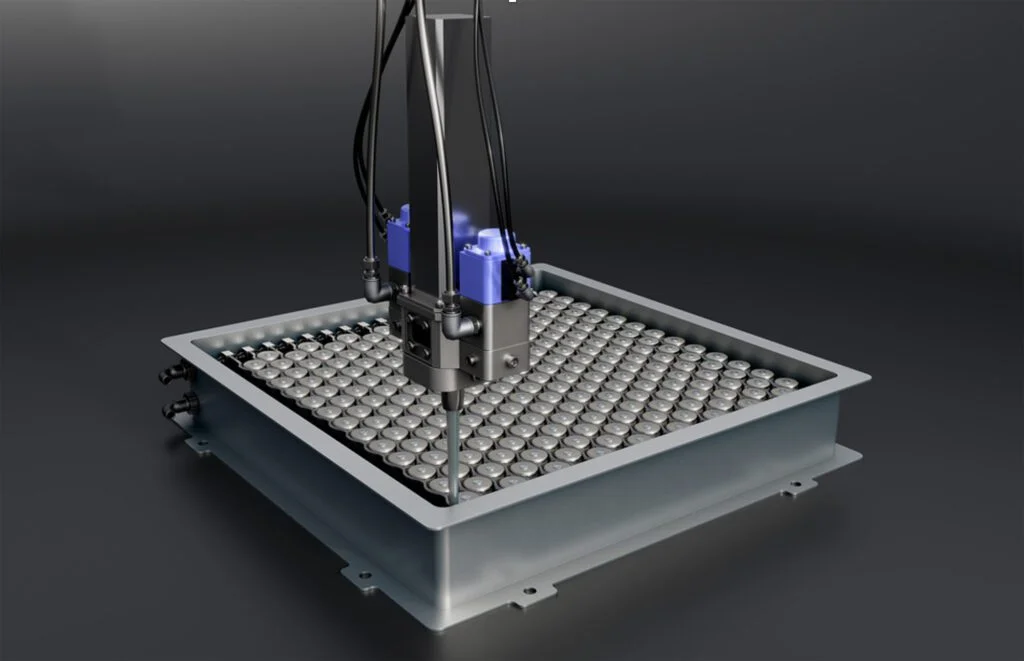

Among the most notable advancements are structural flame-retardant foams. Initially employed solely as safety materials, these foams have evolved to play multifaceted roles within battery designs. They assist manufacturers in achieving weight reduction by replacing heavier mechanical supports and plastic components while simultaneously providing essential structural reinforcement throughout battery assemblies.
In contemporary battery architectures, these foams serve multiple critical functions including:
- Mitigating thermal runaway propagation
- Reducing overall battery weight
- Providing necessary structural support
- Enhancing resistance to vibration
- Improving thermal insulation and maintaining temperature uniformity
- Simplifying manufacturing processes for batteries
For original equipment manufacturers (OEMs) pursuing cell-to-pack and cell-to-chassis configurations, such benefits are invaluable. These structural foams allow for the removal of mechanical components without compromising the safety or integrity of the battery, thus unlocking higher energy densities.
Prioritizing Thermal Runaway Protection
As battery systems become denser, the ability to contain thermal events is becoming increasingly critical for designers. The selection of materials that can effectively mitigate thermal runaway has become a key concern. High-performance flame-retardant foams are specifically engineered to delay or prevent thermal propagation, thus ensuring that localized heat events do not escalate into widespread failures within a battery pack.
Manufacturers reference flammability performance standards, such as UL94, to validate the effectiveness of their materials. These benchmarks help ensure materials have properties that promote rapid self-extinguishing capabilities and minimized flame spread—critical traits that bolster confidence in overall system safety as regulatory and consumer expectations evolve.
Preparing for the Future of Battery Applications
The future of battery technology extends well beyond personal vehicles. Battery energy storage systems (BESS), commercial transport fleets, off-highway machinery, heavy-duty trucks, and new electric aviation sectors face similar dilemmas: achieving a delicate balance between performance, safety, weight, and durability. Each application presents unique challenges, but they collectively require materials that provide robustness while also supporting thermal management and fire protection.
As battery technologies continue to evolve, manufacturers will benefit from collaborating with partners who possess deep material expertise and a comprehensive understanding of how those materials function within integrated battery systems. Early-stage partnerships between battery designers and material specialists can lead to optimized designs, reduced production timelines, and avoidance of costly challenges down the line.
A Material-Centric Approach to EV Advancements
The future landscape of electric vehicle performance will be increasingly shaped by the effective integration of advanced materials within battery designs. From structural adhesives and thermal interfaces to flame-retardant foams and thermal barriers, material innovation is emerging as a fundamental driver of battery development.
As the industry pushes forward towards high-performance battery systems, prioritizing thermal management in design processes has transitioned from being merely advantageous to absolutely essential. This focus on materials not only enhances the performance and safety of batteries but also paves the way for the expansion of electrification in diverse applications.
Choosing the Right Materials
Not all foams or foam providers are equal. Selecting the best flame-retardant foam for applications ranging from BESS to electric vertical take-off and landing (eVTOL) or standard EV batteries hinges on understanding specific requirements. Factors such as expertise, product performance, and support from foam providers are fundamental to ensure optimal outcomes. H.B. Fuller, for instance, offers an array of advanced flame-retardant foams tailored for diverse applications in the automotive and energy sectors.
For more information on H.B. Fuller’s offerings in the electric vehicle market, visit hbfuller.com/electric-vehicles.
